Home
>>
Oldsmobile
>>
1987
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

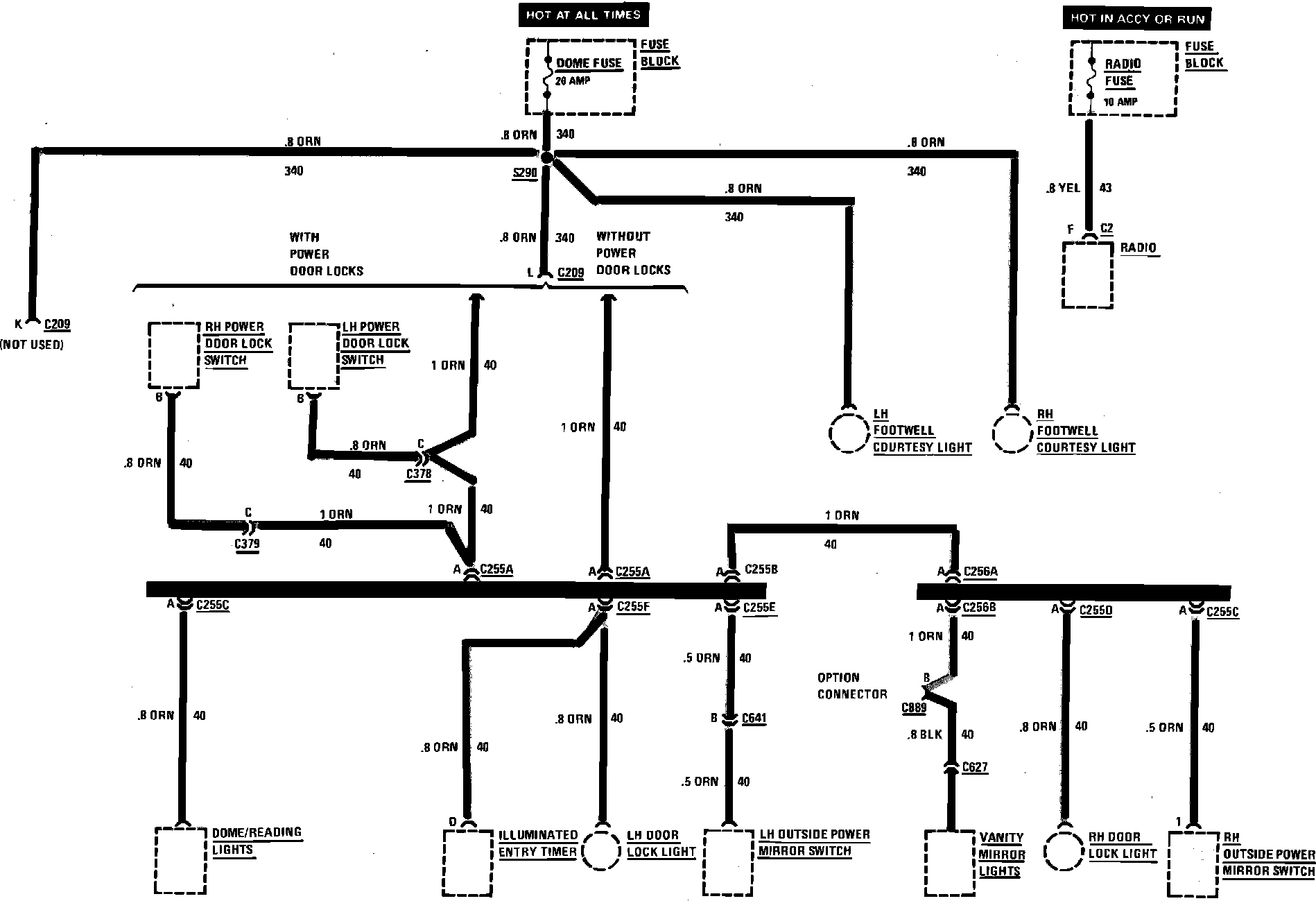

Dome Fuse & Radio Fuse
Dome Fuse & Radio Fuse
Fuse Block Details (Dome Fuse & Radio Fuse):
