Oldsmobile
>>
1987
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

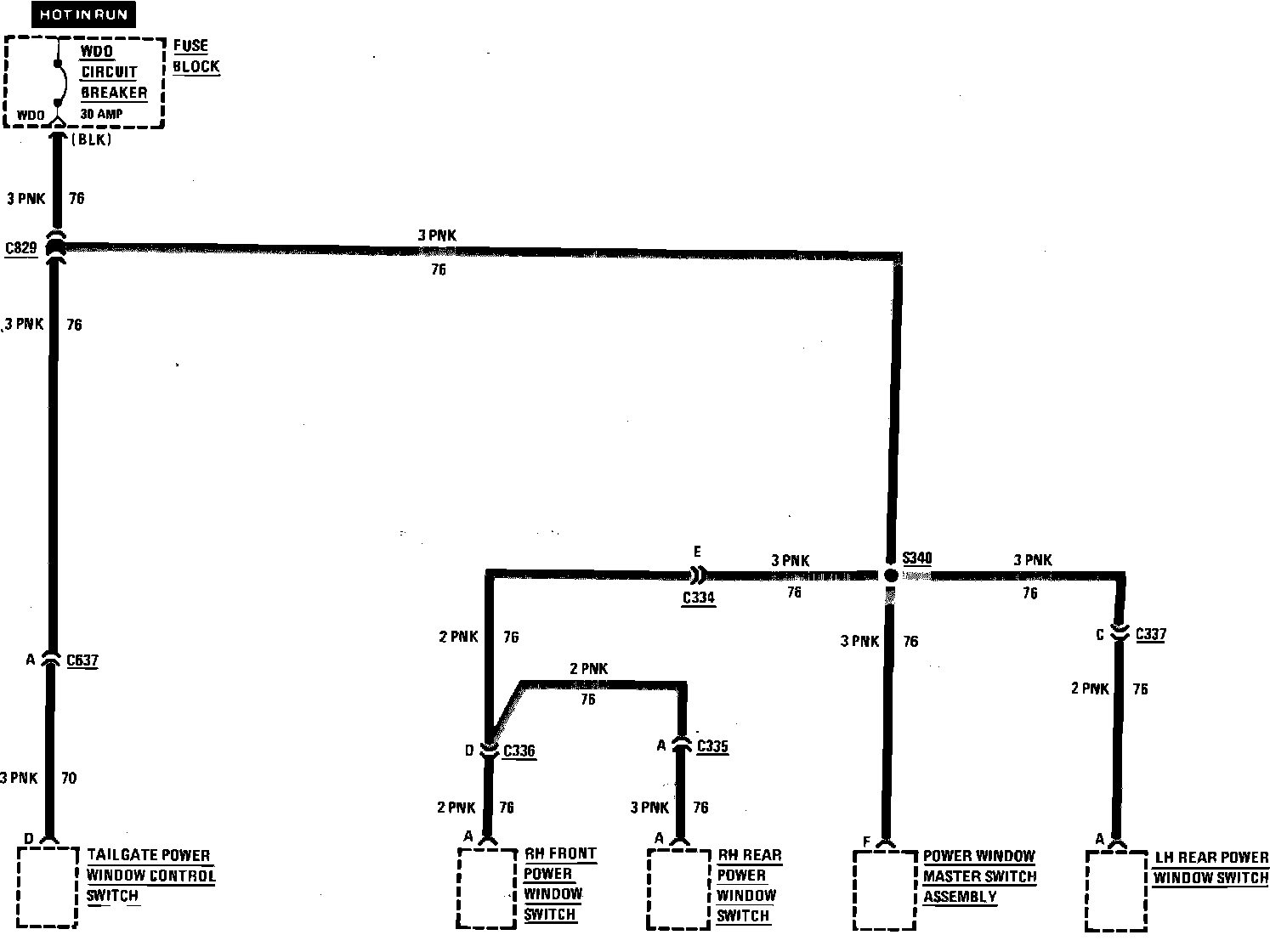

Fuse Block Details (Window Circuit Breaker):
