Oldsmobile
>>
1987
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Map Light
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

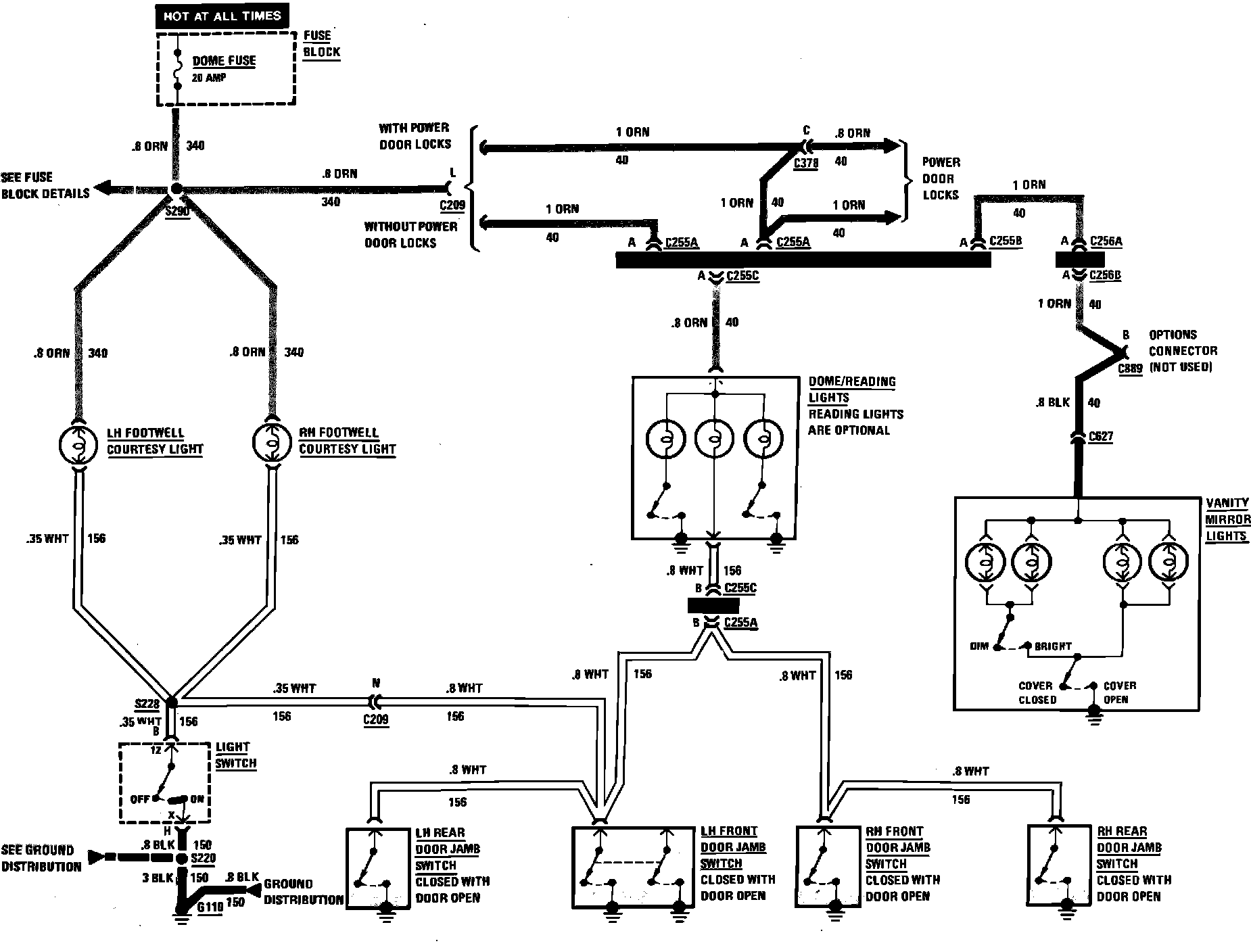

Interior Lamps Wiring Circuit (Courtesy, Dome, Reading & Vanity Mirror Lamps):
