Engine Mount: Service and Repair

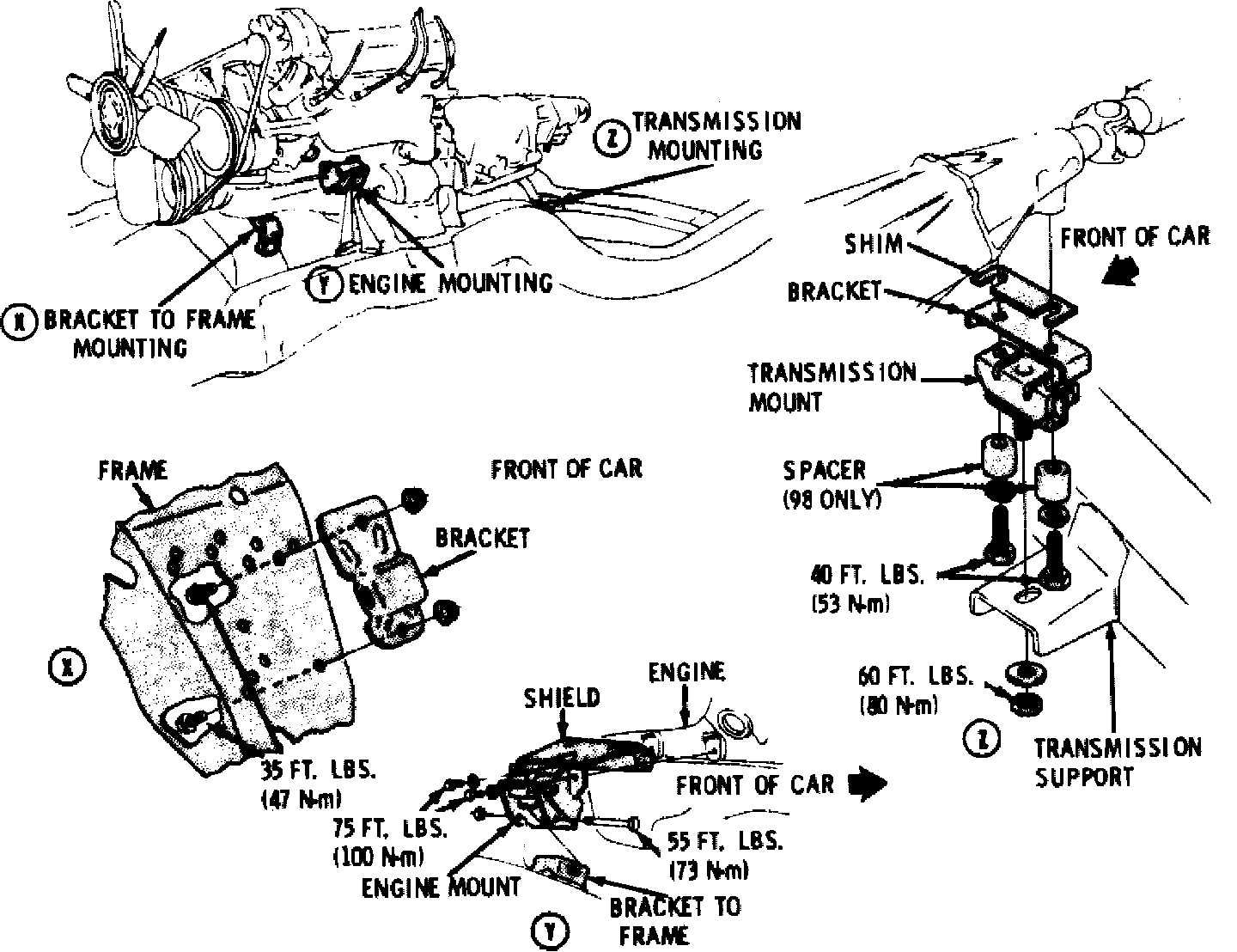

Fig. 2 Engine mounts.:

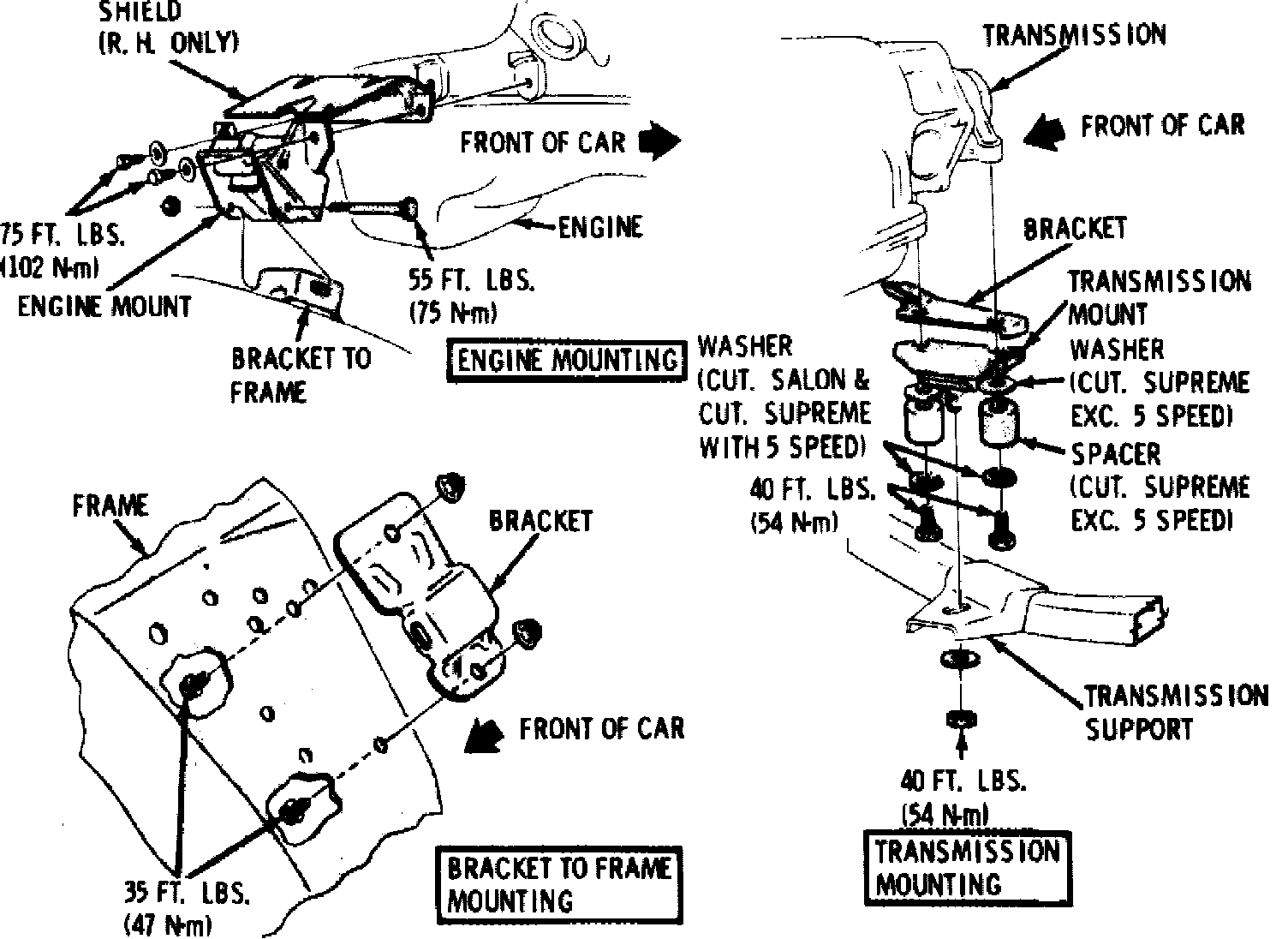

Fig. 3 Engine mounts. 88, 98 & Custom Cruiser:

EXC. TORONADO
Removal or replacement of a motor mount can be accomplished by supporting the weight of the engine at the area of the mount to be replaced.
