Lighting and Horns
>>
License Plate Lamp
License Plate Lamp

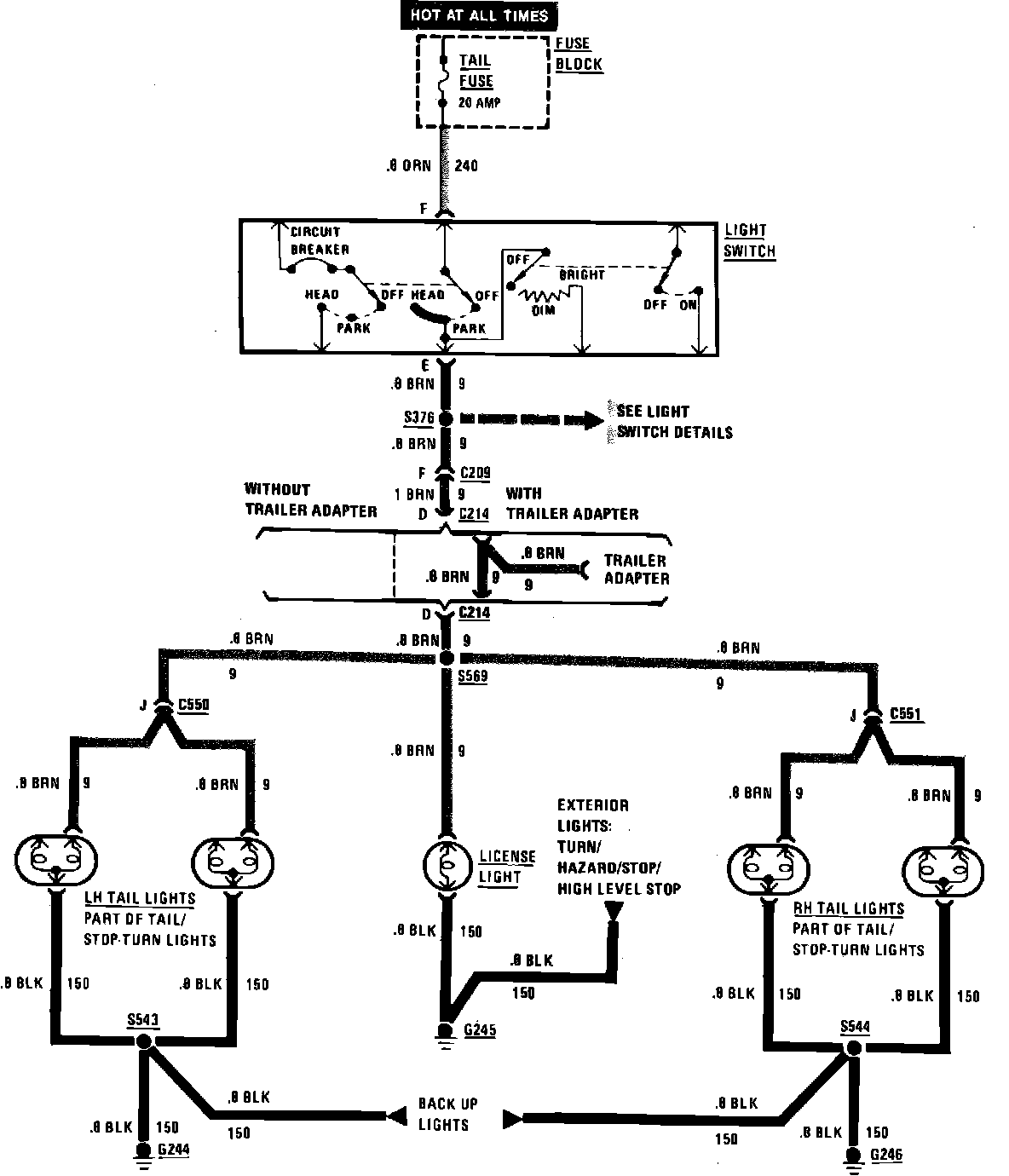

Exterior Lamps Wiring Circuit (License & Tail):
