Oldsmobile
>>
1987
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Alarm & Warning System
>>
Less Reminder Package
Less Reminder Package

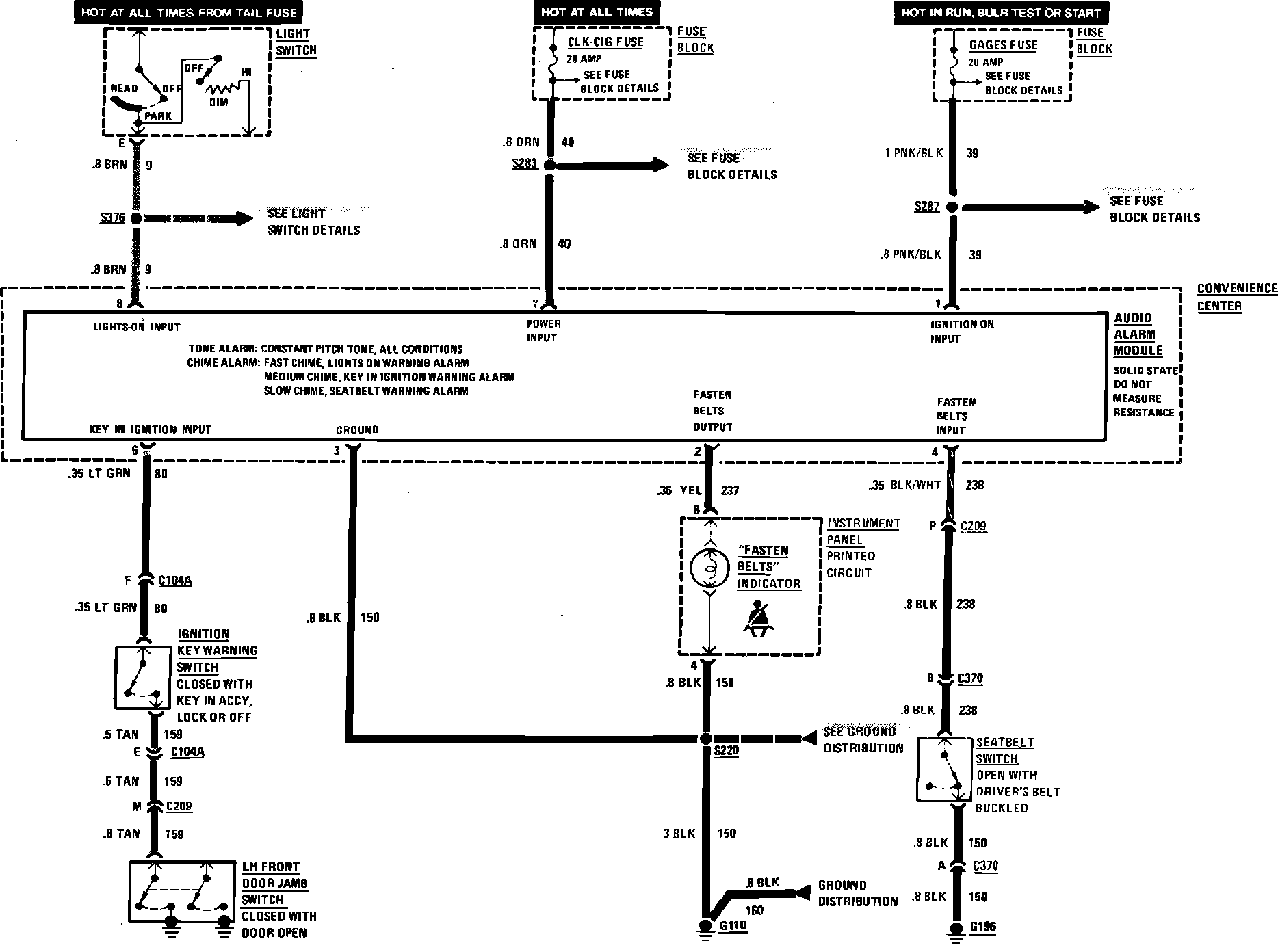

Alarms & Warning Chime Wiring Circuit (Less Reminder Package):
