Engine - Belt Chirp or Squeal
90oldsmobile10SUBJECT BELT CHIRP OR SQUEAL (SERVICE PROCEDURE)
MODELS/YEARS 1986-90 CUTLASS CALAIS, CUTLASS CIERA, EIGHTYEIGHT, NINETY-EIGHT AND TORONADO MODELS EQUIPPED WITH 3.0L, 3.8L, 3300 OR 3800 ENGINES (VIN CODES L, 3, B, N, C)
NUMBER: 90-T-144
CORP.REF.NO: 806103R
DATE: July 1990
SECTION: 6A
NOTICE: This bulletin supersedes Dealer Technical Bulletin 88-T-69 dated May, 1988 and the June, 1986 Service Guild article on this subject. Please discard bulletin 88-T-69. This bulletin was revised to include 1989 and 1990 model years, add the Cutlass Calais and 3300 engine, and to include torque specifications on rear bolts.
Some 1986 through 1990 vehicles equipped with a single belt accessory drive system, may experience a belt chirp or squeal that cannot be corrected by normal service procedures. It has been determined that the root cause of this condition is pulley misalignment. The following procedure may be used to correct alignment as necessary.
Figure 1:

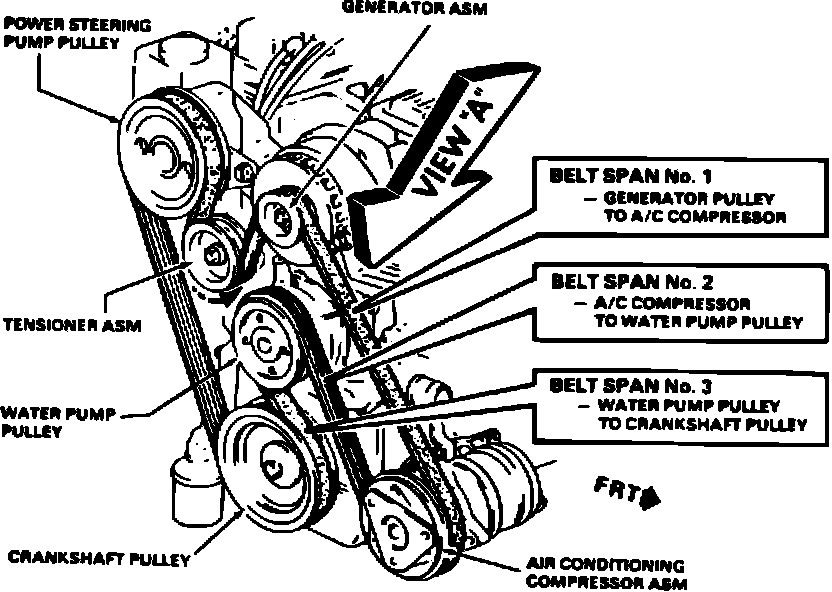

The two most likely pulleys requiring alignment are the A/C compressor or crankshaft pulley. To determine which component must be shimmed, visually sight belt spans No. 1, 2, and 3 from View "A", (See Figure 1).
Figure 2:
Figure 3:
Figure 4:
By visually aligning the front edge of belt spans No. 1 and No. 2 so that the edges align perfectly, compare them with span No. 3 (See Figure 2). If the belt on the crank pulley is forward of spans No. 1 and No. 2, then the A/C compressor needs to be shimmed forward (See Figure 3). If belt span No. 3 is not forward (belt span No. 3 cannot be seen), then align spans No. 1 and No. 2 along the rear edge and then compare them wfth belt span No. 3 (see Figure 2). If belt span No. 3 is rearward of the edges of spans No. 1 and No. 2, then the crankshaft pulley must be shimmed forward (see Figure 4.)

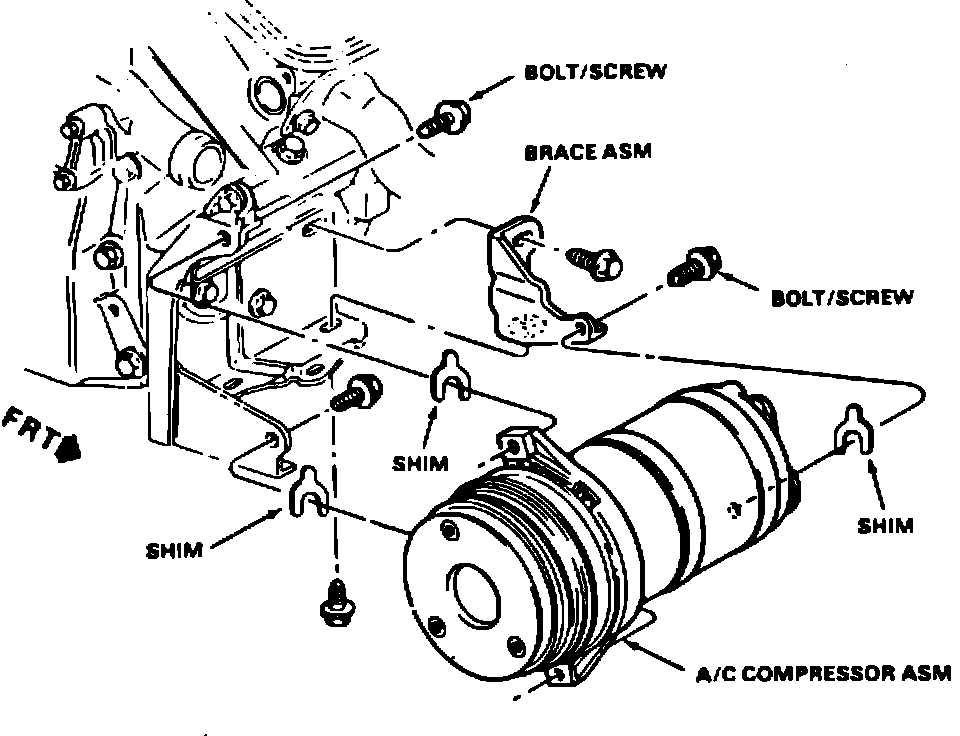

If the A/C compressor requires shimming, loosen the three compressor attaching bolts and install a .030" front end alignment shim (Part No. 6270717) between the bracket and compressor at all three locations as shown. It will be necessary to use longer bolts of the same hardness for the two front attaching bolts (Part No. 11507023). Tighten the two front attaching bolts to 40-60 N-m (30-44 lb.ft.) and the rear attaching bolt to 20-34 N-m (15-25 lb.ft.). In some cases, it may be necessary to use two shims (.060"); however, never shim more than .060".
WARRANTY INFORMATION:
Labor Operation Number: T5106
Labor Time: 0.5 hour
Trouble Code: 92

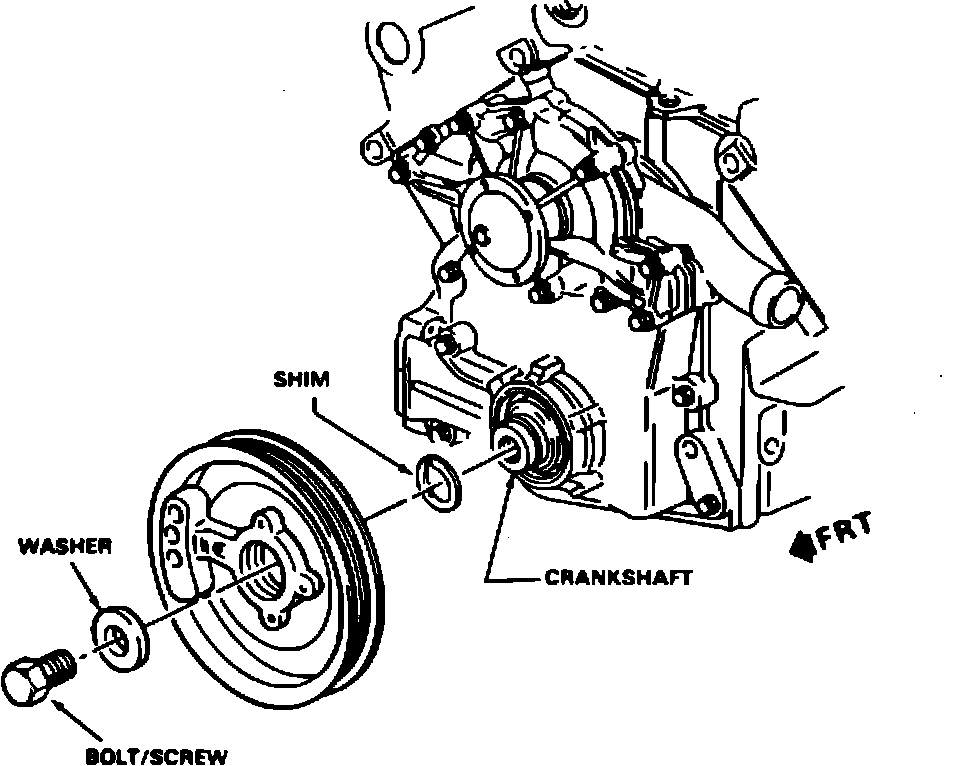

If the crankshaft pulley requires shimming, remove the pulley and install a .030" shim (Part No. 25523377) on the crankshaft behind the crankshaft pulley. Reinstall the pulley and tighten bolt to 270 N-m (200 lb.ft.) In some cases, it may be necessary to use two shims (.060"); however, never shim more than .060".
WARRANTY INFORMATION:
Labor Operation Number: T5107 Labor Time:
(88, 98 & Toronado) 0.6 hour
(CLdlass Calais & Cutlass Ciera) 0.5 hour
Trouble Code: 92
Figure 5:
If two spacers are installed and the crank pulley is still too far rearward, and there is still belt noise, then a new compressor mounting bracket may be needed. If any other component is too far forward initially, a new service bracket or component may have to be installed.

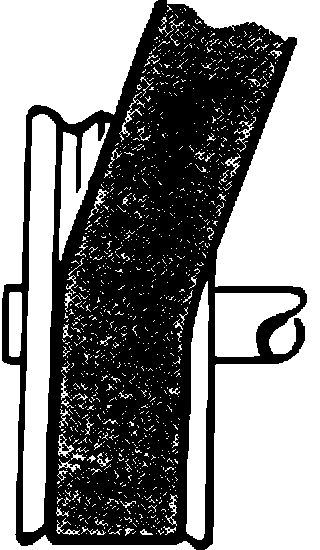

If component fore-aft location is acceptable, then a component or pulley could be out of plane or "cocked", (See Figure 5).
In some instances, a component can be brought back into plane by shimming, if the mounting locations correspond to a direction that is correct for realignment; otherwise, the component or bracket may need to be replaced.
If all alignments check out to be acceptable, and there is still belt noise, check all related component bearings to be sure they turn freely and do not drag. The tensioner arm should also be checked for freedom of movement.
If it is necessary to replace a drive belt due to excessive wear, irregular splice (causing belt hop), excessive paint build up on the back side of the belt (from painted pulleys) or a belt contaminated with excessive belt dressing; make sure the latest design belt is installed.
Automatically tensioned single belt accessory drive belts are not generally noisy unless there is a misalignment or severe loading condition, such as a defective bearing. Belt dressings are only a "band aid" for a short period of time, and may only conceal the real problem which could drastically shorten belt life.
Parts are now currently available from GMSPO.
