Electronic Spark Control, Emission & Torque Converter
Electronic Spark Control, Emission & Torque Converter

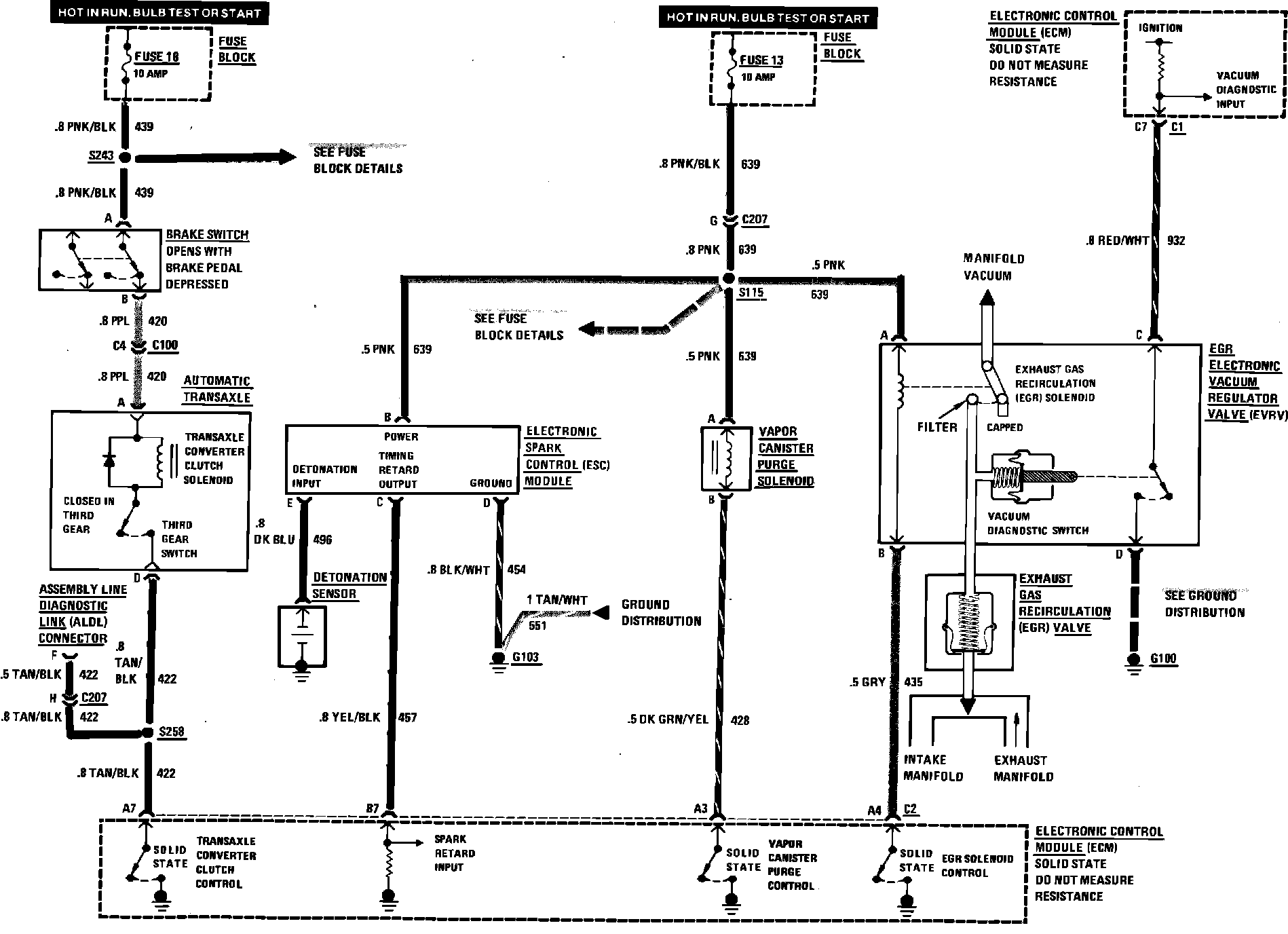

Fuel Injection Wiring Circuit (Electronic Spark Control, Emission & Torque Converter Clutch):
