Home
>>
Oldsmobile
>>
1987
>>
Calais FWD V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Vehicle Speed Sensor (VSS)
>>
W/Gauges Cluster
W/Gauges Cluster

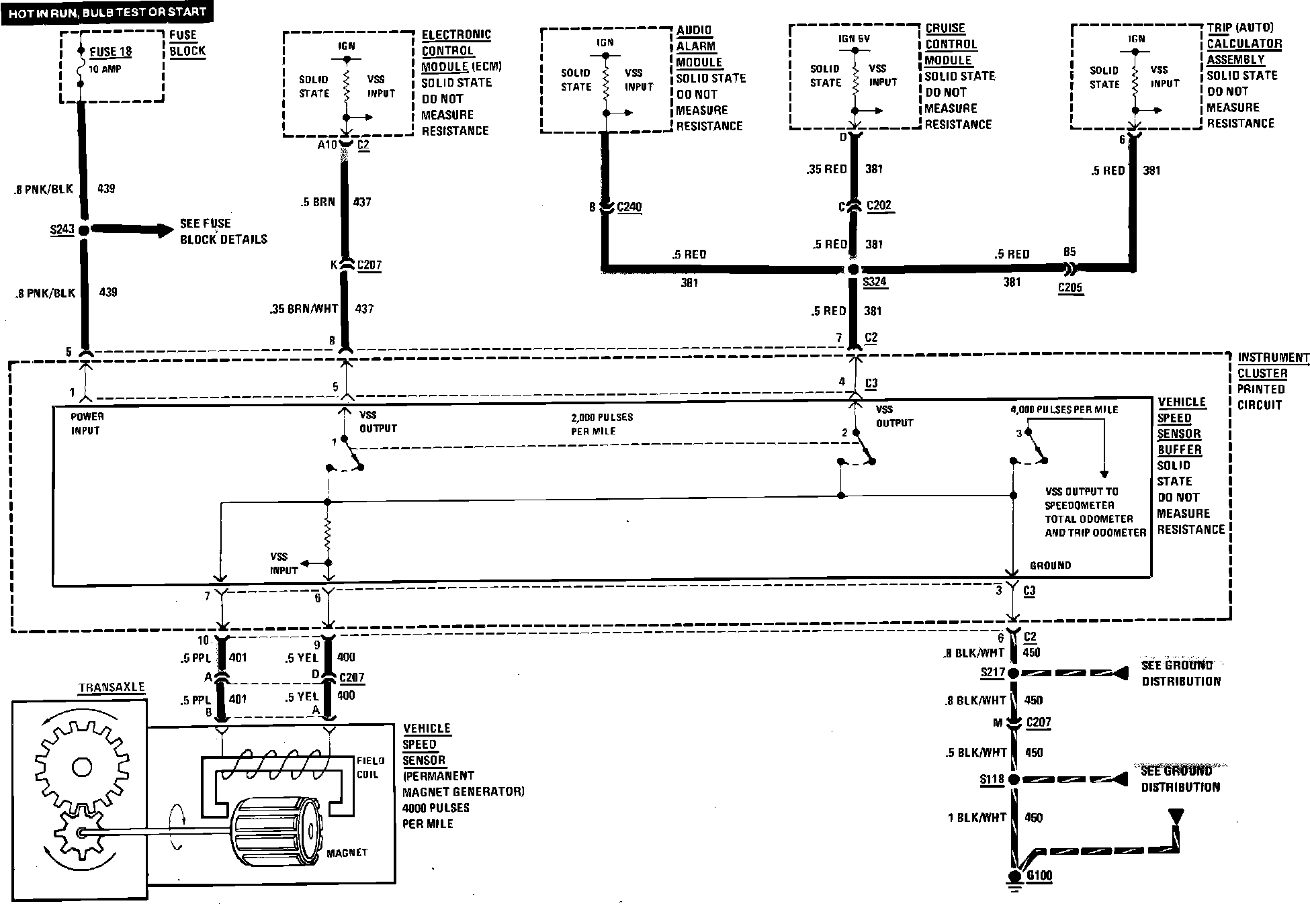

Vehicle Speed Sensor (W/Gauges Cluster):
