Direct Clutch Housing - Revised
89Oldsmobile10SUBJECT: NEW DIRECT CLUTCH HOUSING
MODELS/YEARS: 1985-90 CUTLASS CALAIS, CUTLASS CIERA; 1990
CUTLASS SUPREME, SILHOUETTE EQUIPPED WITH HYDRA-MATIC 3T40 (THM 125C) TRANSAXLE (RPO MD9)
NUMBER: 90-T-08
CORP. REF. NO: 977141
DATE: September 1989
SECTION: 7A
Figure 1:
BULLETIN COVERS:
A new Direct Clutch Drum (610) with an increased wall thickness of 0.2 mm (Figure 1) to prevent the Direct Clutch Drum from warping when subject to excessive heat caused by an Intermediate Band distress (606).

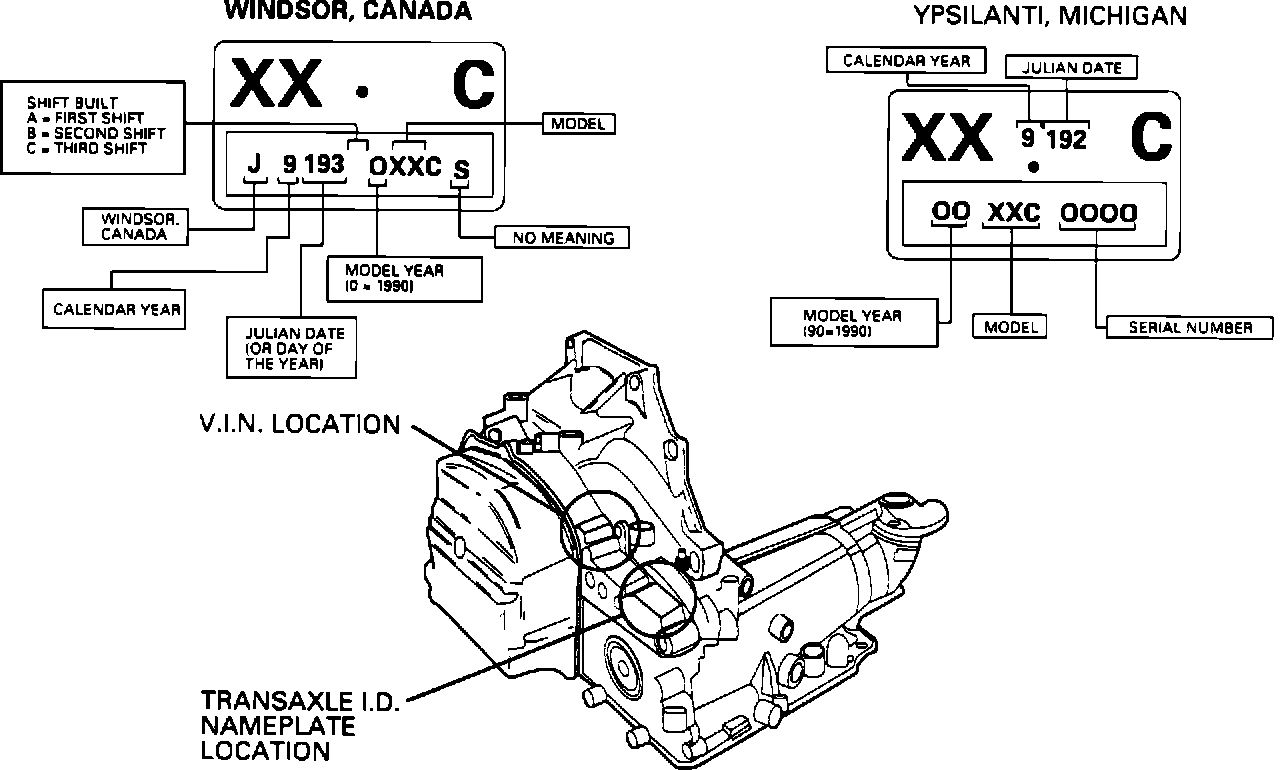

Figure 2 - HYDRA-MATIC 3T40 Transaxle Identification Information:
DATE OF PRODUCTION CHANGE: (Figure 2)
The new Direct Clutch drum went into production July 11, 1989, (Julian Date 192) for all Willow Run built transaxles and July 12, 1989, (Julian Date 193) for all Windsor built HYDRA-MATIC 3T40 transaxles.
Figure 1:
SERVICE PROCEDURE:
This new Direct Clutch Drum can be used on previous model HYDRA-MATIC 3T40 transaxles built since (model year) Start of Production - 1985.
Do not attempt to use the new Direct Drum in transaxles built previous to model year 1985 because the return spring and snap ring groove location will not allow 1980 to 1985 model internal components to assemble into the new direct clutch drum.
If an intermediate band failure occurs, inspect the outer wall of the direct clutch drum using a flat edge ruler (Figure 1). If there are dips in the drum between the ruler, the drum should be replaced.
SERVICE PARTS INFORMATION:
Whenever ordering a New Direct Clutch Housing, refer to the following part numbers.
Part Number Description
8653971 Direct Clutch Drum and Check Ball Capsule
8653982 Direct Clutch Drum, Check Ball Capsule and
Intermediate Band
Refer to GMSPO group number 4.251 for proper usage. Parts are currently available from GMSPO.
SERVICE MANUAL REFERENCE:
Whenever servicing any THM 125C/HYDRA-MATIC 3T40 transaxle, refer to the procedures outlined in the Unit Repair Section of your Service Manual.
