Engine Data Sensors & Vehicle Data Sensors
Engine Data Sensors & Vehicle Data Sensors

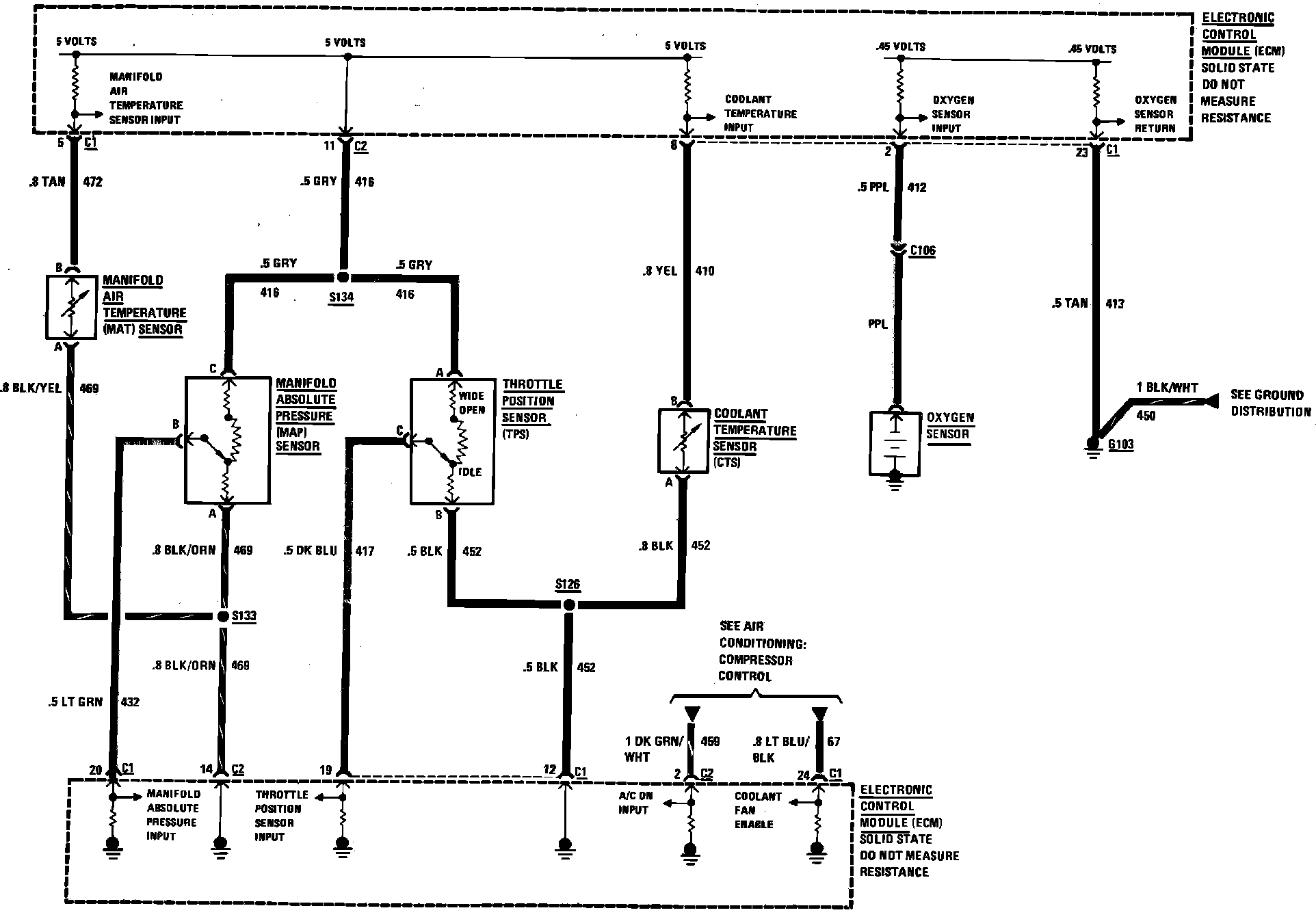

Fuel Injection Wiring Circuit (Engine Data Sensors):
