Home >> Oldsmobile >> 1987 >> Calais FWD L4-151 2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G202 & G201, Part 2 of 2

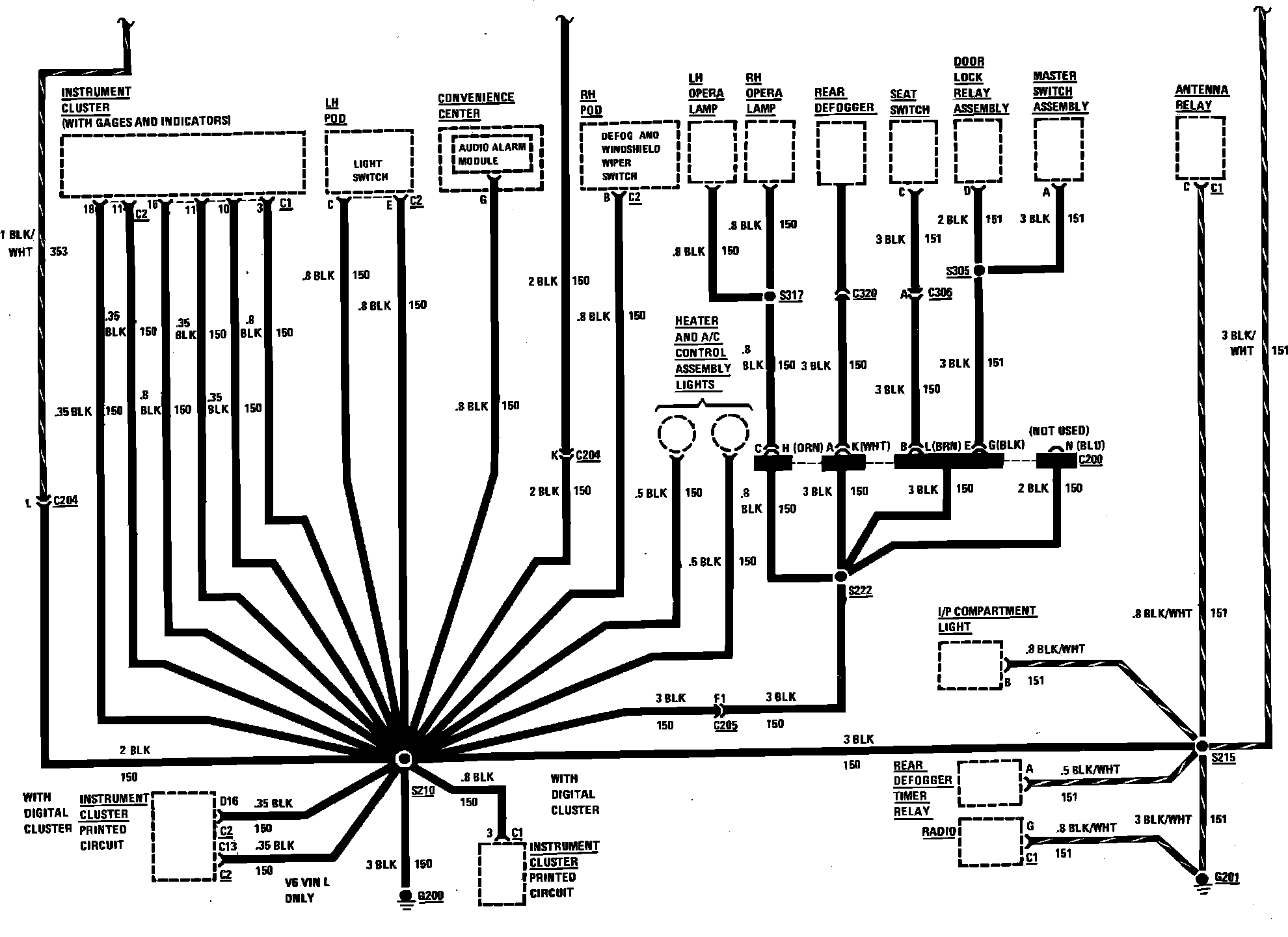

G202 & G201, Part 2 of 2

Ground Distribution. G202 & G201:
