Electrical Diagrams

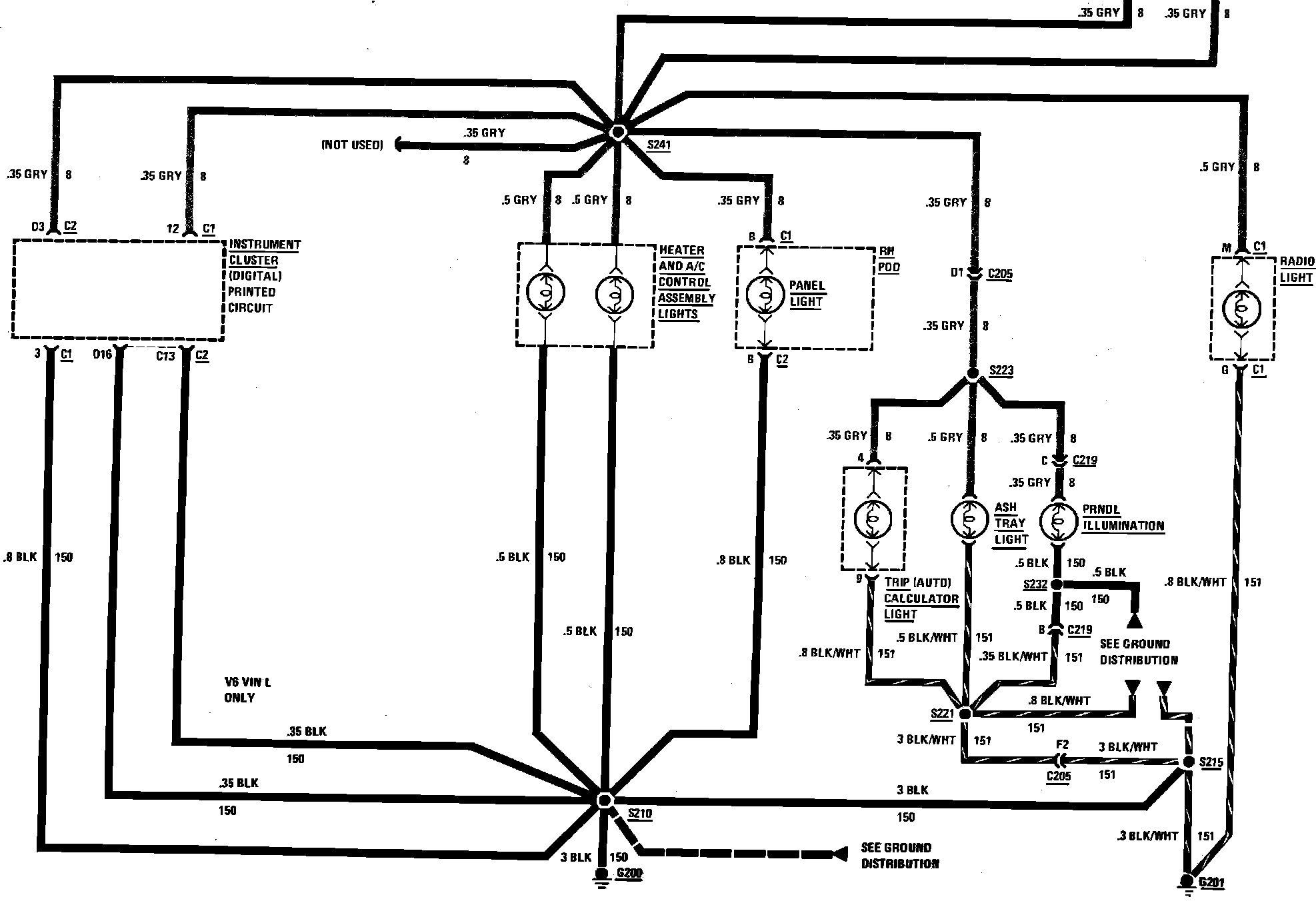

Interior Lights Dimming Wiring Circuit:

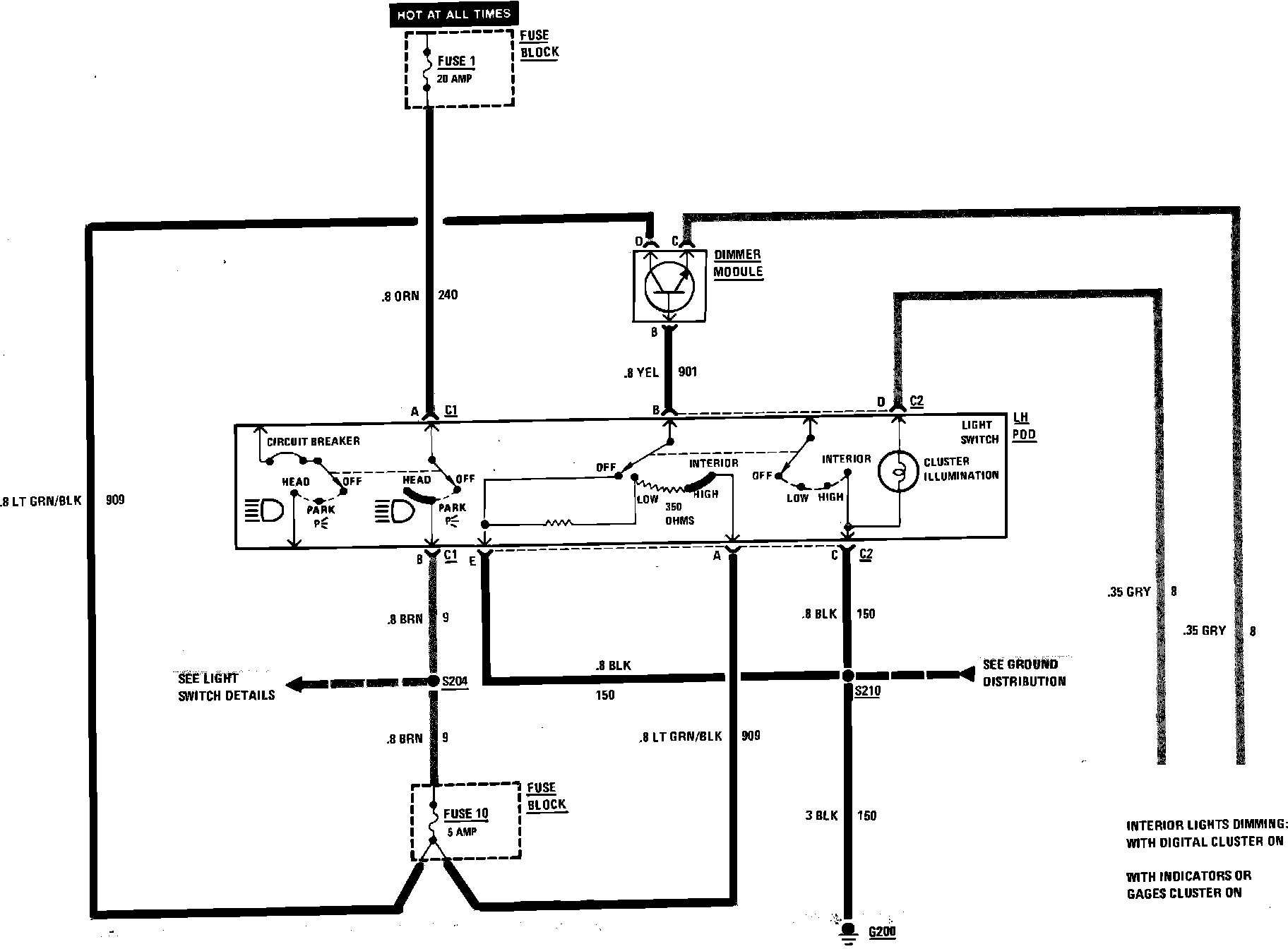

Interior Lights Dimming Wiring Circuit:



Interior Lights Dimming Wiring Circuit:
