System Diagnosis

A/C Air Delivery Circuit:

Air Delivery System Check:

To check the overall A/C system for normal operation see System Check. Testing and Inspection

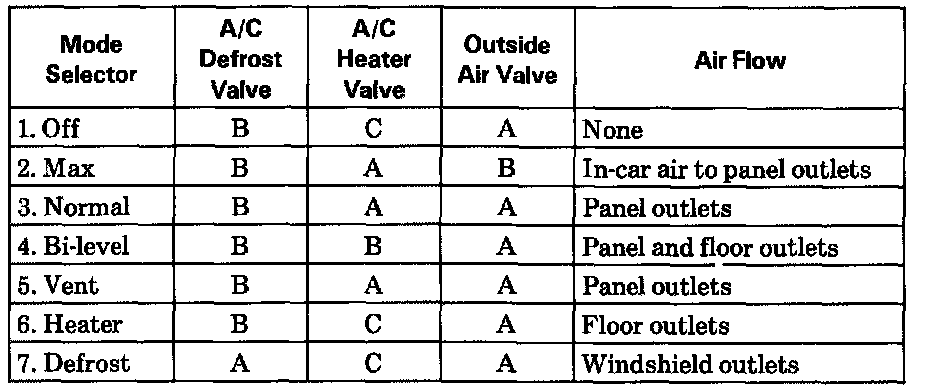

Verify the operation of the air valves using the chart. Put fan switch in HI to give a strong flow of air.
^ See second image (air delivery vacuum controls) for door positions.
