Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
System Diagram
>>
Turn, Hazard, Park, Front Marker
Turn, Hazard, Park, Front Marker

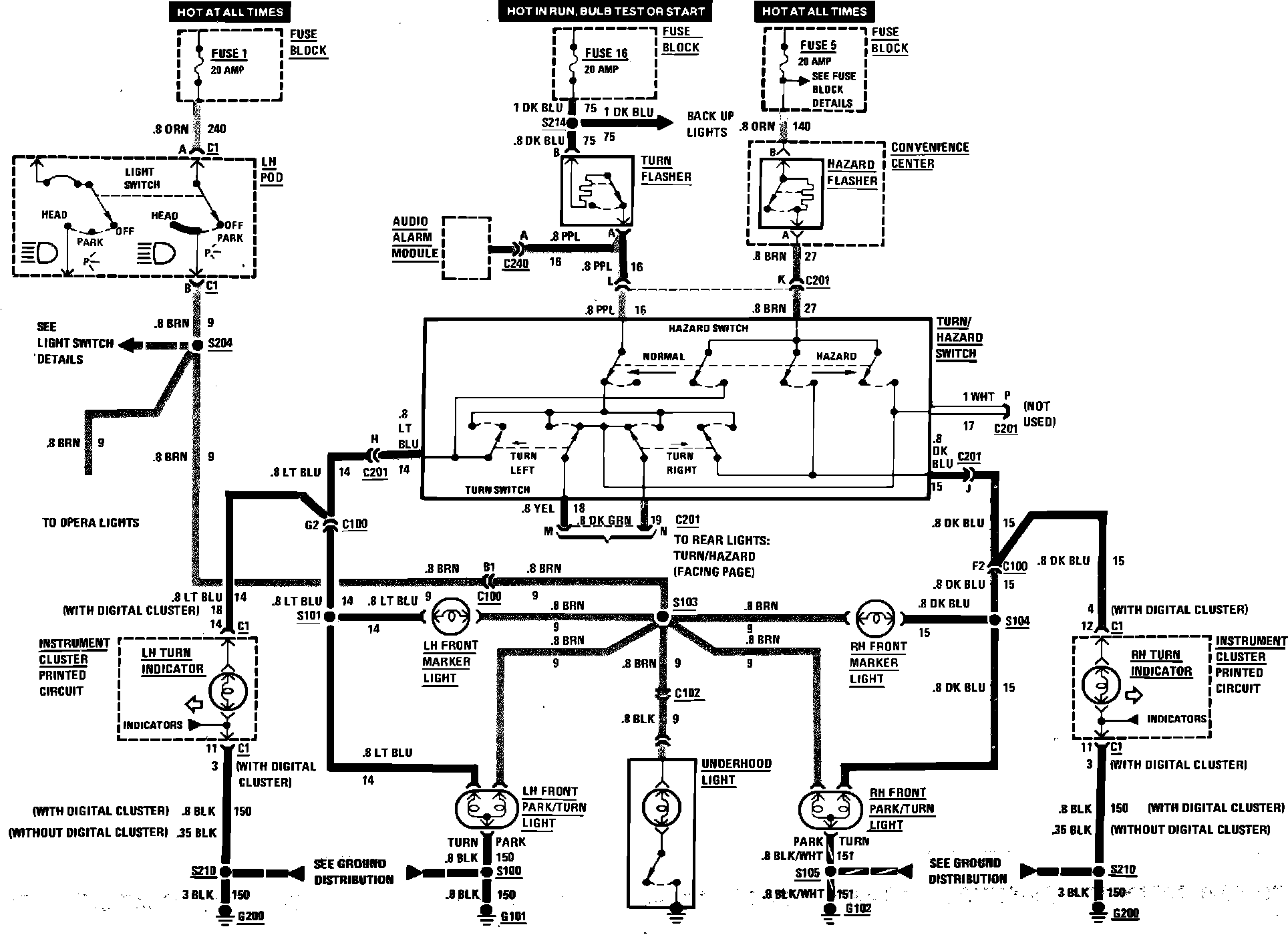

Exterior Lamps Wiring Circuit(Hazard, Front Marker, Park & Turn):
