Oldsmobile
>>
1987
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 1 & 2
Fuse 1 & 2

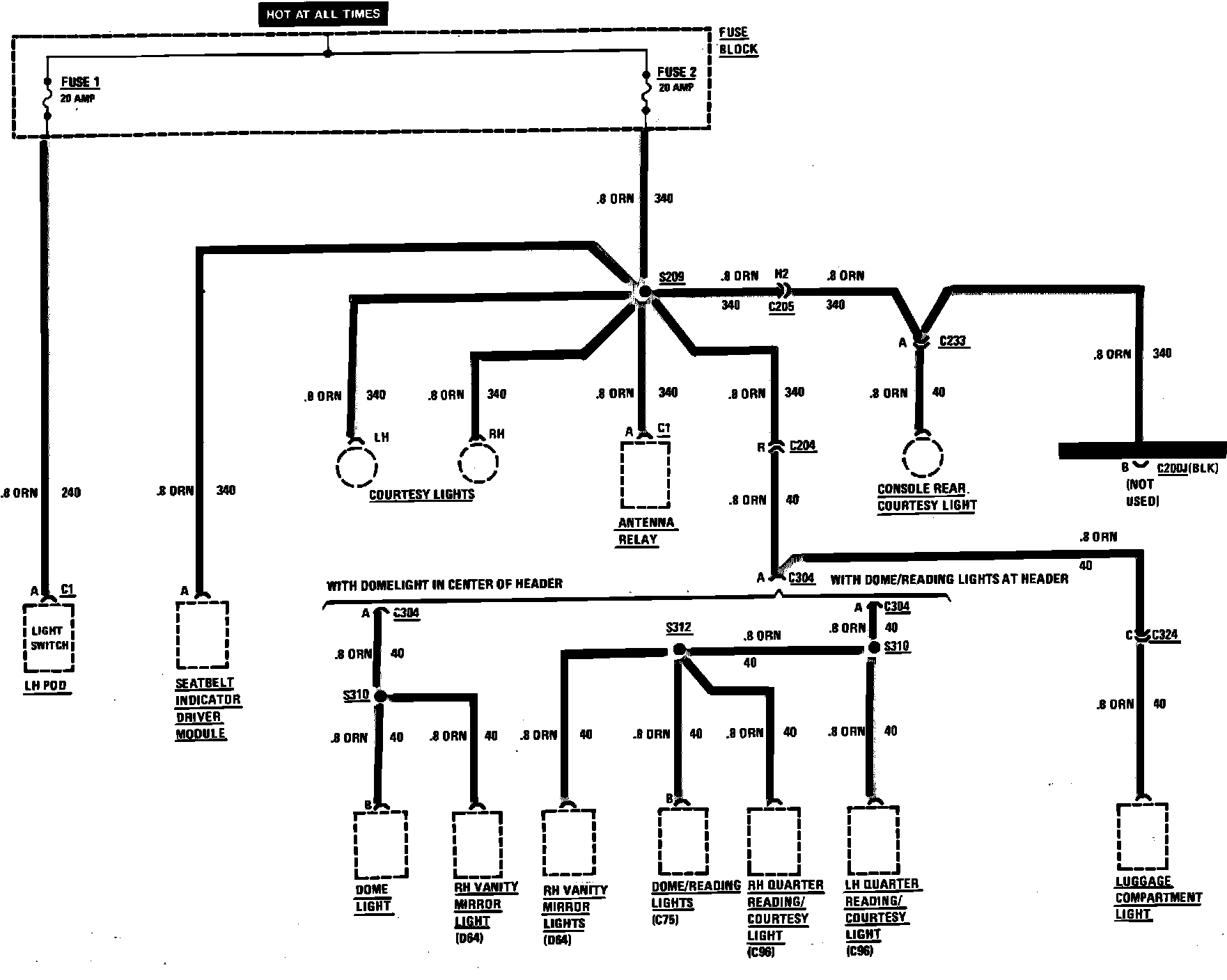

Fuse Block Details (Fuses 1 & 2):
