Oldsmobile
>>
1987
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
Seat Belt Systems

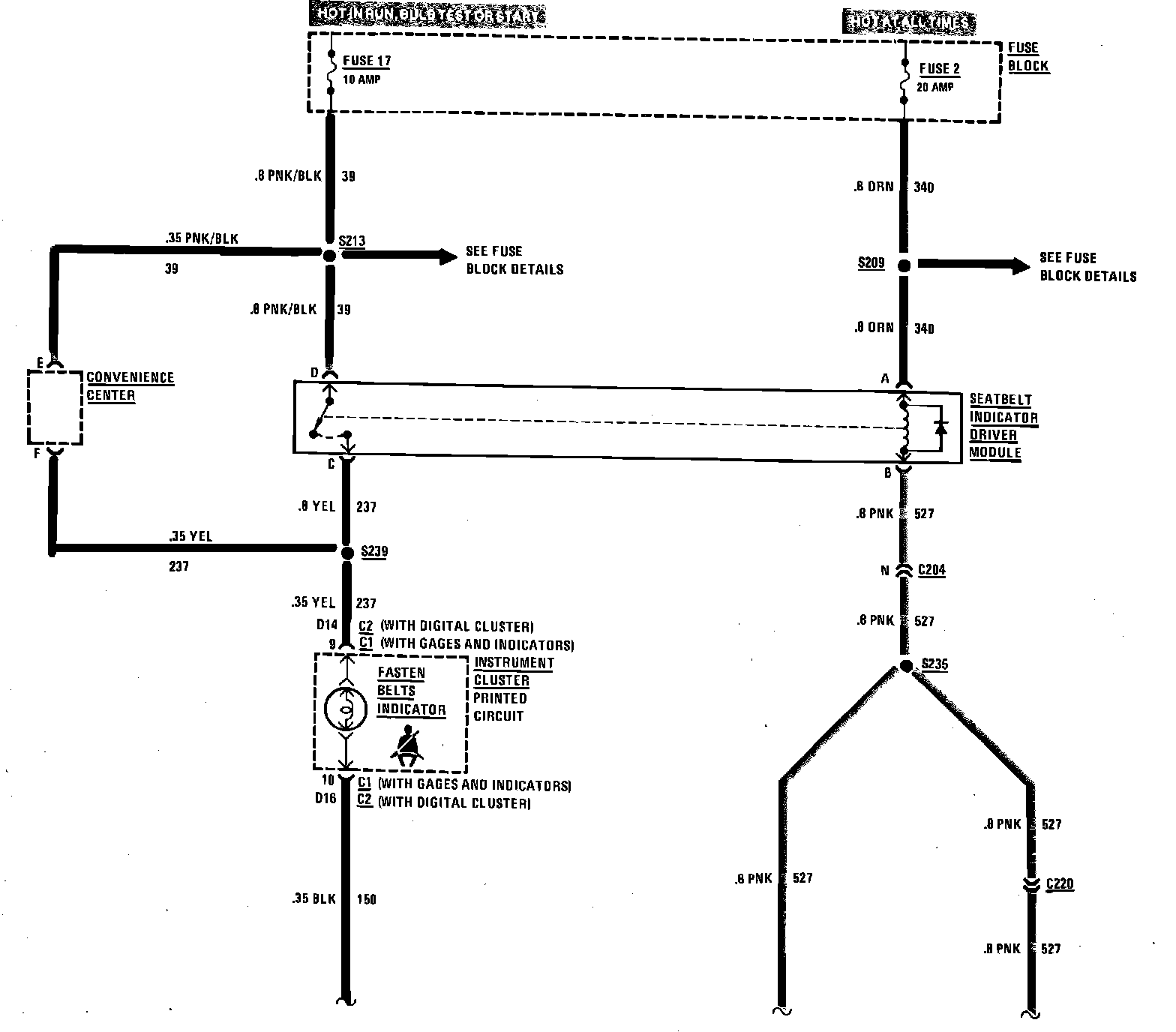

Power Seatbelt Wiring Circuit:
Power Seatbelt Wiring Circuit:
