Oldsmobile
>>
1987
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Exc. Electronic Tuned
Exc. Electronic Tuned

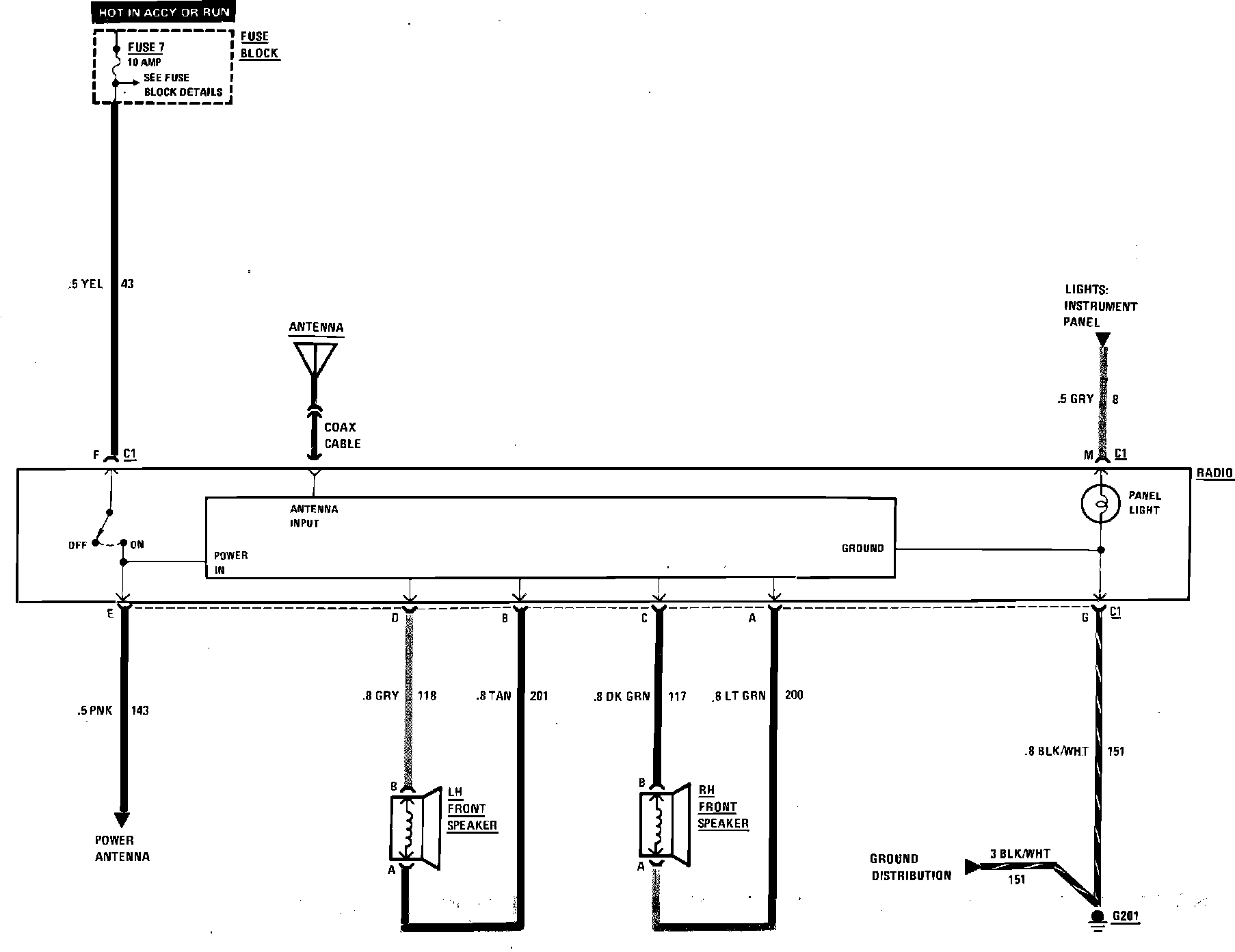

Radio Wiring Circuit (Exc. Electronic Tuned):
