Oldsmobile
>>
1987
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
With Digital Cluster
>>
Digital Cluster Indicators
Digital Cluster Indicators

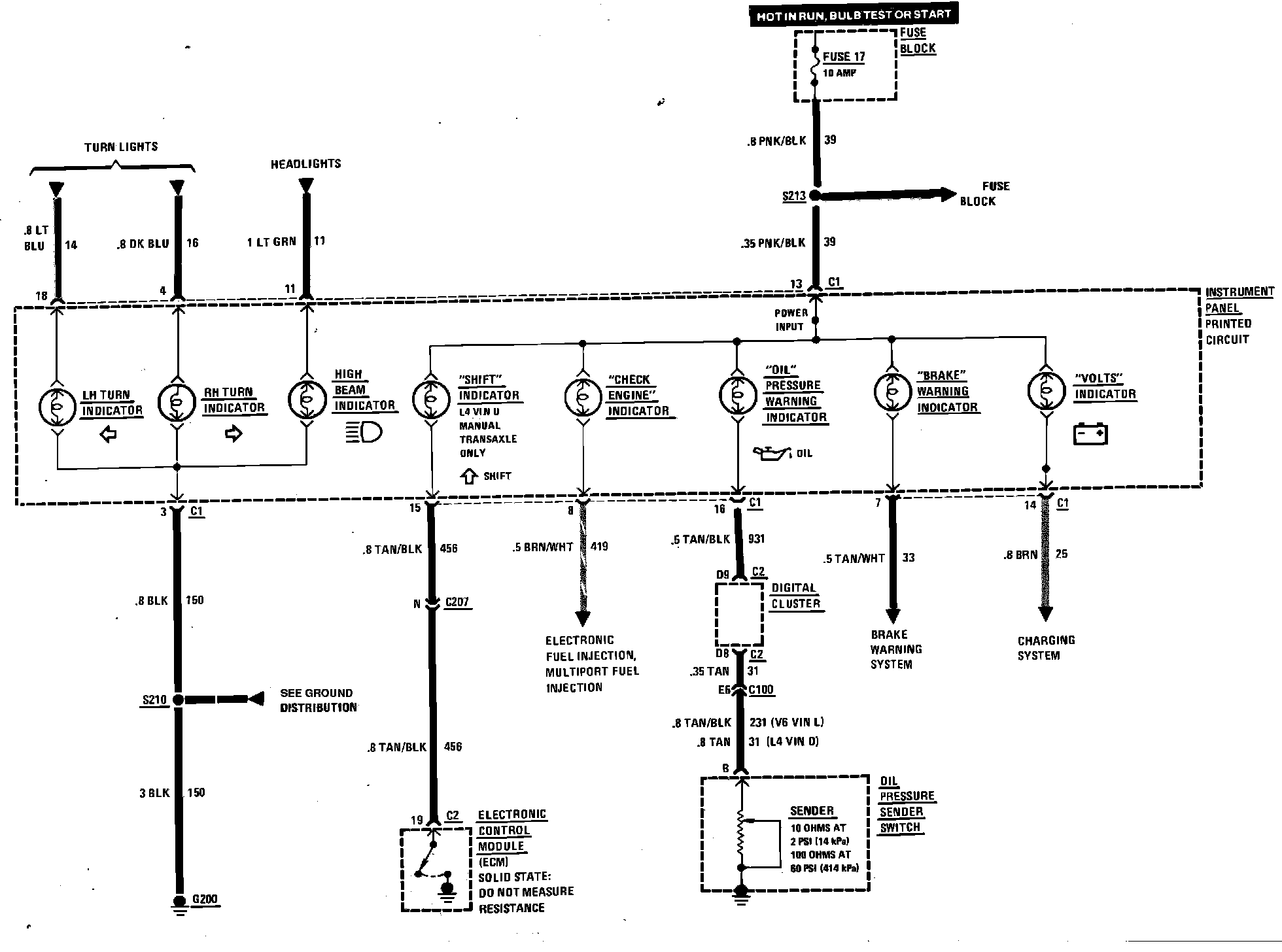

Instrument Panel Wiring Circuit:
