Alarm & Warning System
>>
With Digital Cluster
With Digital Cluster

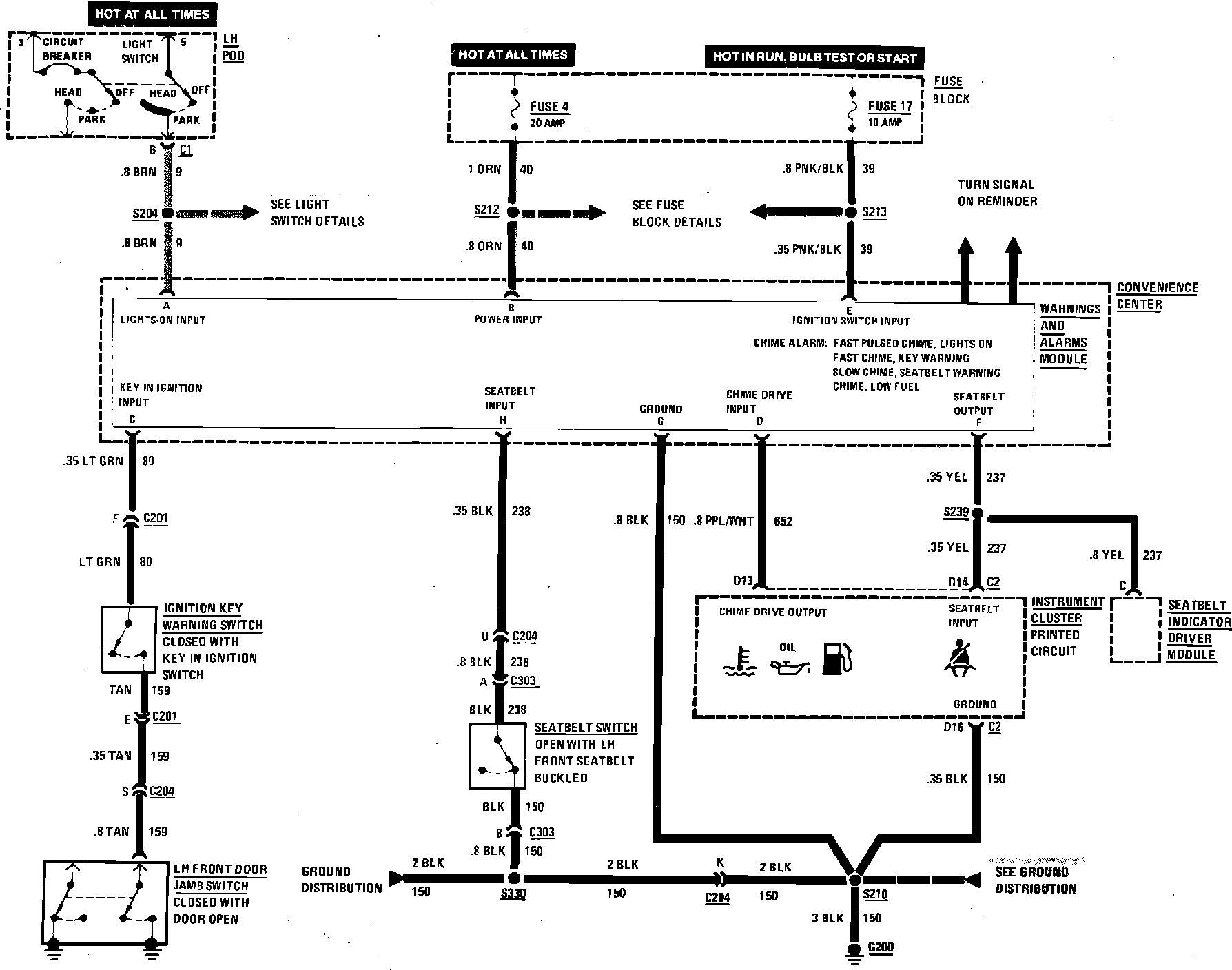

Alarms Wiring Circuit. W/Digital Cluster:
