Oldsmobile
>>
1986
>>
Firenza L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
System Diagram
>>
Automatic Transmission
Automatic Transmission

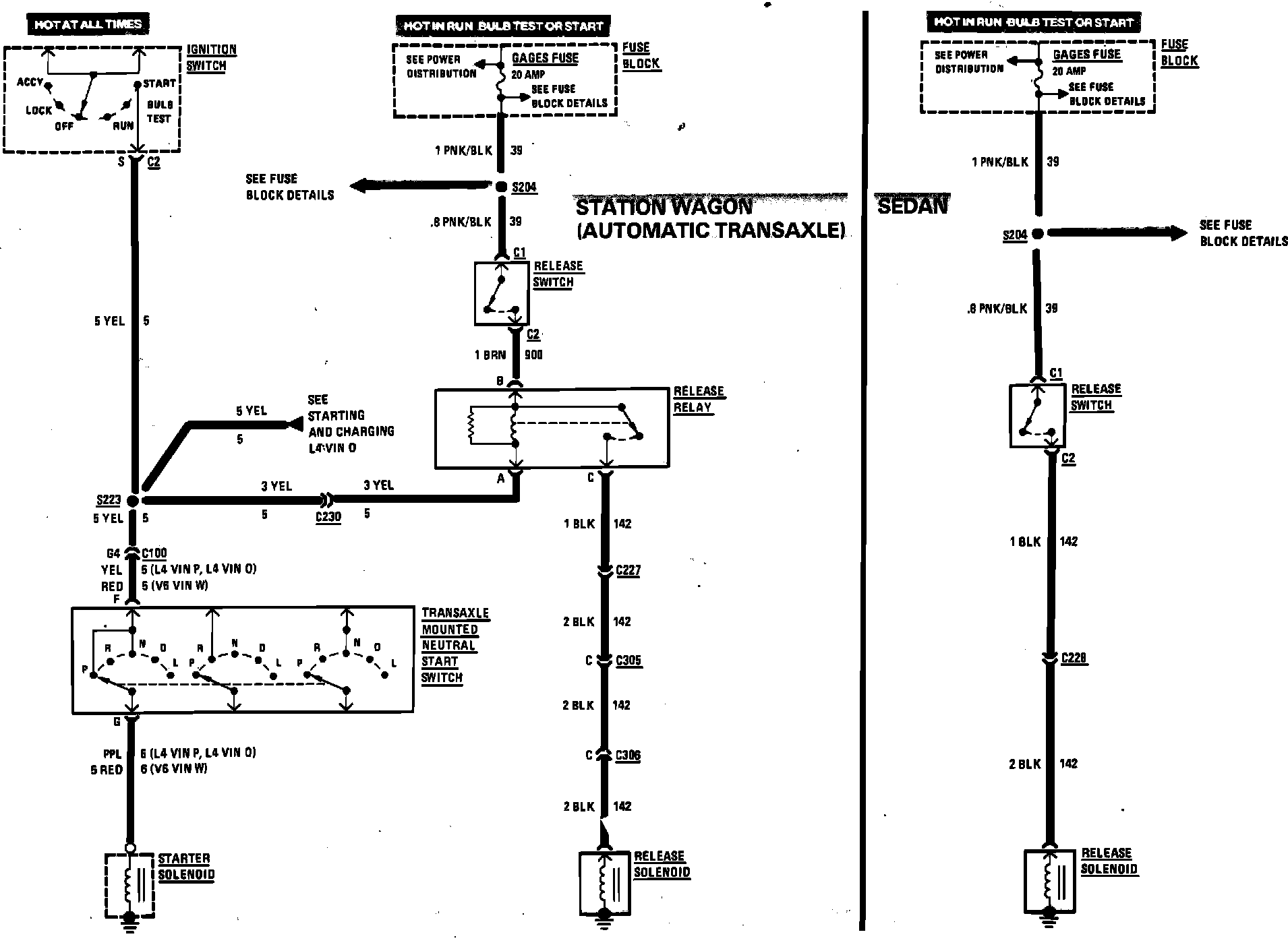

Tailgate & Trunk Release Wiring Circuit. W/Automatic Transaxle:
