Test D - Blower Resistor

Blower Resistor:

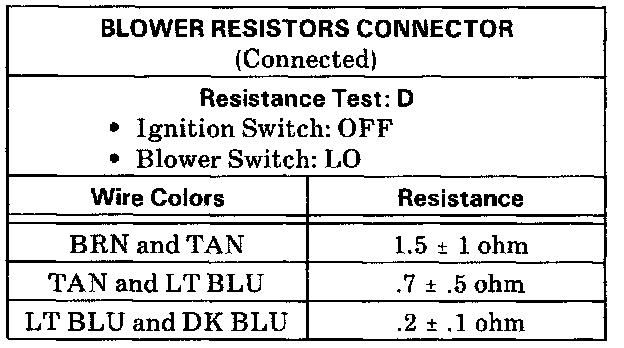

^ Backprobe the connector to the Blower Resistors with the connector still on the resistors, and measure the resistance between the resistor terminals listed. The resistance values are approximate.
^ If resistors are open, or shorted, or different from the values given, install new Blower Resistors.
