Test C - Blower Switch Test

Blower Switch Test:

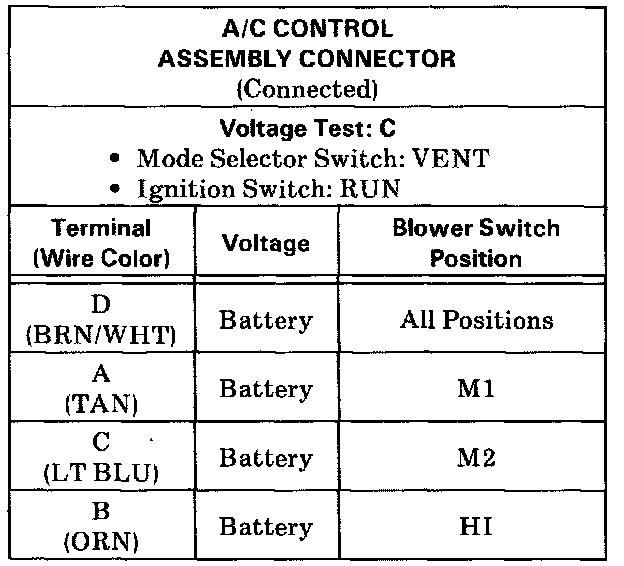

^ Remove the connector from the Blower Resistors. Measure the voltage to ground at the A/C Control Assembly Connector with the connector still on the assembly.
^ If any of the voltages above are not correct, install a new Mode Selector Switch.
