CLK/CIG Fuse & ECM/Bat Fuse
CLK/CIG Fuse & ECM/Bat Fuse

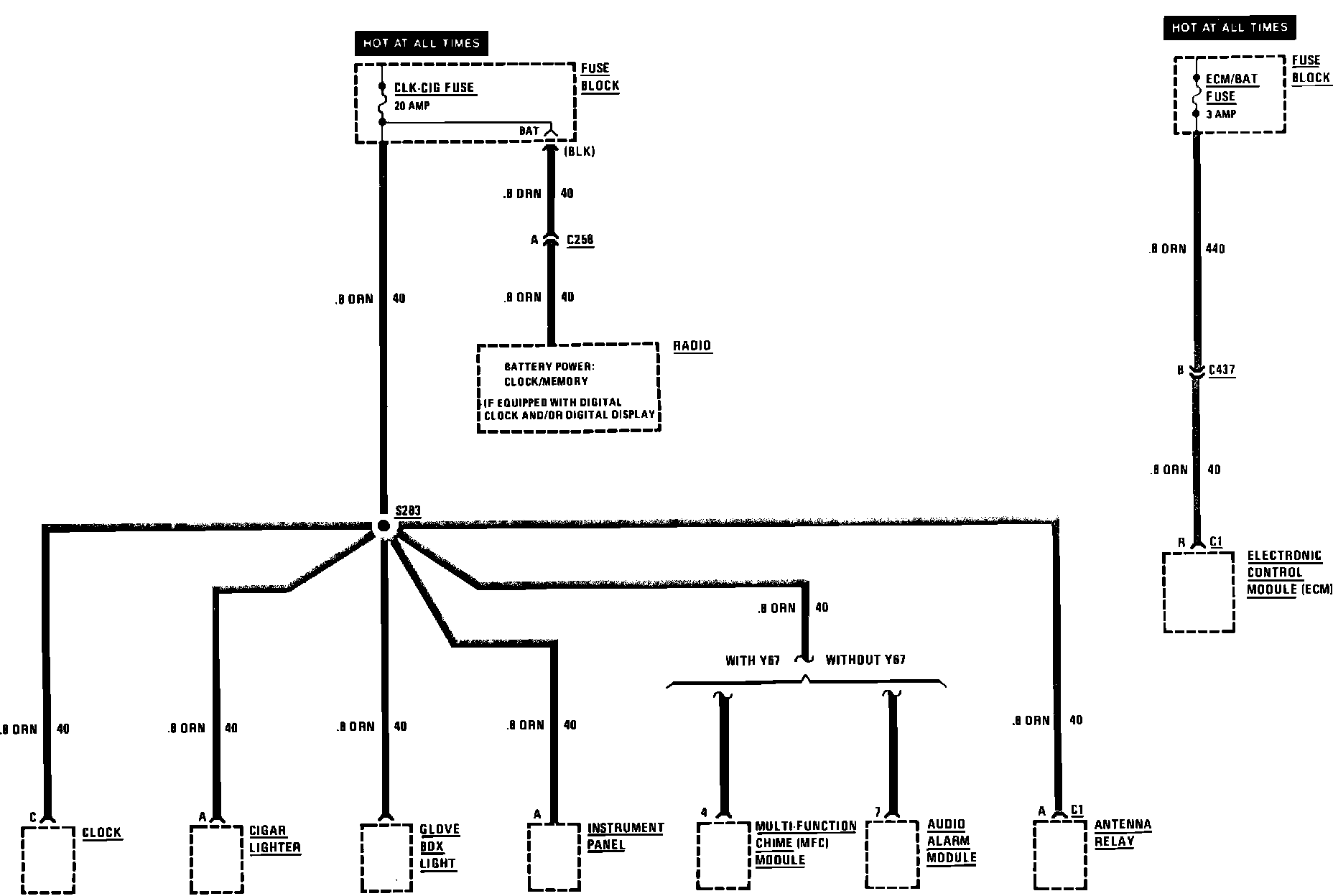

Clock, Cigar Fuse And Ecm/Battery Fuse Wiring Diagram:
