Oldsmobile
>>
1986
>>
Custom Cruiser RWD V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Left Side
Left Side

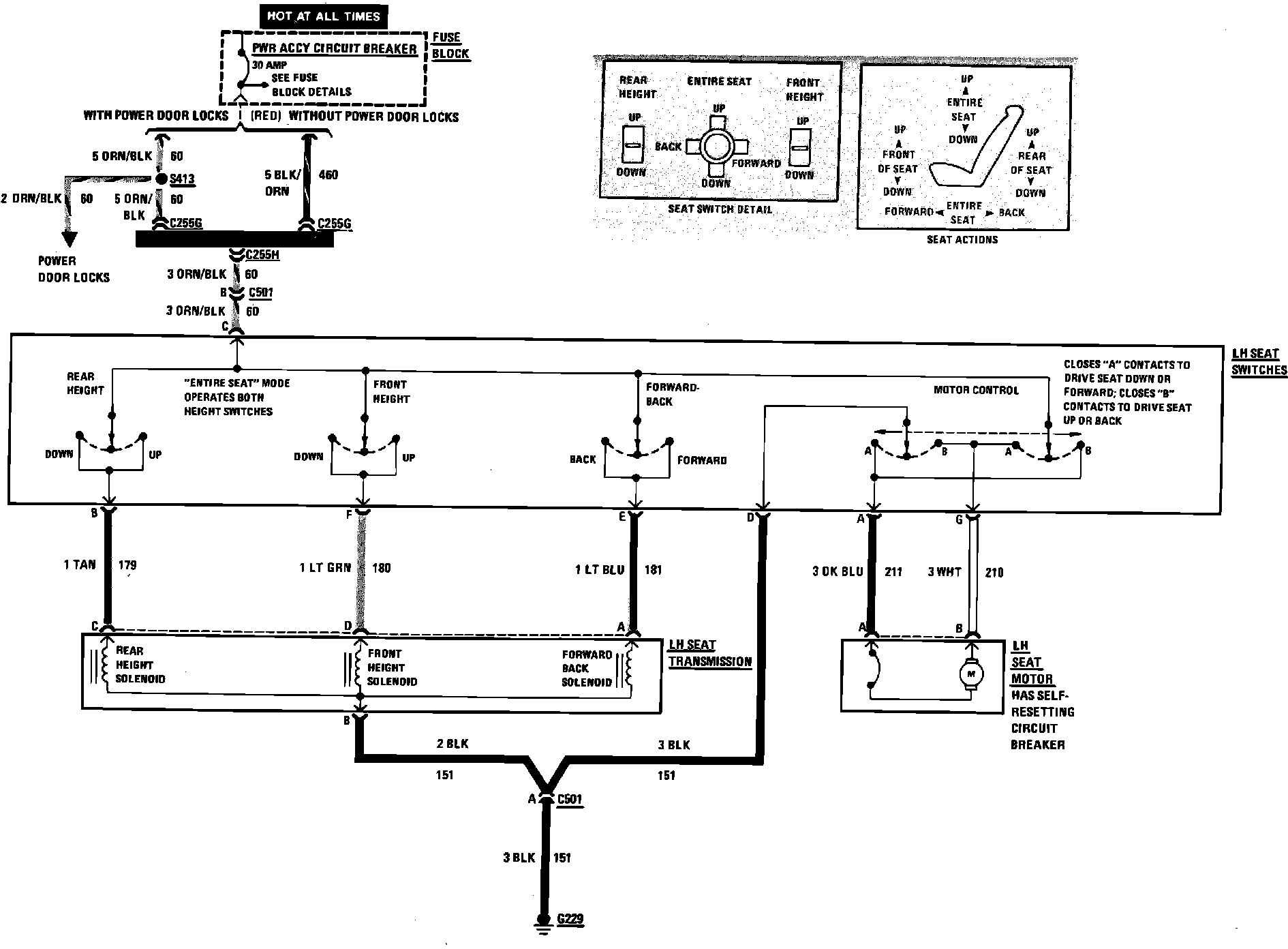

Power Seat Wiring Circuit (Left Side):
