Home
>>
Oldsmobile
>>
1986
>>
Custom Cruiser RWD V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Torque Converter Clutch & Vehicle Speed Sensor (VSS)
Torque Converter Clutch & Vehicle Speed Sensor (VSS)

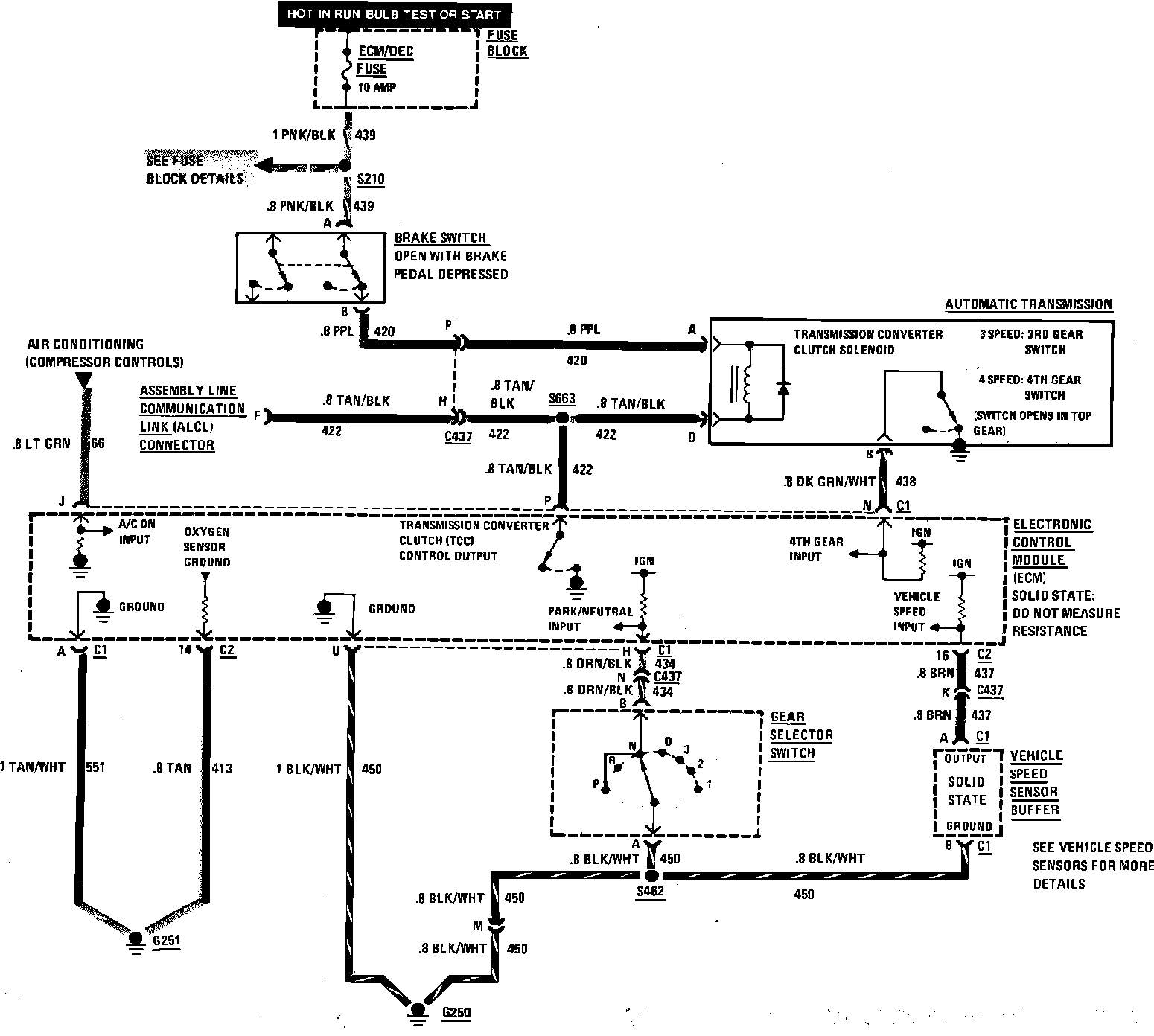

Computer Command Control Wiring Circuit (Torque Converter Clutch & Vehicle Speed Sensors) VIN Y:
