Brake Warning Indicator
>>
With Power Master Brake System
With Power Master Brake System

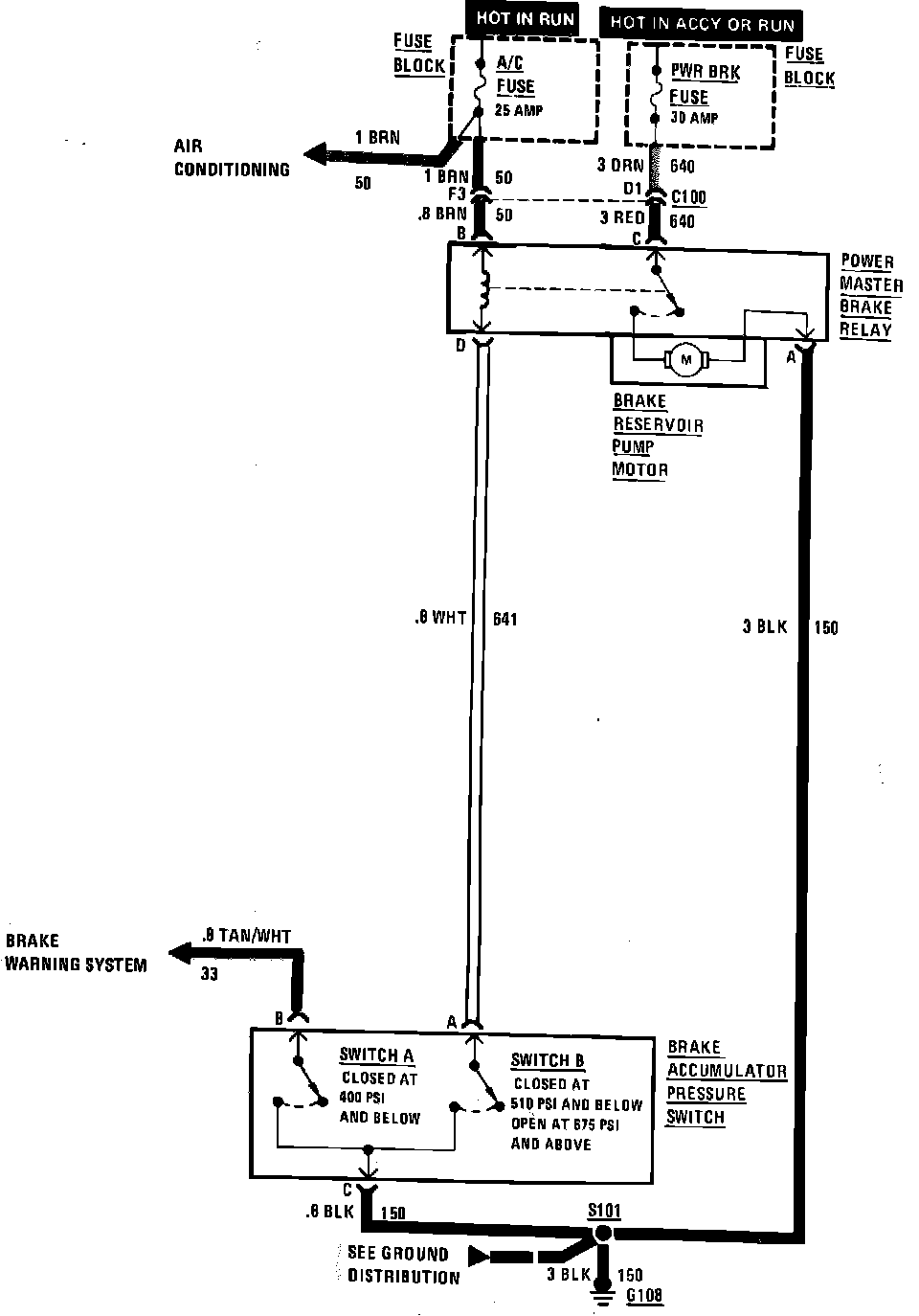

Brake Warning System Wiring Circuit (W/Power Master Brake System):
