Custom Cruiser RWD V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brakes and Traction Control
>>
Brake Warning Indicator
>>
Less Power Master Brake System
Less Power Master Brake System

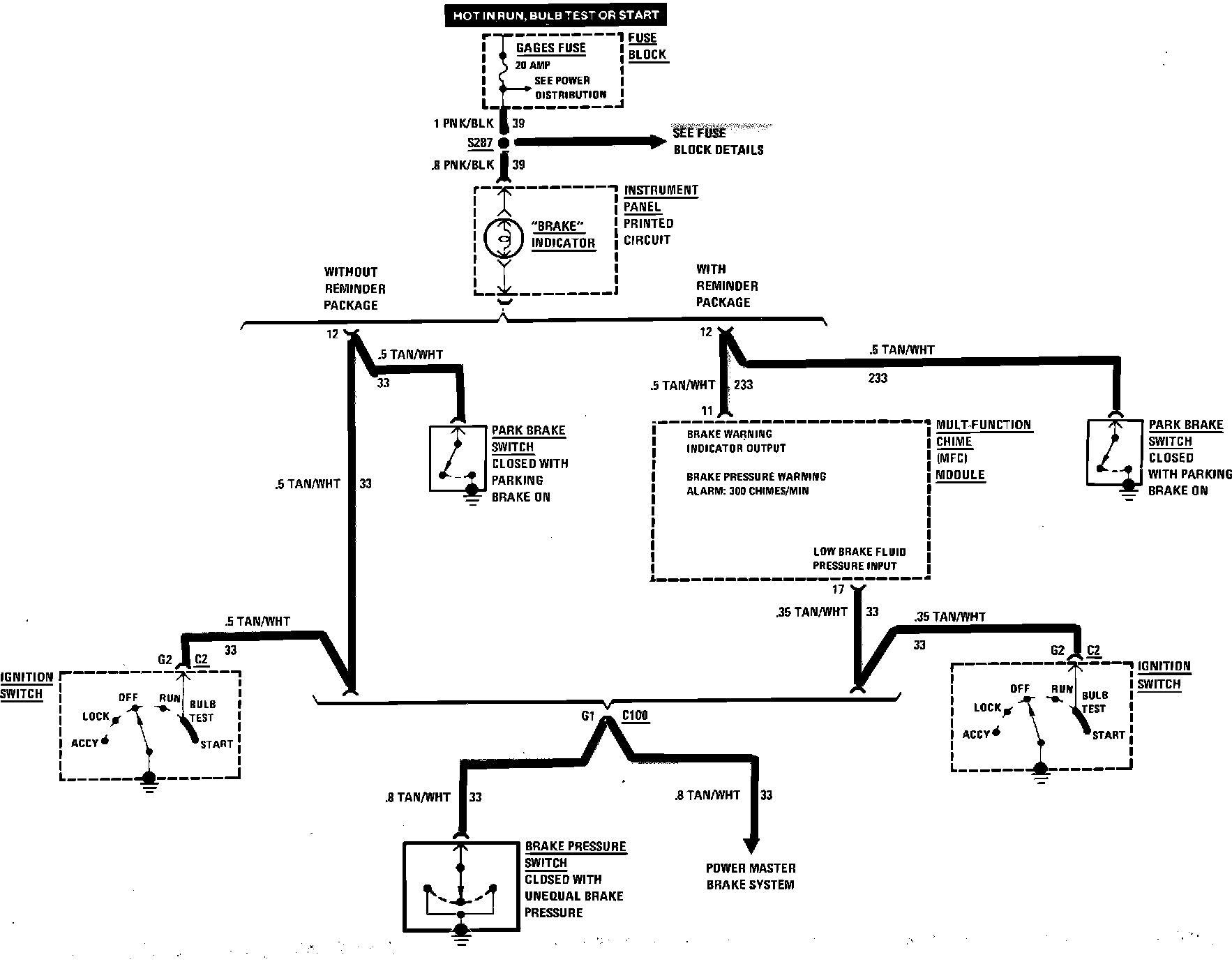

Brake Warning System Wiring Circuit (Less Power Master Brake System):
