Home
>>
Oldsmobile
>>
1986
>>
Ciera V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Engine Circuits VIN X
Engine Circuits VIN X

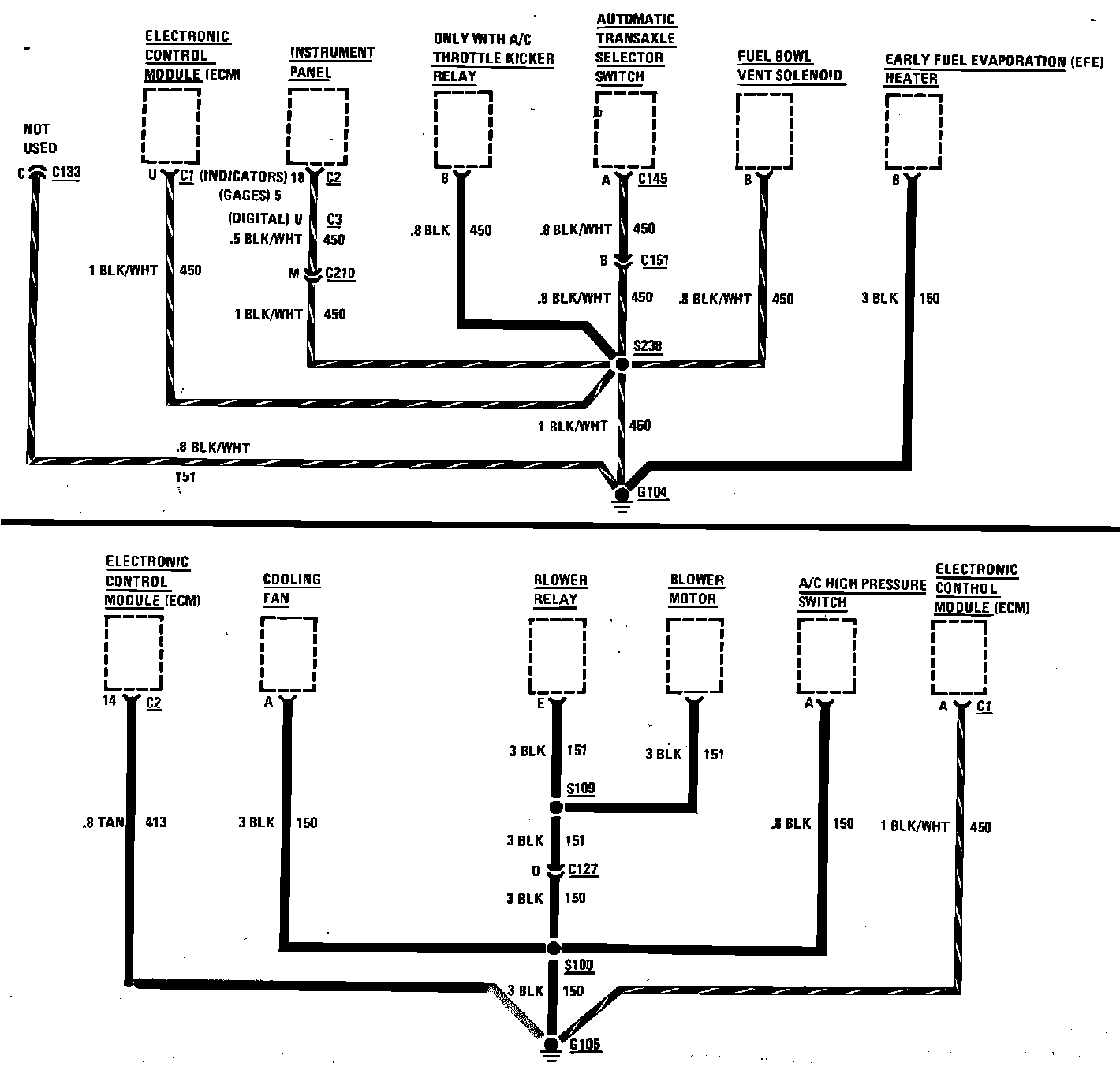

Ground Distribution (Engine Circuits) VIN X:
