Ciera V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Compressor Controls
>>
VIN W
VIN W

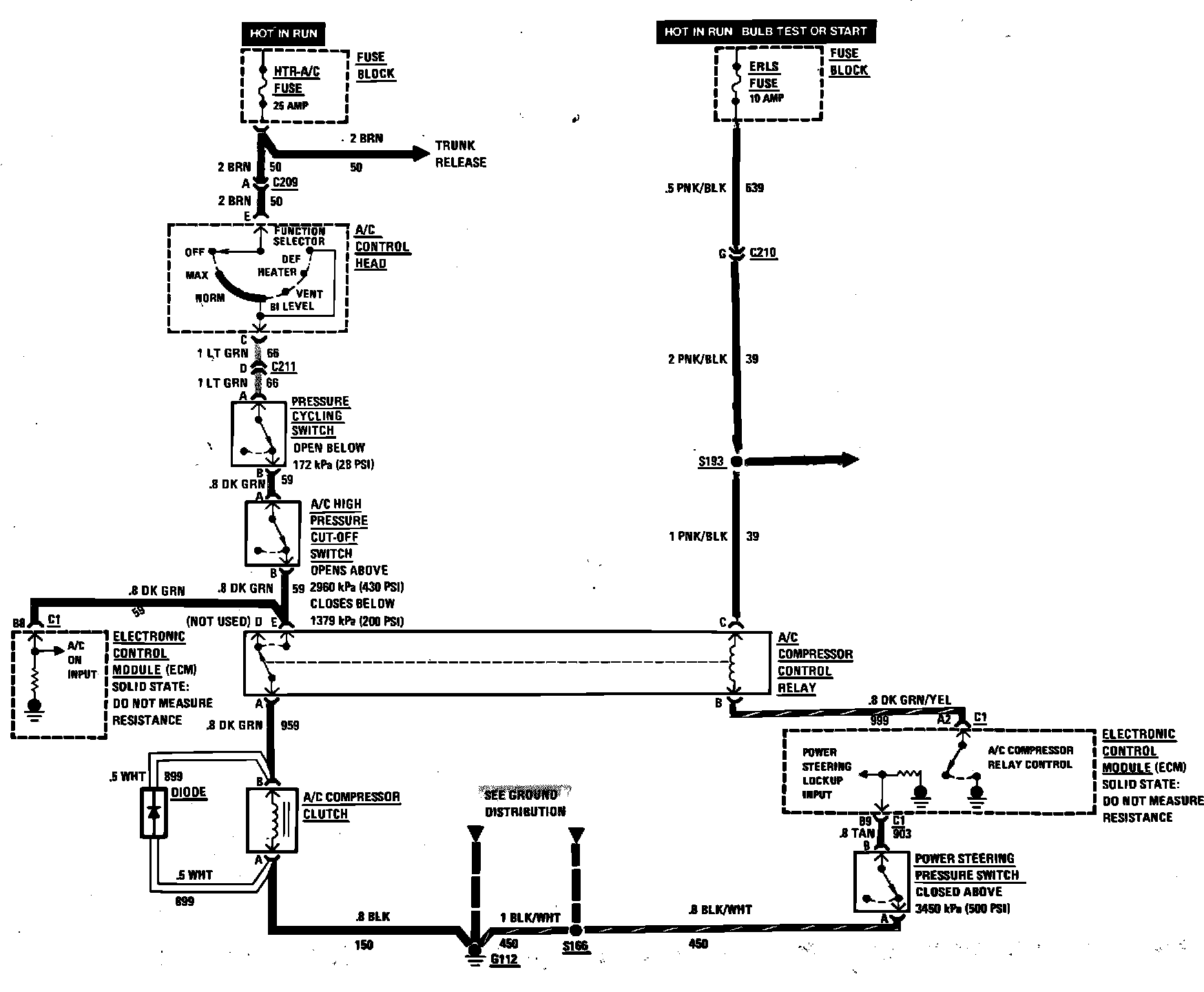

Air Conditioning Compressor Control Wiring Circuit VIN W:
