Home
>>
Oldsmobile
>>
1986
>>
Ciera L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Front Lighting Circuit
Front Lighting Circuit

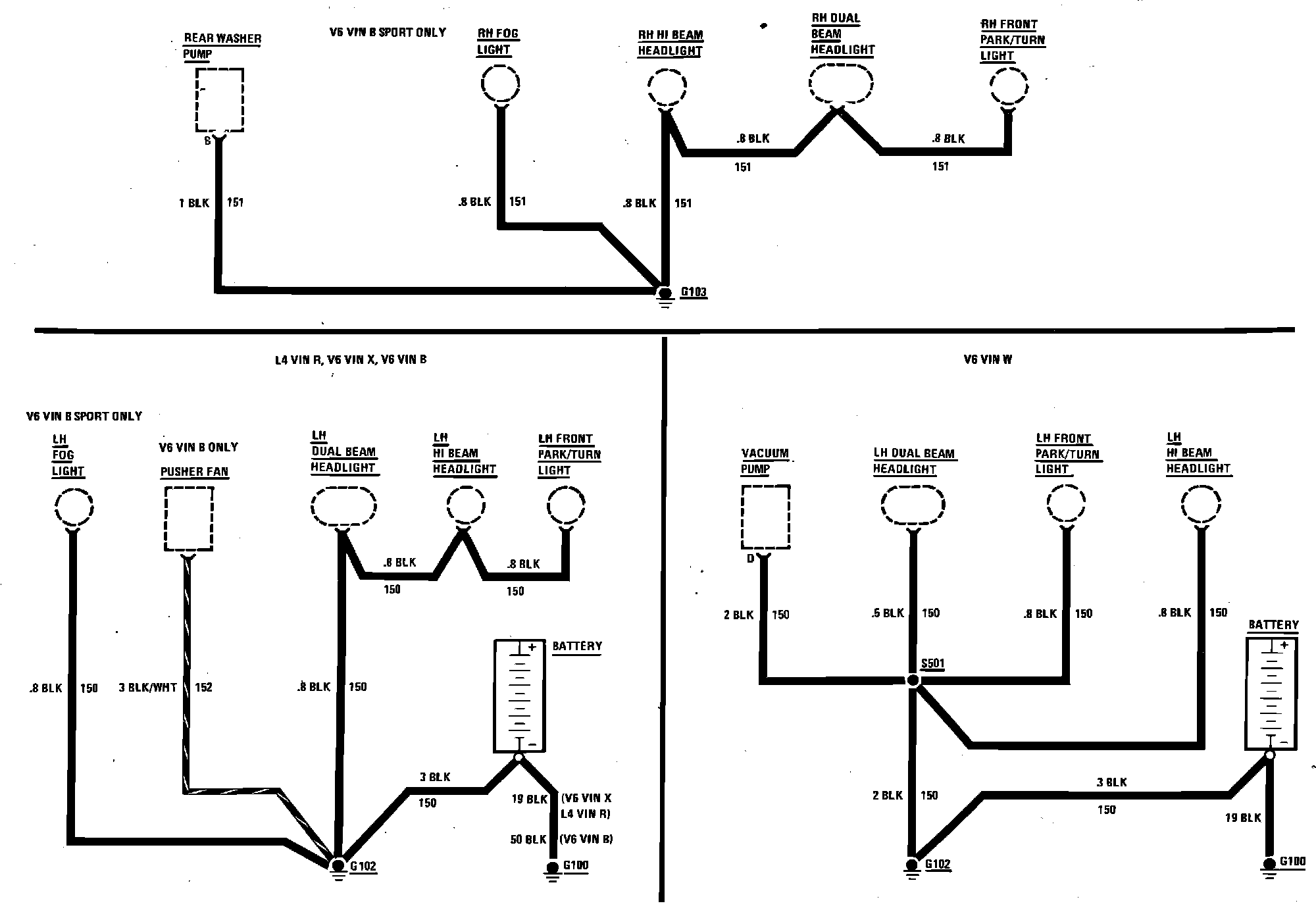

Ground Distribution (Front Light Circuits):
