Campaign - Unleaded Fuel Only Warning Label Missing
SUBJECT "UNLEADED FUEL ONLY" WARNING MISSING NUMBER:86-E-03DATE: Sept. 29, 1986
MODELS/YEARS CERTAIN 1986 CALAIS MODELS SECTION: 6C
CONDITION
General Motors has determined that some 1986 Oldsmobile Calais models equipped with automatic transaxle, column shift, and standard instrument panel cluster may have been assembled without the "Unleaded Fuel Only" warning on the instrument panel cluster. This is a violation of the Environmental Protection Agency's (EPA) Advisory Circular Number 32B.
VEHICLES INVOLVED
Involved are certain 1986 Calais models equipped with an automatic transaxle, column shift and standard instrument panel cluster within the following serial numbers:
Up To
Assembly Plant Beginning And Including
Lansing (M) GM318594 GM325971
DEALER ACTION
To correct this condition on vehicles involved, the instrument panel cluster will require inspection for the presence of the "Unleaded Fuel Only" warning.
If the warning is not present, an "Unleaded Fuel Only" decal must be installed as described in the Service Procedure section of this bulletin.
Since decals can be installed very easily and because we do not want to cause owners unnecessary inconvenience, "Unleaded Fuel Only" decals are being furnished directly to affected owners of record. Owners may install the decal personally or they may request dealer assistance for installation.
If requested, dealers are to perform this recall campaign on affected vehicles at no charge to the owner regardless of time, mileage, or ownership. In addition, dealers are to correct all affected vehicles in dealer new and used car inventory prior to their sale..
Whenever a vehicle subject to this campaign is taken into your used car inventory in the future, you should take the steps necessary to be sure the campaign correction has been made before reselling the vehicle.
SERVICE PROCEDURE

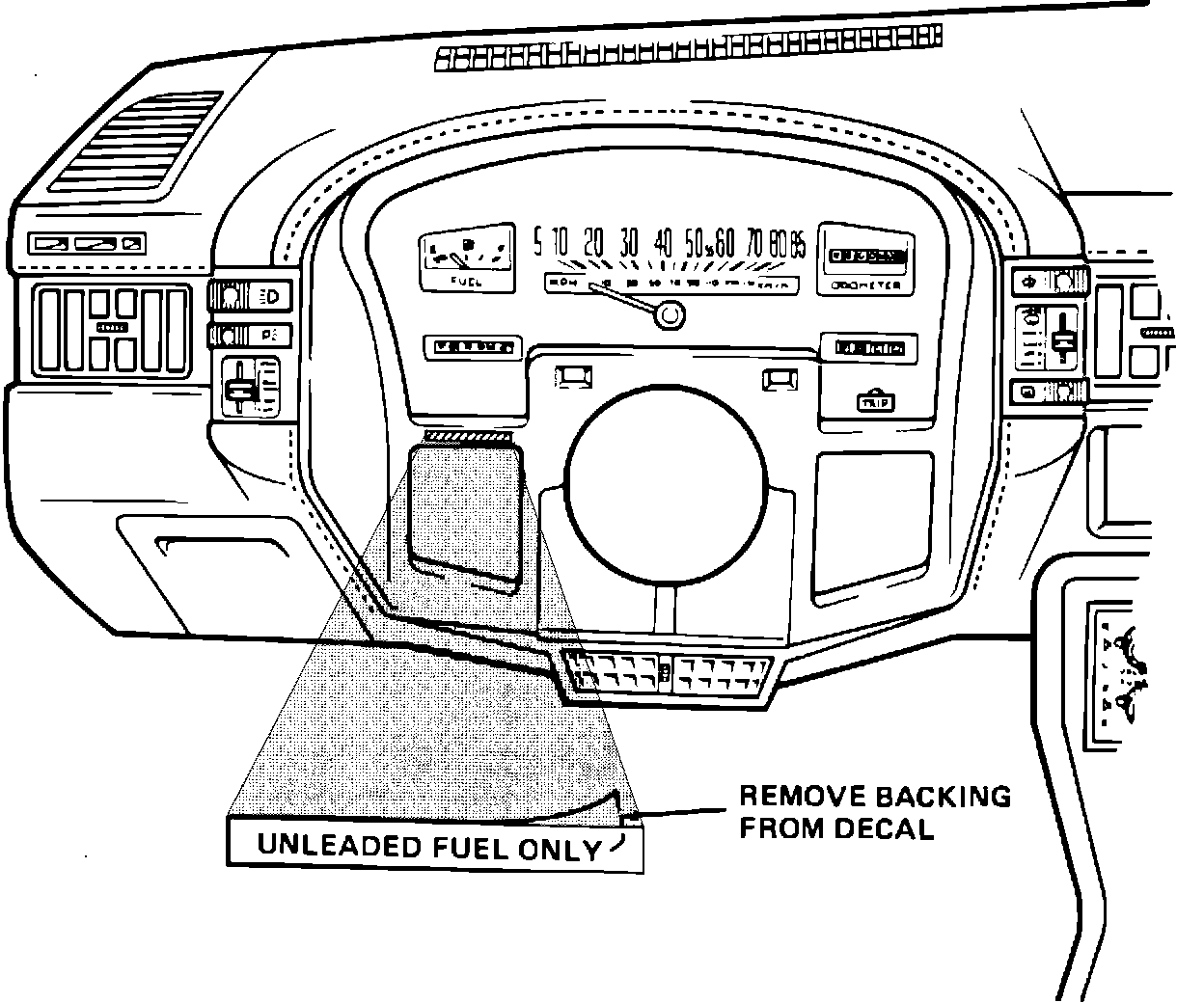

FIGURE 1:
1. Visually inspect the instrument panel cluster for the presence of the "Unleaded Fuel Only" warning. Refer to Figure 1.
2. If warning is not present, install decal using the following procedure:
A. Locate area on instrument panel cluster where the decal is to be applied. Refer to Figure 1.
B. Clean the surface by wiping with a clean dry cloth.
C. Remove backing from decal and carefully apply decal to instrument panel cluster.
3. Install a Campaign Identification label. Each vehicle modified in accordance with the instructions outlined in this Service Procedure will require a Campaign Identification label. Each label provides a space to include the campaign number, the five (5) digit dealer code of the dealer performing the campaign service, and the date vehicle was campaigned. This information may be inserted with a typewriter or ballpoint pen. When installing label, clean the surface of the radiator upper mounting support and apply the campaign label where it is readily visible.
DECAL INFORMATION
"Unleaded Fuel Only" decals will be furnished directly to affected owners of record with instructions for installation. Owners may install the decal personally or request that it be installed by an Oldsmobile dealership. Owners will be advised to bring the decal with them if they elect to have a dealership install it.
The correct quantity of decals is enclosed with this Campaign Bulletin for VINs on your campaign list with no owner name. These decals are being provided on a "NO CHARGE" basis. They WILL NOT BE billed on dealer parts account. Dealers should not order for WDDGM.
If transfer, loss or damage make additional decals necessary, contact your zone office.
WARRANTY CLAIM INFORMATION
Description Failure Code Labor Operation Labor Hours
Install Decal 96 V3620 .2
.1 hour for clerical administration may be added to the above operation.
Dear Oldsmobile Owner:
General Motors has determined that some 1986 Oldsmobile Calais models equipped with automatic transaxle, column shift, and standard instrument panel cluster may have been assembled without the "Unleaded Fuel Only" warning on the instrument panel cluster. This is a violation of the Environmental Protection Agency's (EPA) Advisory Circular Number 32B.
Rather than asking you to return to your Oldsmobile dealer to have your vehicle inspected for the presence of the "Unleaded Fuel Only" warning, it is believed you may wish to make the inspection yourself and, if necessary, install an "Unleaded Fuel Only" decal. For your convenience we have enclosed a decal should it be required. If your car was assembled without the "Unleaded Fuel Only" warning, you may install the decal yourself or take it to an Oldsmobile dealer for installation at no charge to you.
Inspection and decal installation instructions are as follows:

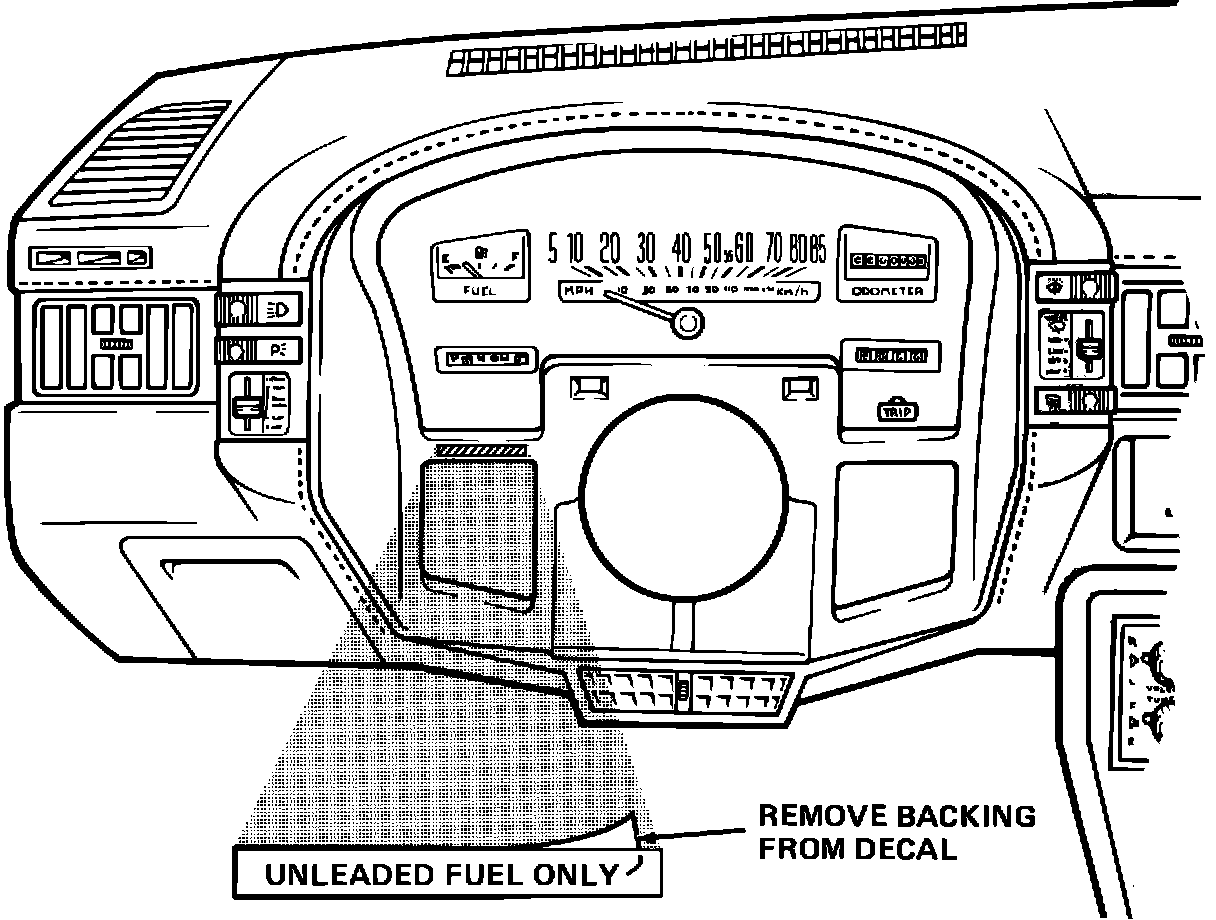

1. Visually inspect the instrument panel cluster for the presence of the "Unleaded Fuel Only" warning. Refer to the illustration on the reverse side of this letter. If the warning is present, no further action is necessary and you may discard the decal.
2. If the warning is not present, install decal using the following procedure:
A. Locate area on instrument panel cluster where the decal is to be applied. Refer to the illustration.
B. Clean the surface by wiping with a clean dry cloth.
C. Remove backing from decal and carefully apply decal to instrument panel cluster.
Should you choose to have an Oldsmobile dealer install the decal, please contact your dealer to arrange a mutually satisfactory service date to have this correction performed. Take the enclosed decal with you. The labor time to perform this correction is approximately 5 minutes. Please allow additional time for the dealer to process your vehicle.
The enclosed owner reply card identifies your vehicle. When you install the "Unleaded Fuel Only" decal or if you have sold or traded your vehicle, please let us know by completing the postage paid owner reply card and returning it to us.
We are sorry to cause you this inconvenience; however, we have taken this action in the interest of your continued satisfaction with our products. We appreciate your assistance.
TO ALL OLDSMOBILE DEALERS:
Oldsmobile Division is releasing Campaign 86-E-03 involving certain 1986 Calais models equipped with an automatic transaxle, column shift, and a standard instrument panel cluster. These vehicles may have been assembled without the "Unleaded Fuel Only" warning on the instrument panel cluster. This is a violation of the Environmental Protection Agency's (EPA) Advisory Circular Number 32B.
To correct this condition on vehicles involved, the instrument panel cluster will require inspection for the presence of the "Unleaded Fuel Only" warning.
If the warning is not present, an "Unleaded Fuel Only" decal must be installed as described in the Service Procedure section of Emission Campaign Bulletin 86-E-03.
Since decals can be installed very easily and because we do not want to cause owners unnecessary inconvenience, "Unleaded Fuel Only" decals are being furnished directly to affected owners of record. Owners may install the decal personally or they may request dealer assistance for installation.
Dealers have been shipped sufficient quantities of decals to complete those vehicles on their printout which do not have an owner of record.
If your dealership has vehicles involved in this campaign, you will receive the following: one printout of vehicles in VIN sequence and one printout of vehicles in alphabetical sequence by owner name.
These printouts contain the complete Vehicle Identification Number and owner name and address data, and are furnished to the involved dealers with the campaign bulletin. Owner name and address data will enable dealers to follow up with owners involved in this campaign.
These listings may contain owner names and addresses obtained from State Motor Vehicle Registration records. The use of such motor vehicle registration data for any other purpose is a violation of law in several states. Accordingly, you are urged to limit the use of this listing to the followup necessary to complete this campaign.
Enclosed with this letter are:
One Emission Campaign Bulletin 86-E-03 Copy of Owner Letter
Dealers with vehicles to correct will also receive:
One Printout of Vehicles in VIN Sequence One Printout of Vehicles in Alphabetical Sequence
Your cooperation in completing this campaign as soon as possible will be greatly appreciated.
