Engine Data Sensors & Vehicle Data Sensors
Engine Data Sensors & Vehicle Data Sensors

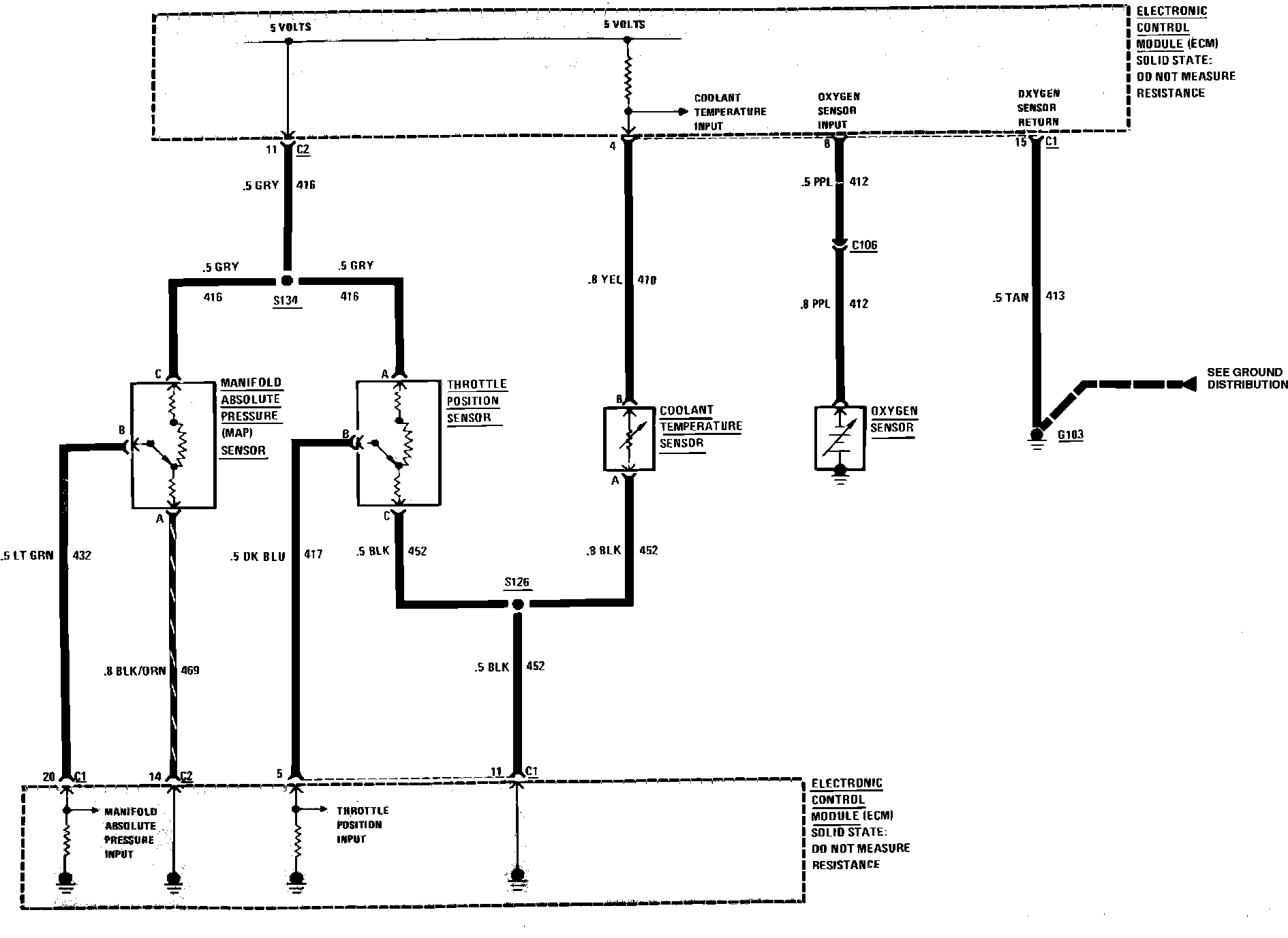

Throttle Body Fuel Injection Wiring Circuit (Engine Data Sensors):
