Oldsmobile
>>
1986
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G200, G201, Part 2 of 2
G200, G201, Part 2 of 2

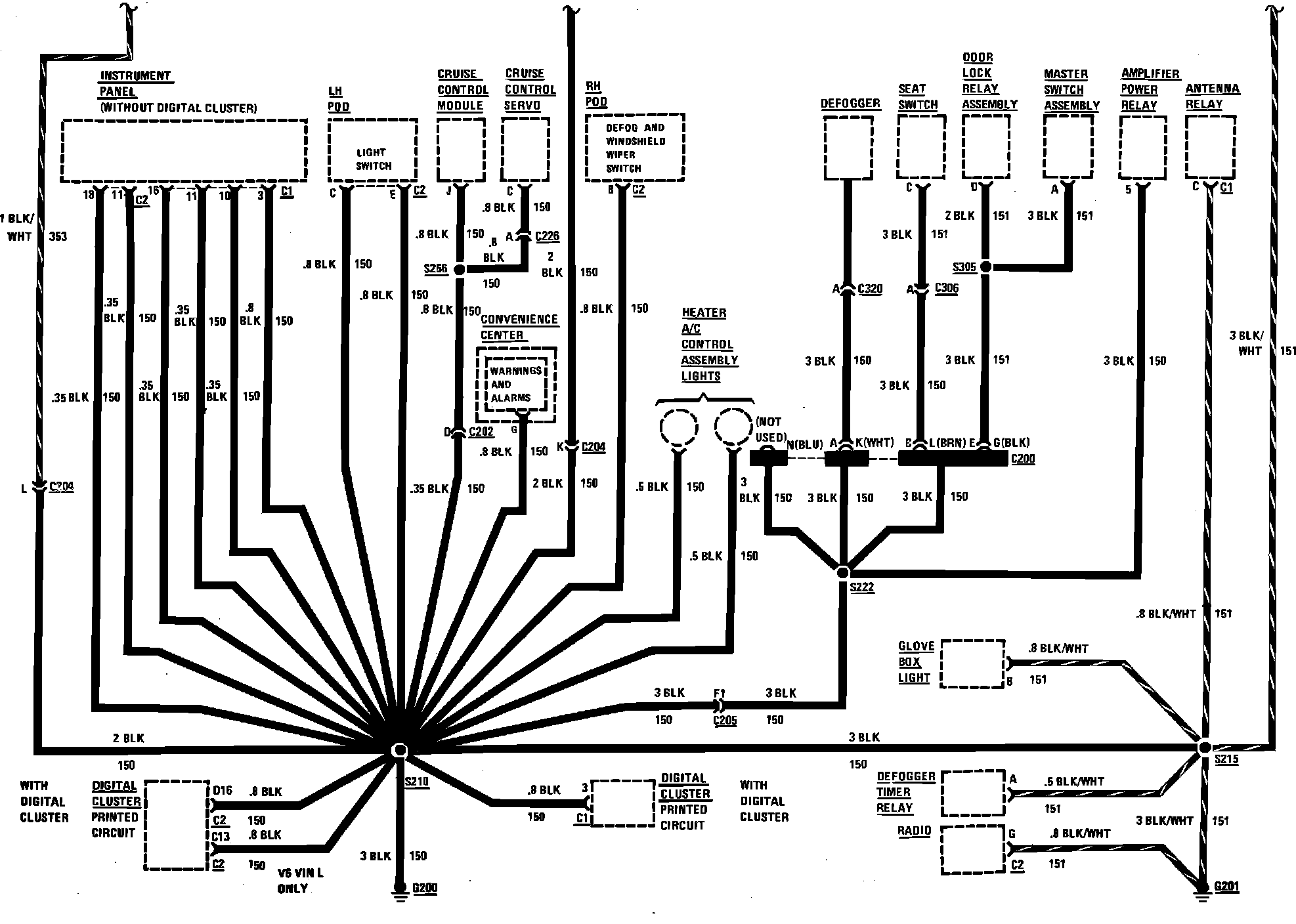

Ground Distribution Wiring Circuit (G200, G201, Part 2 Of 2):
