Home >> Oldsmobile >> 1986 >> Calais FWD L4-151 2.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Panel Illumination >> Less Digital Cluster

Less Digital Cluster

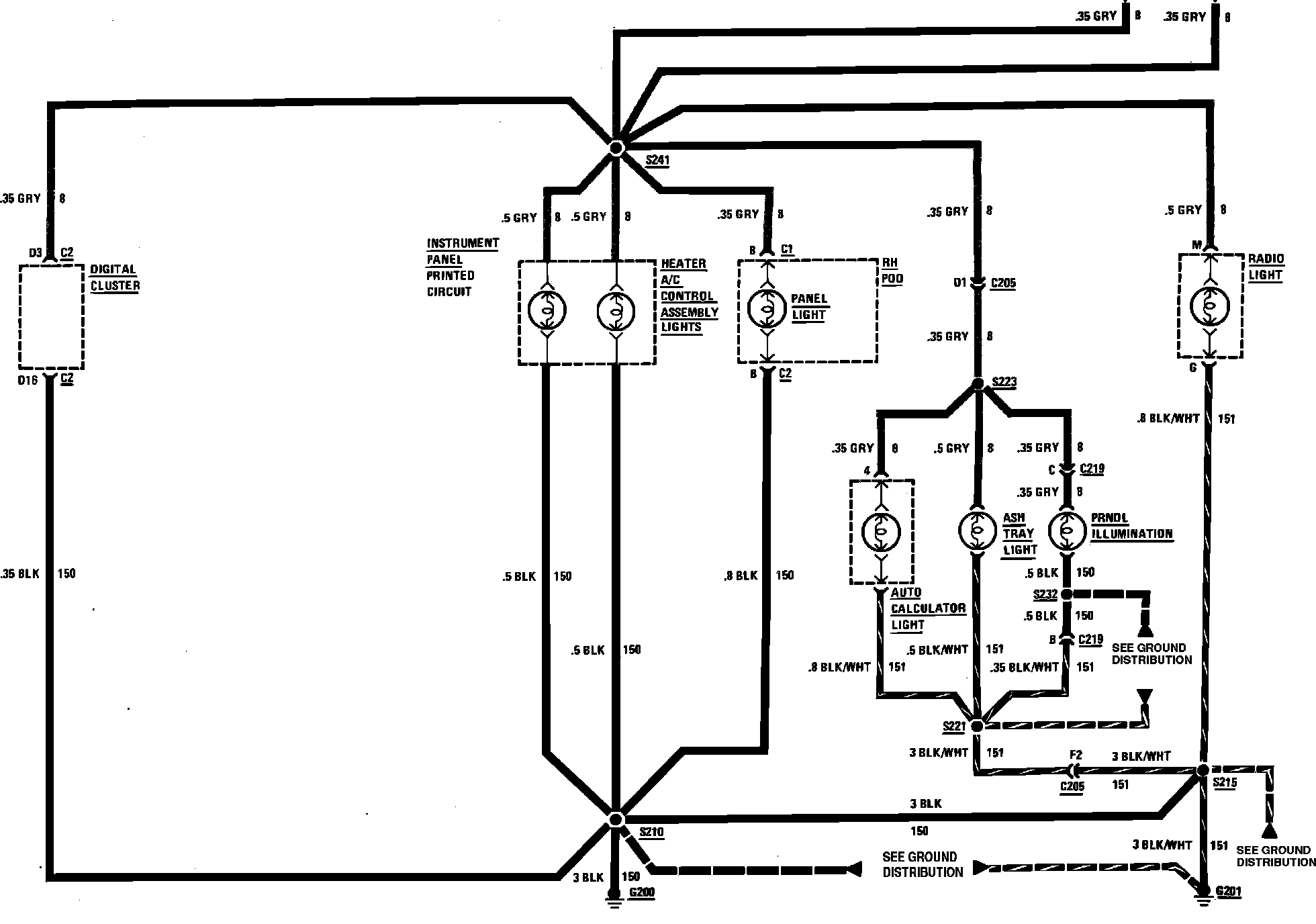

Interior Lights Dimming Wiring Circuit (Part 1 Of 2):

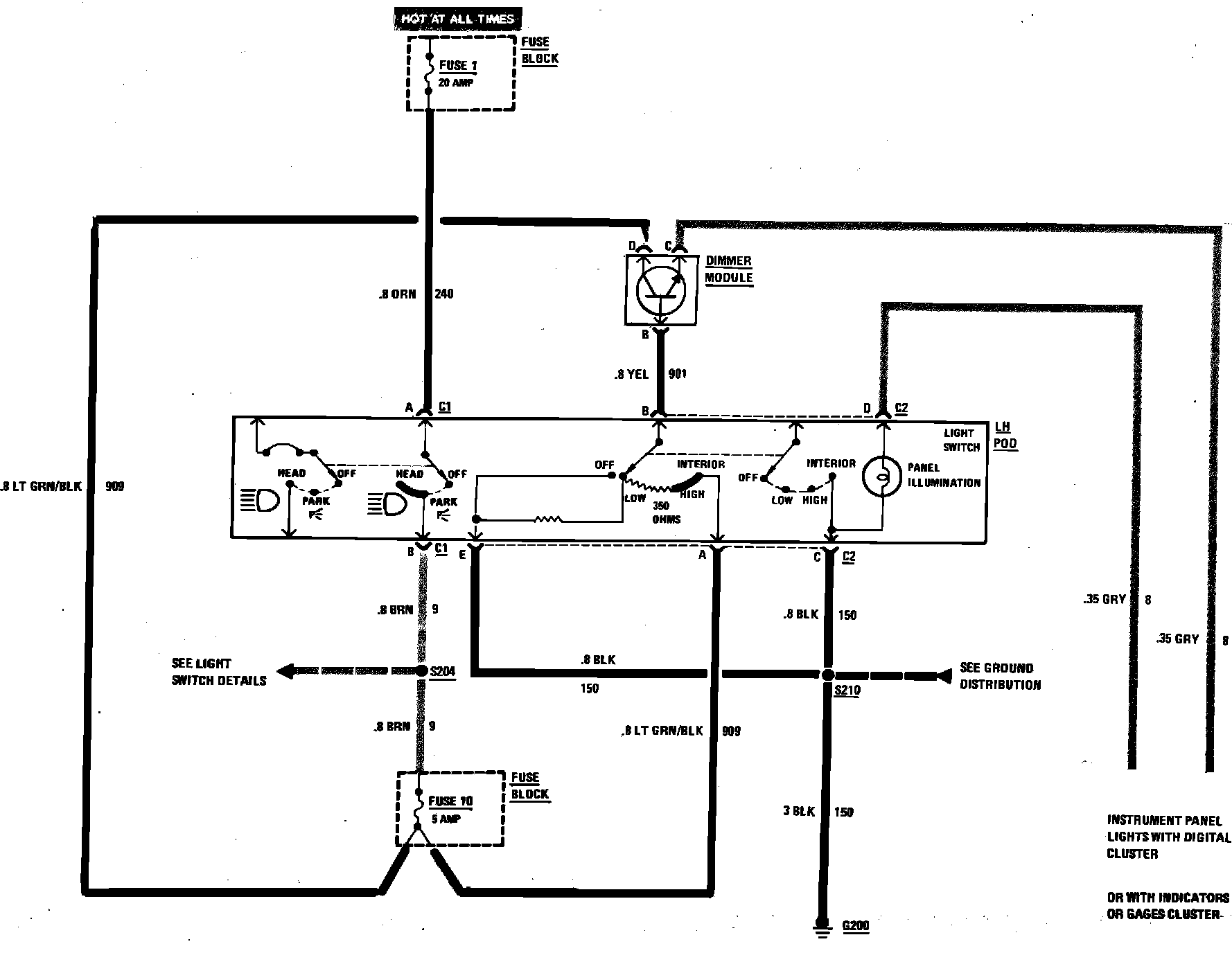

Interior Lights Dimming Wiring Circuit (Part 2 Of 2) With Digital Cluster:
