Test A: Blower Motor Test

Test A Blower Motor Test:

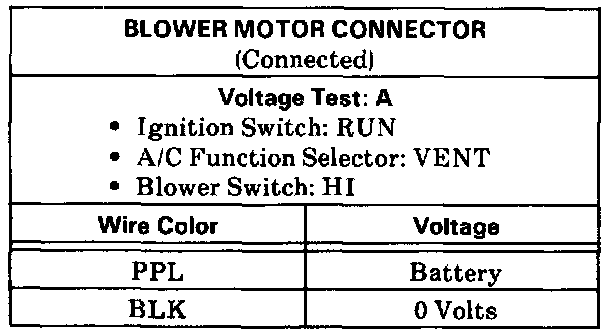

Check Fuse 22 by operating the Trunk Release. Measure the voltages to ground at the Blower Motor with the connectors in place.

^ If the voltages at the motor are correct, and connector pins are not loose but motor does not run, install a new Blower Motor.
^ If Battery voltage is not at the PPL wire, check the wire for opens. If wire is good, complete the A/C Function Selector and the Blower Relay tests.
