Turn Signals

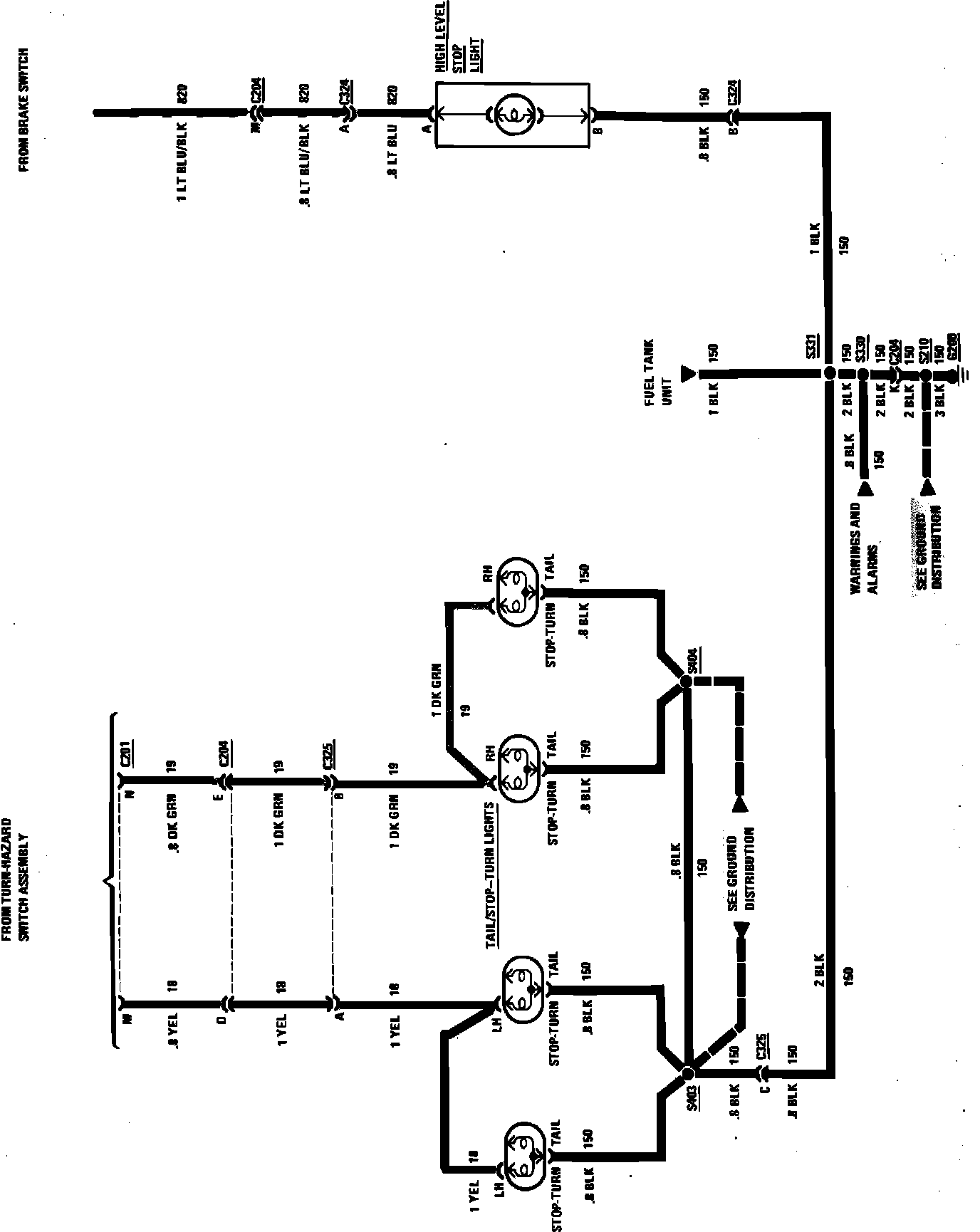

Front & Rear Lighting Wiring Circuit (Front Marker, Front Park, Hazard, Stop, Turn, Part 1 Of 2):

Front & Rear Lighting Wiring Circuit (Front Marker, Front Park, Hazard, Stop, Turn, Part 2 Of 2):
