Trunk Lamp
Trunk Lamp

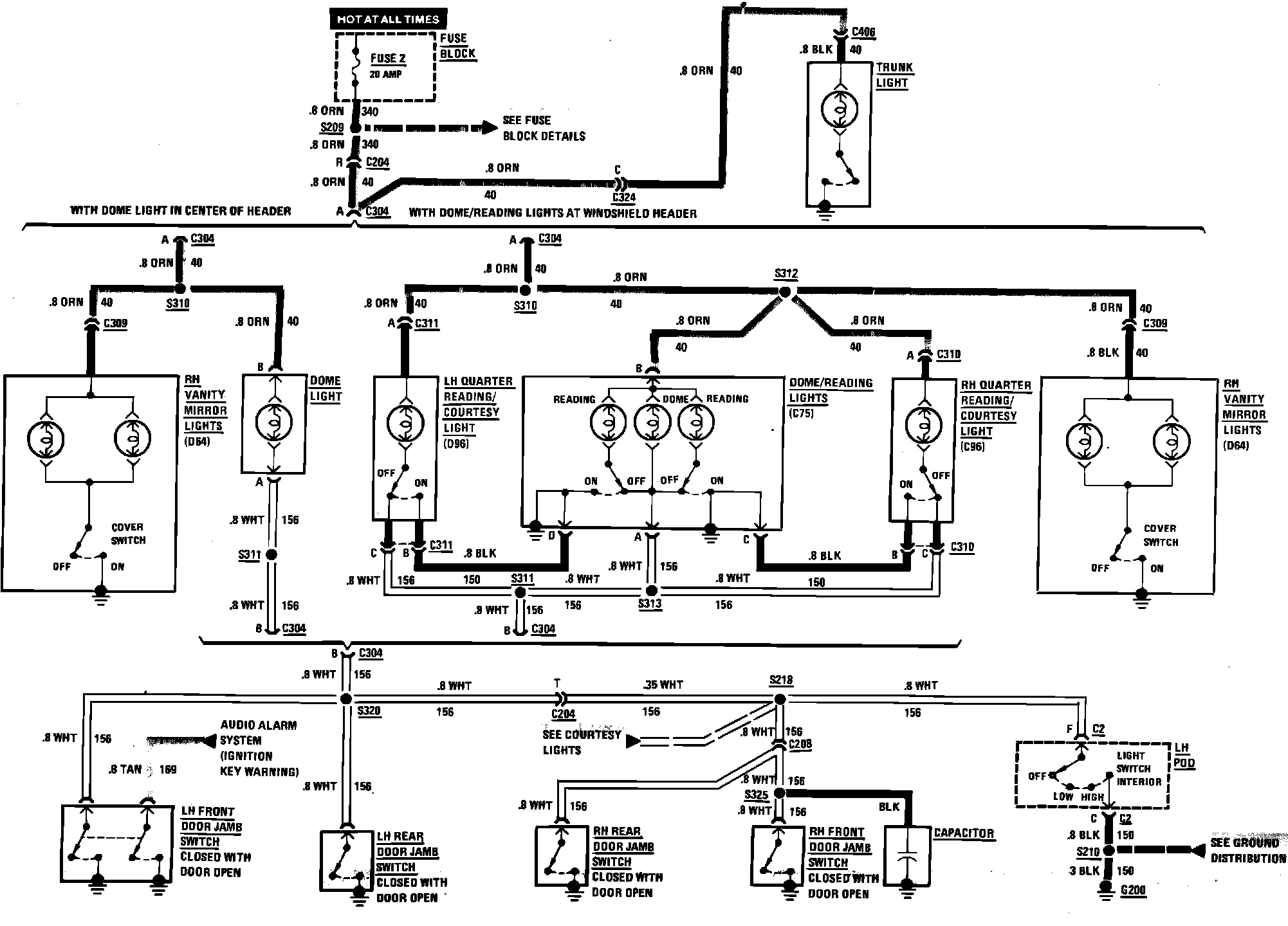

Interior Lights Wiring Circuit (Courtesy EXC. Console, Dome, Reading, Trunk, Vanity). W/Reading Lights:
