Radio, Stereo, and Compact Disc
>>
With Electronic Tuning
With Electronic Tuning

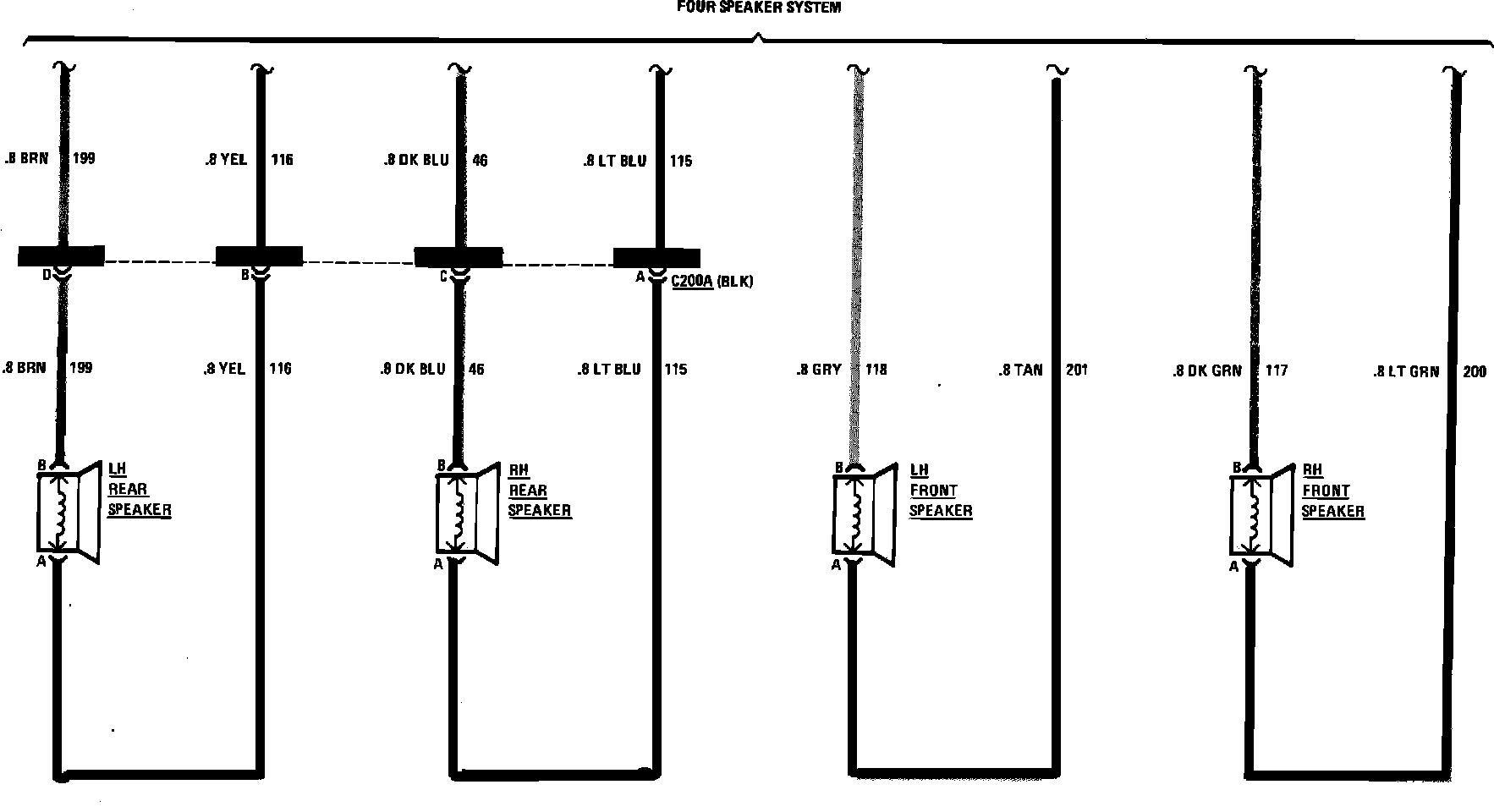

Radio Wiring Circuit (Part 2 Of 2) W/ETR:

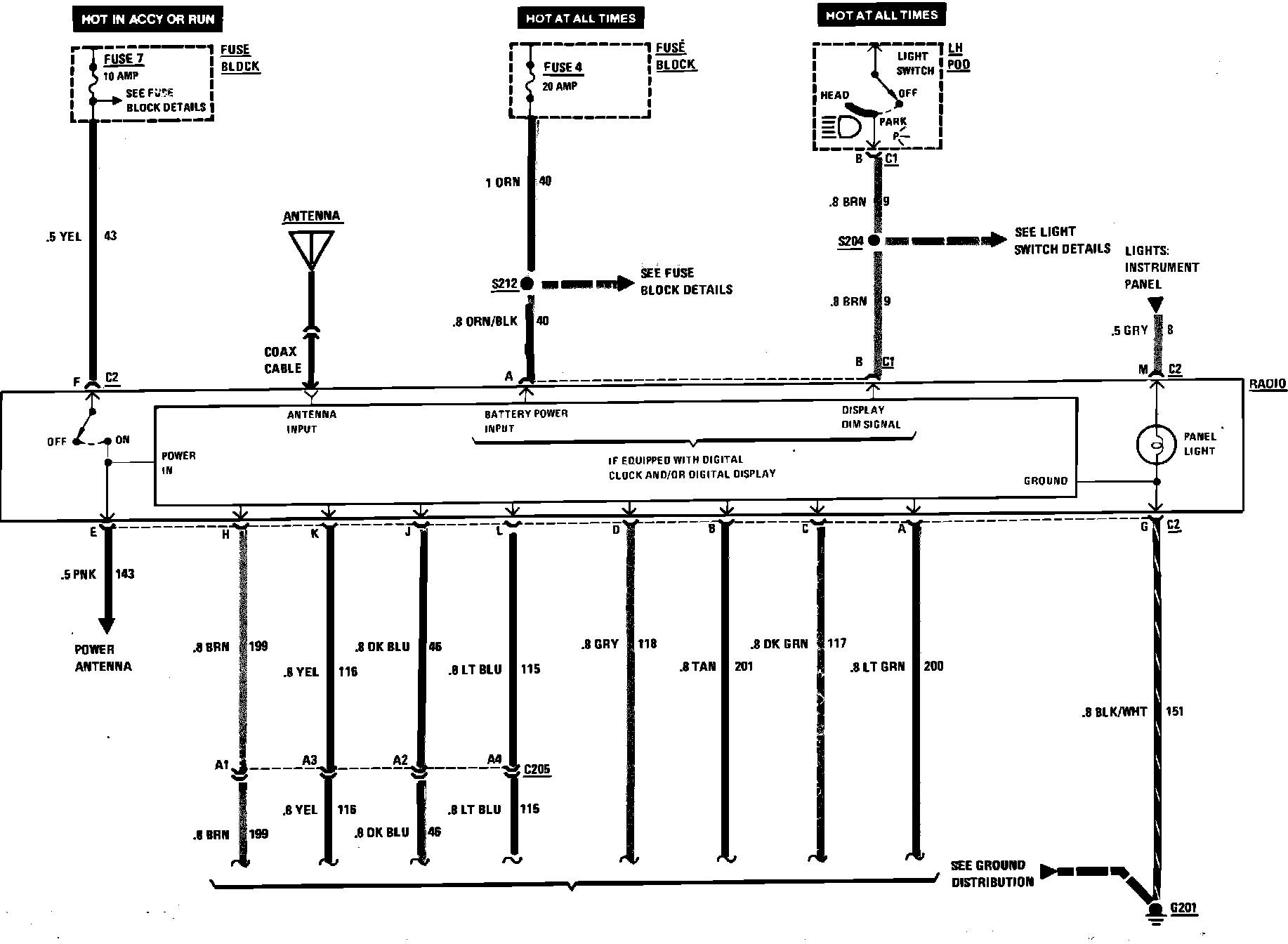

Radio Wiring Circuit (Part 1 Of 2) W/ETR:
