Home
>>
Oldsmobile
>>
1986
>>
Calais FWD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Delco Bose System
With Delco Bose System

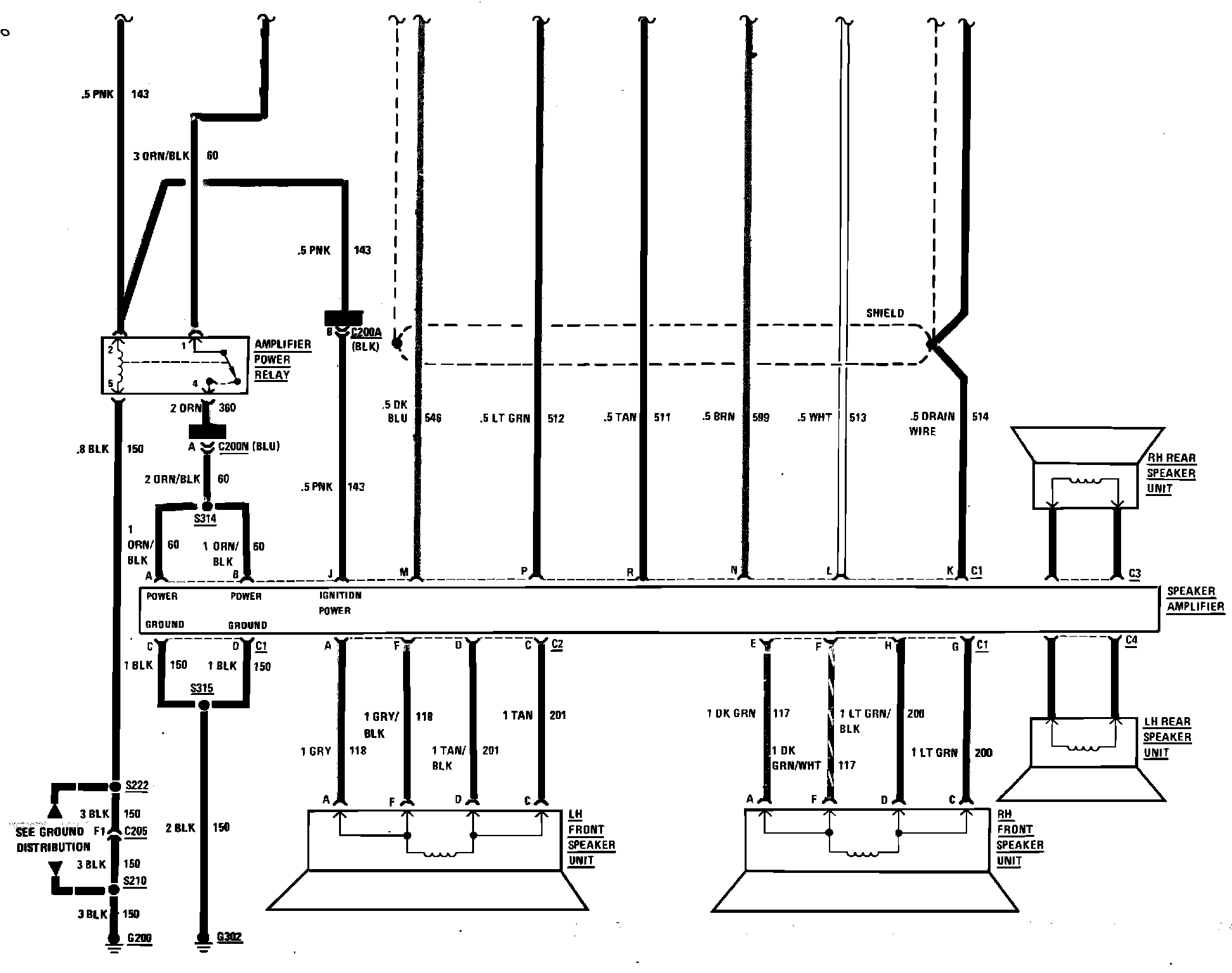

Radio Wiring Circuit (Part 1 Of 2) W/Delco-Bose Speaker System:

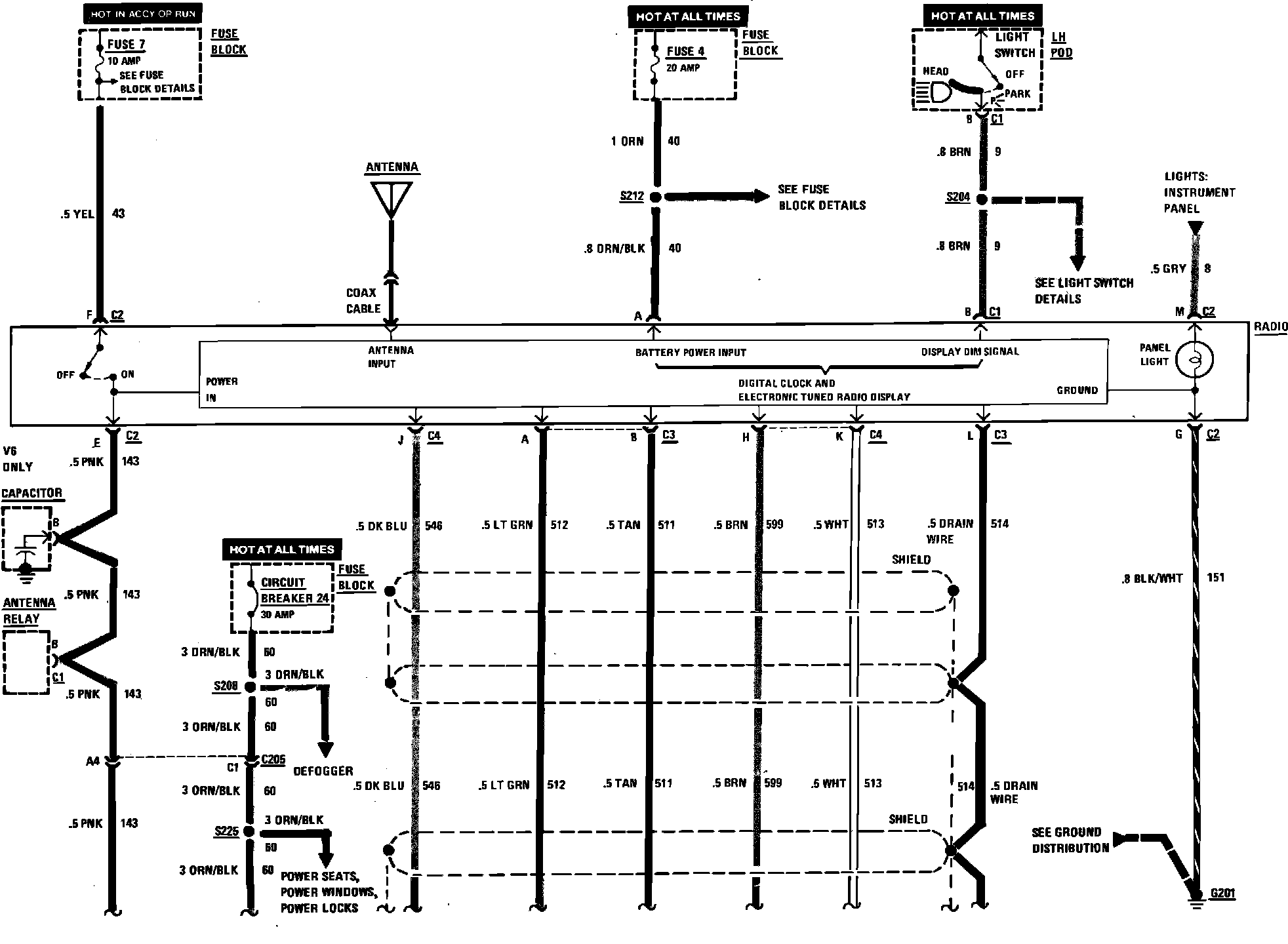

Radio Wiring Circuit (Part 2 Of 2) W/Delco-Bose Speaker System:
