Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel
>>
With Digital Cluster
With Digital Cluster
Instrument Panel Wiring Circuit:

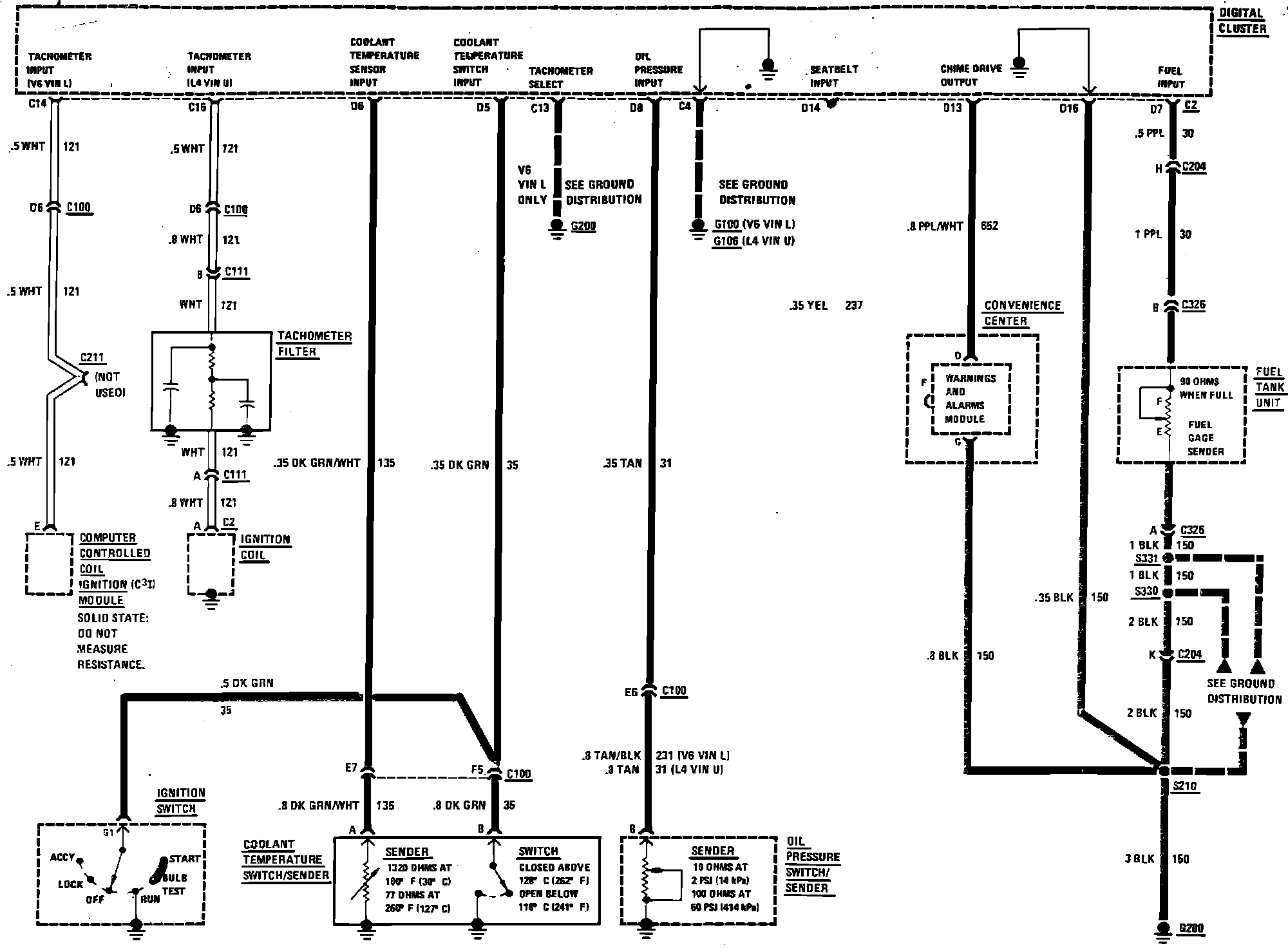

Instrument Panel Wiring Circuit (Digital Cluster, Part 1 Of 3):

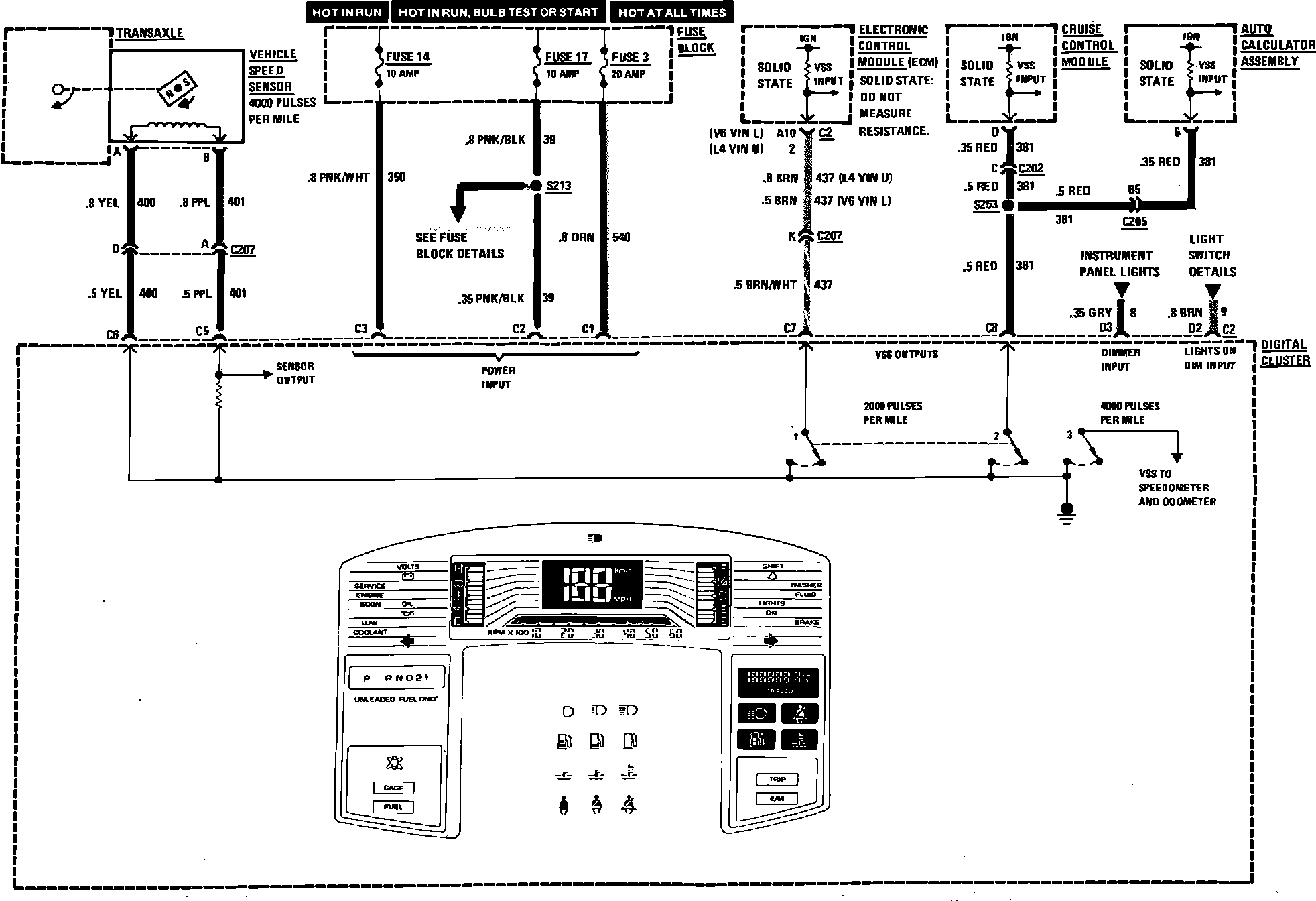

Instrument Panel Wiring Circuit (Digital Cluster, Part 2 Of 3):
