Home >> Oldsmobile >> 1986 >> Calais FWD L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> System Diagram >> Courtesy, Vanity (Less Reading Lights)

Courtesy, Vanity (Less Reading Lights)

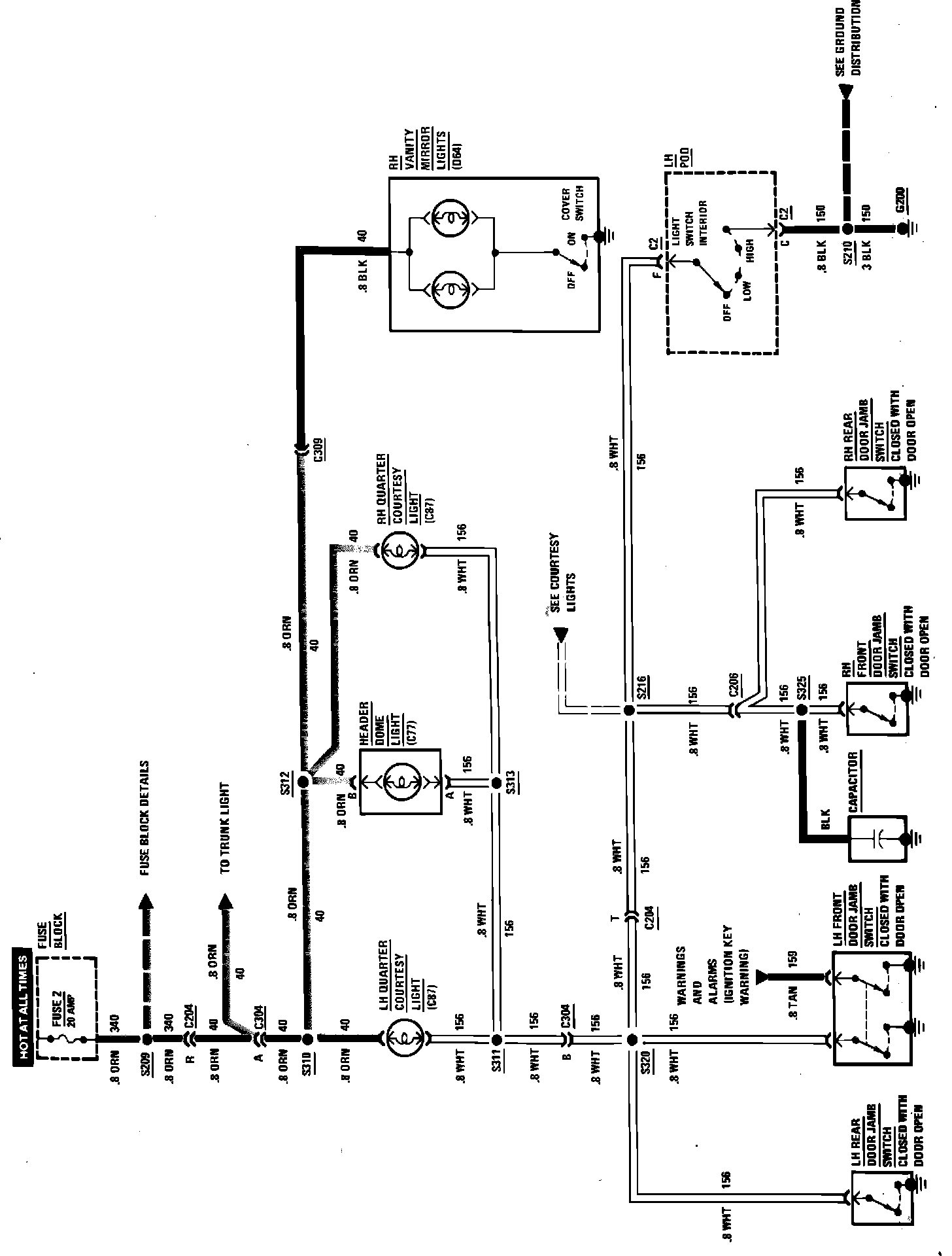

Interior Lights Wiring Circuit. (Courtesy, Vanity) Less Reading Lights:
