Oldsmobile
>>
1985
>>
Toronado V8-307 5.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

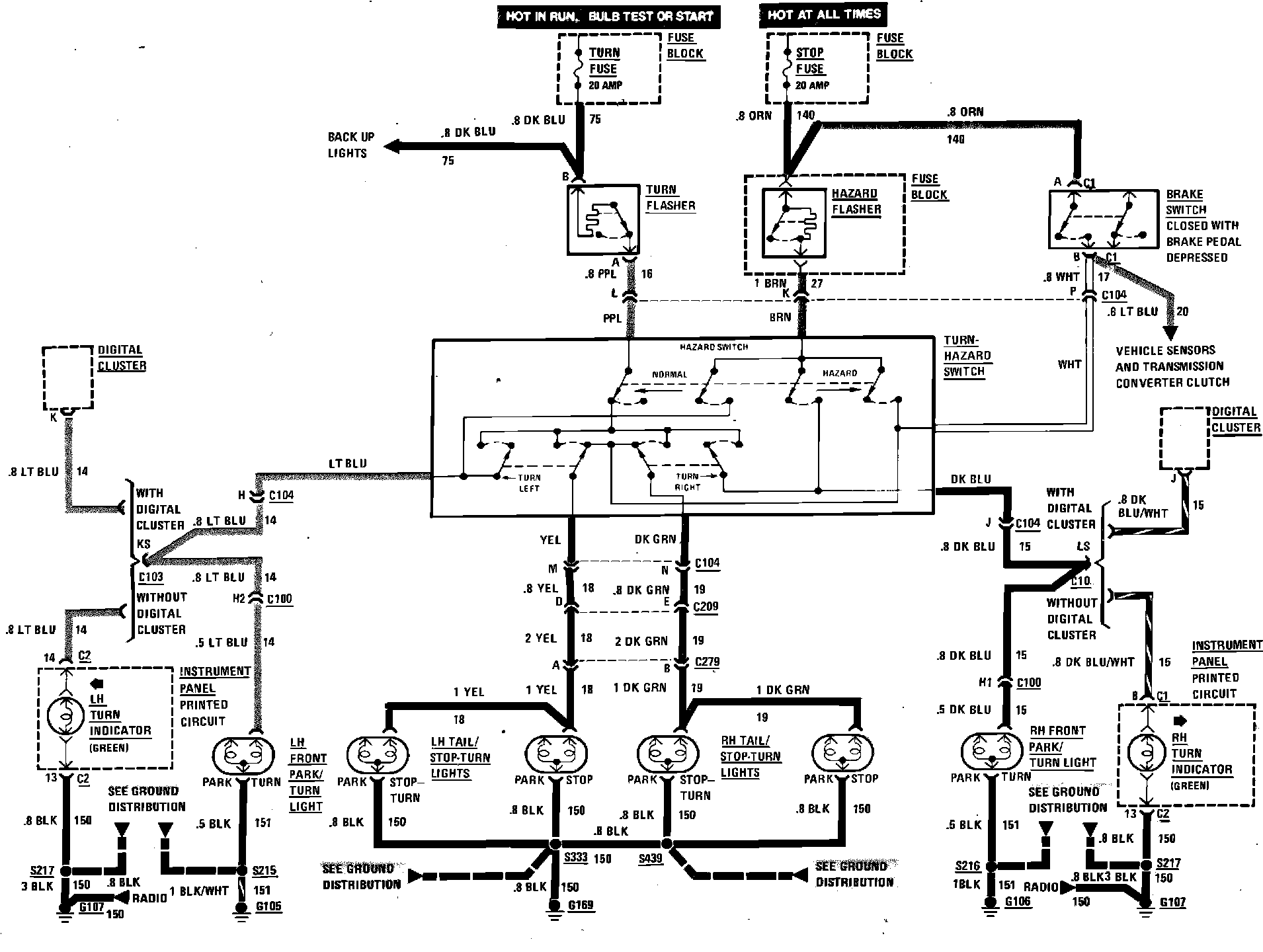

Hazard, Stop & Turn Lamp Wiring Circuit:
