Home >> Oldsmobile >> 1985 >> Toronado V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat Wiring Circuit >> With Memory (Part 2 of 2)

With Memory (Part 2 of 2)

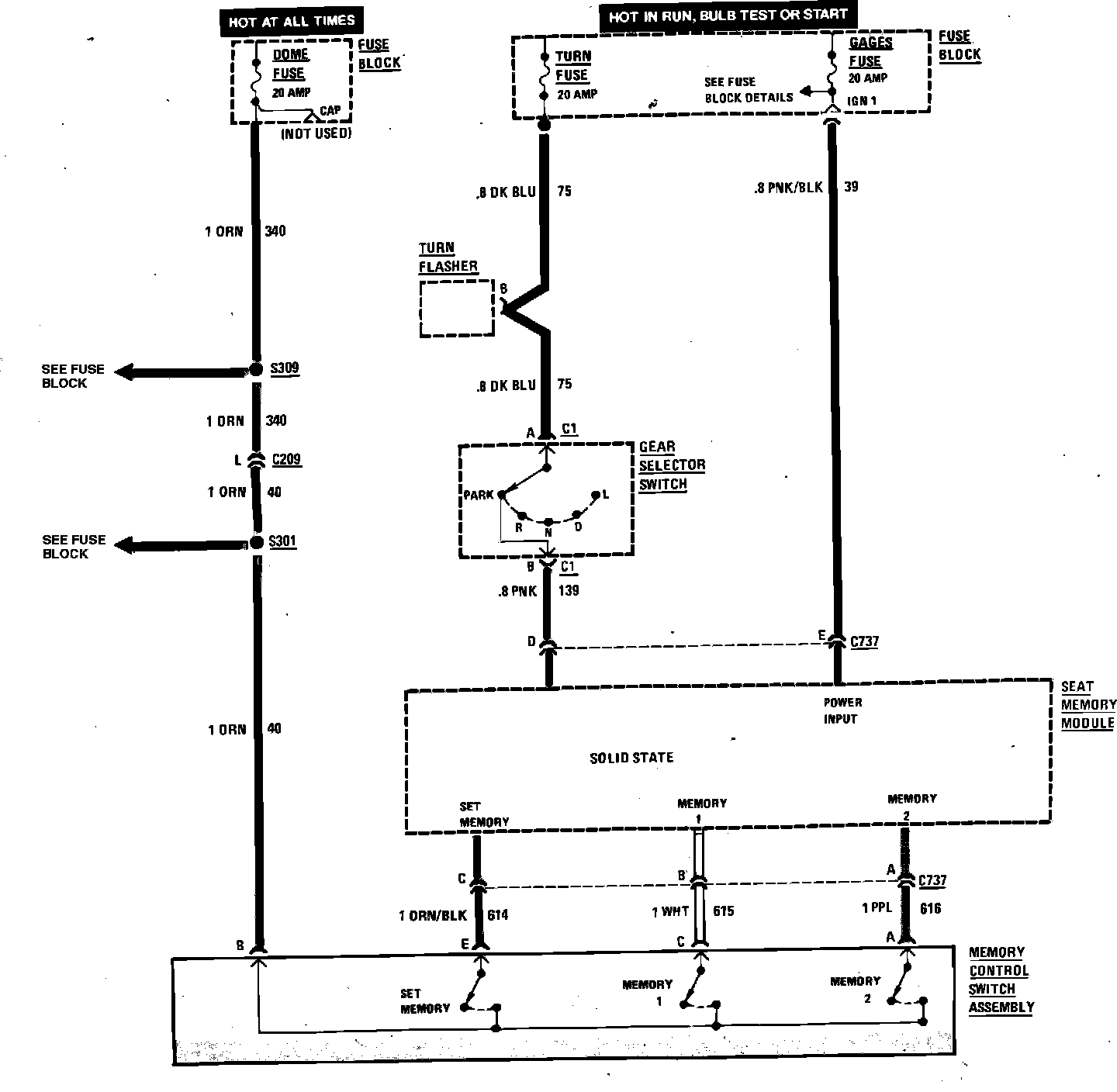

Power Seat With Memory Wiring Circuit:
