Home >> Oldsmobile >> 1985 >> Toronado V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat Wiring Circuit >> Less Memory Three Motors

Less Memory Three Motors

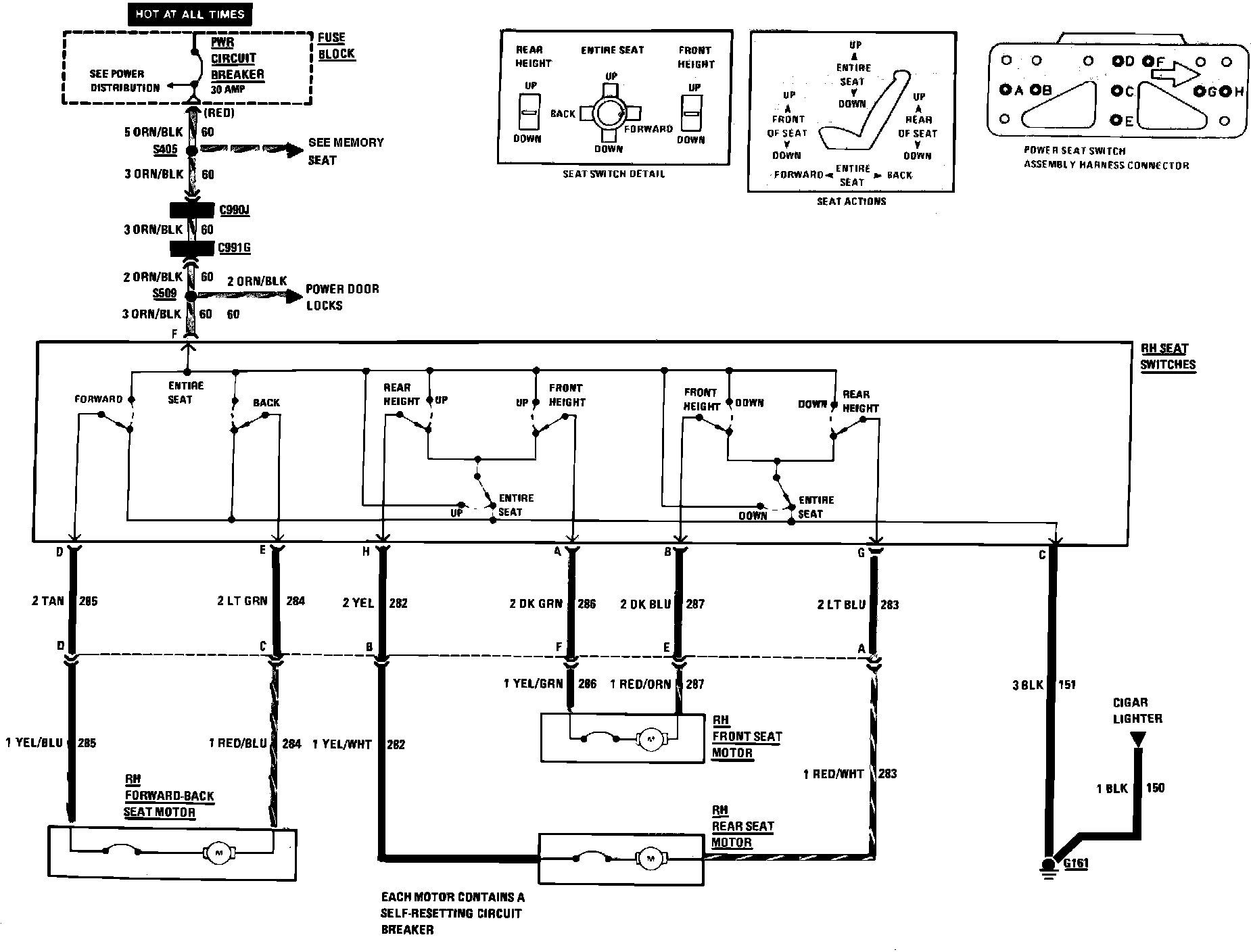

Power Seat (Three Motor) Wiring Circuit:
