Home
>>
Oldsmobile
>>
1985
>>
Toronado V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
With Automatic Door Locks
With Automatic Door Locks

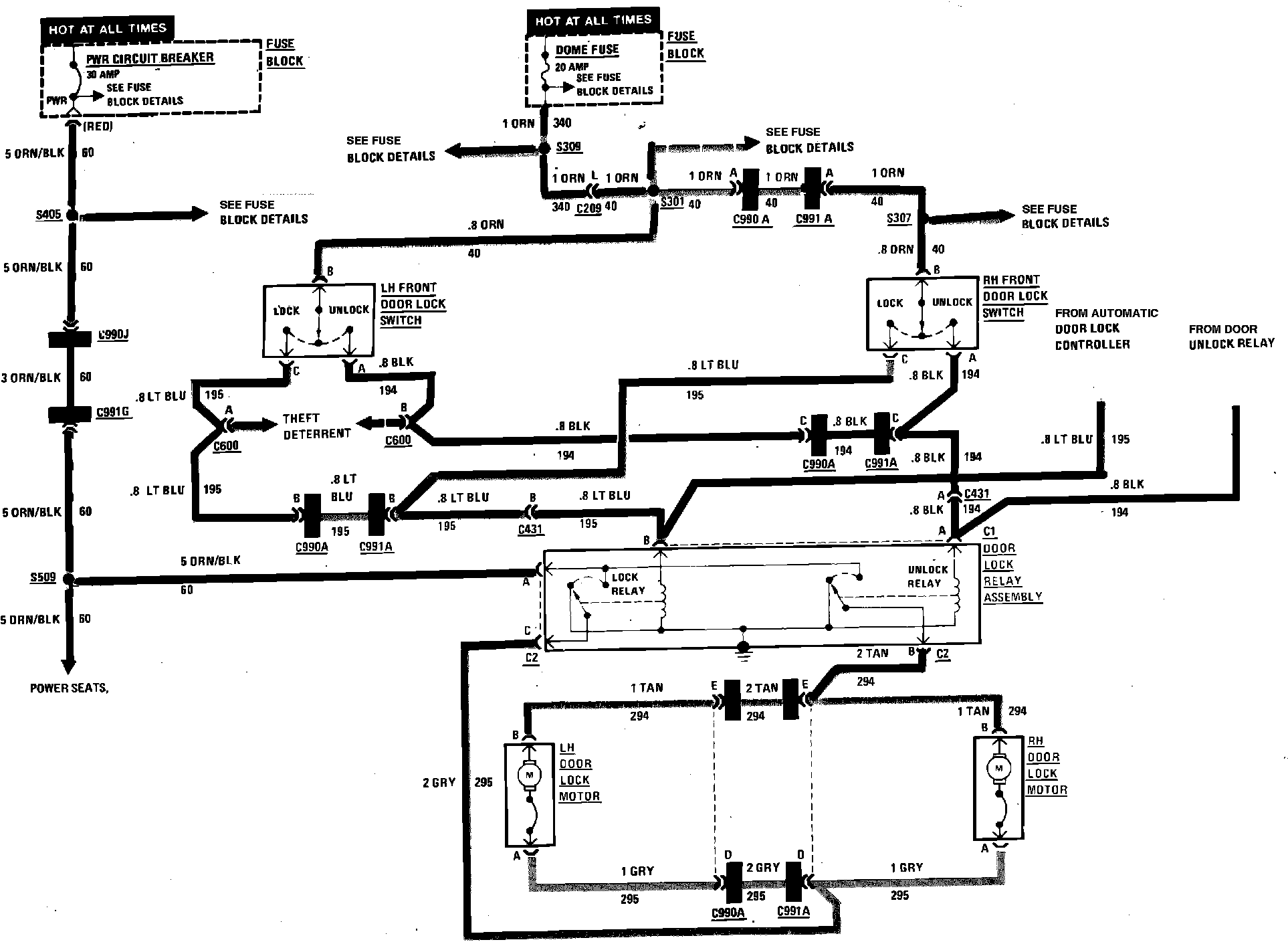

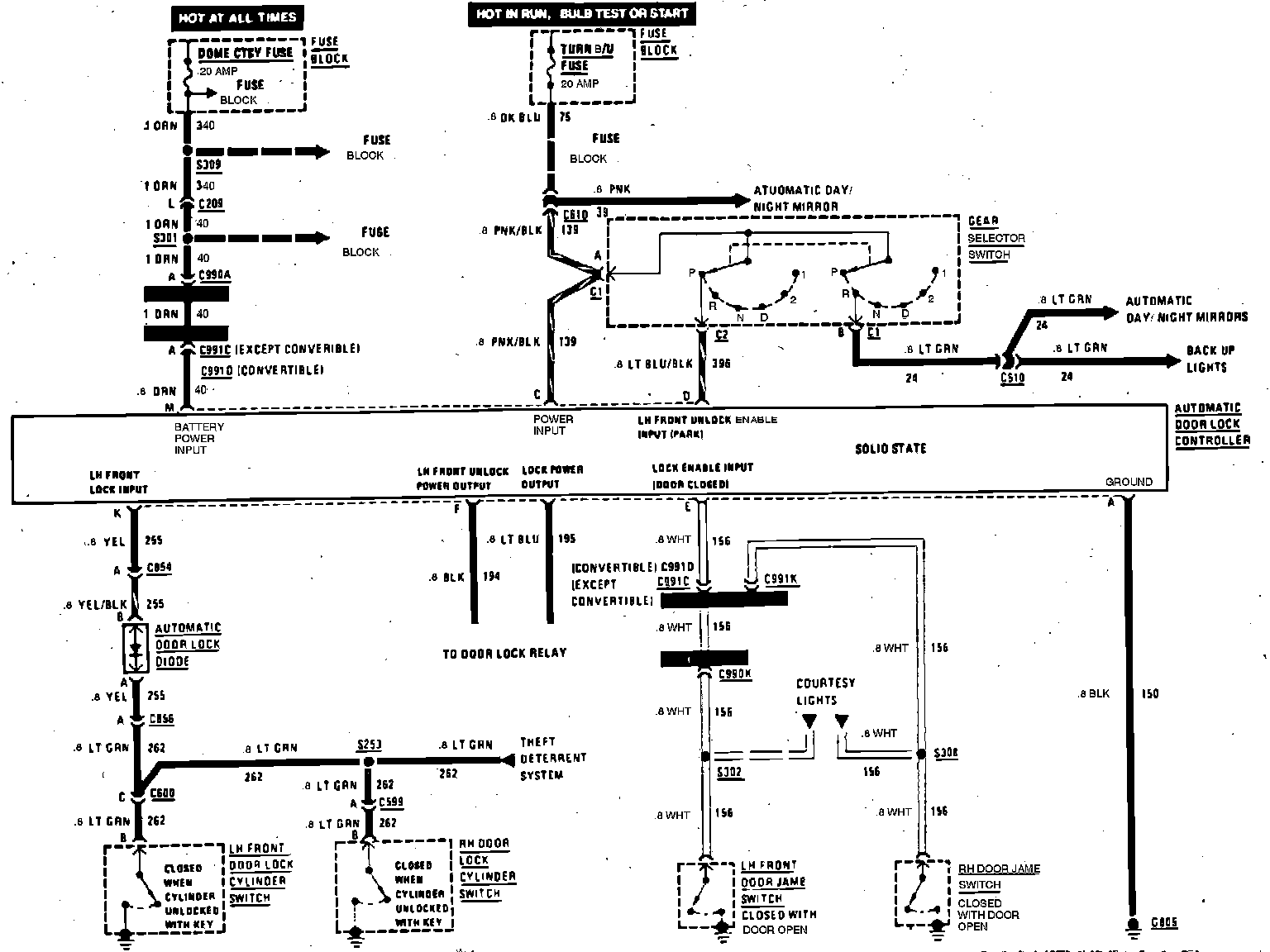

Automatic Door Lock Wiring Circuit:
Automatic Door Lock Wiring Circuit:
