Home >> Oldsmobile >> 1985 >> Toronado V8-307 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Compressor Controls >> With All Weather A/C >> Part 2 of 2

Part 2 of 2

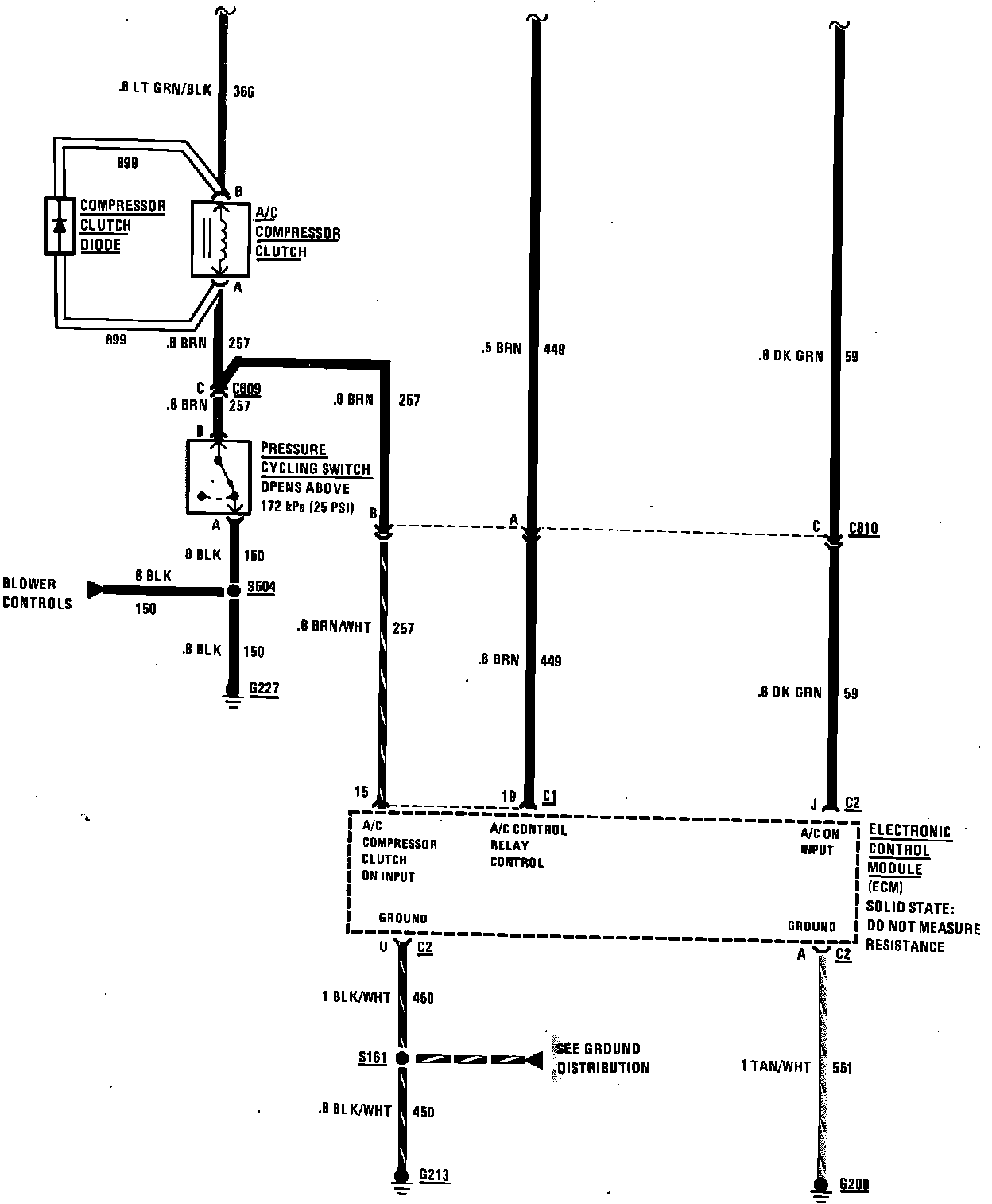

Air Conditioning Compressor Control Wiring Circuit (With All Weather Air Conditioning):
