Starter Solenoid: Locations

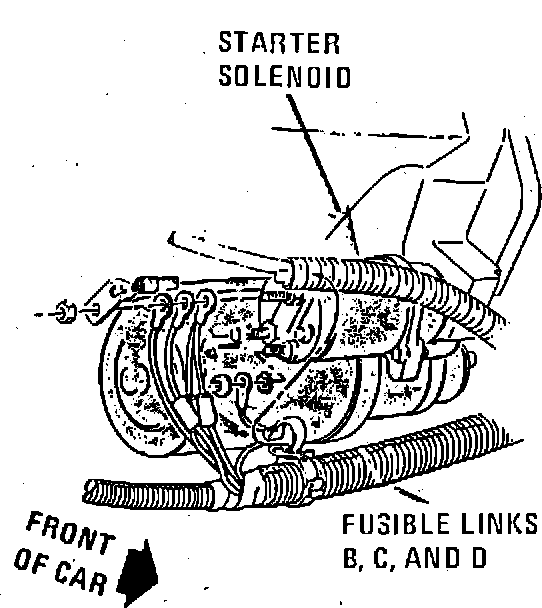

Front Of Diesel Engine.:

LH Front Of Engine

Applicable to: Electra & 98

Lower Front:

LH Front Of Engine

Applicable to: 8L Engine. 98

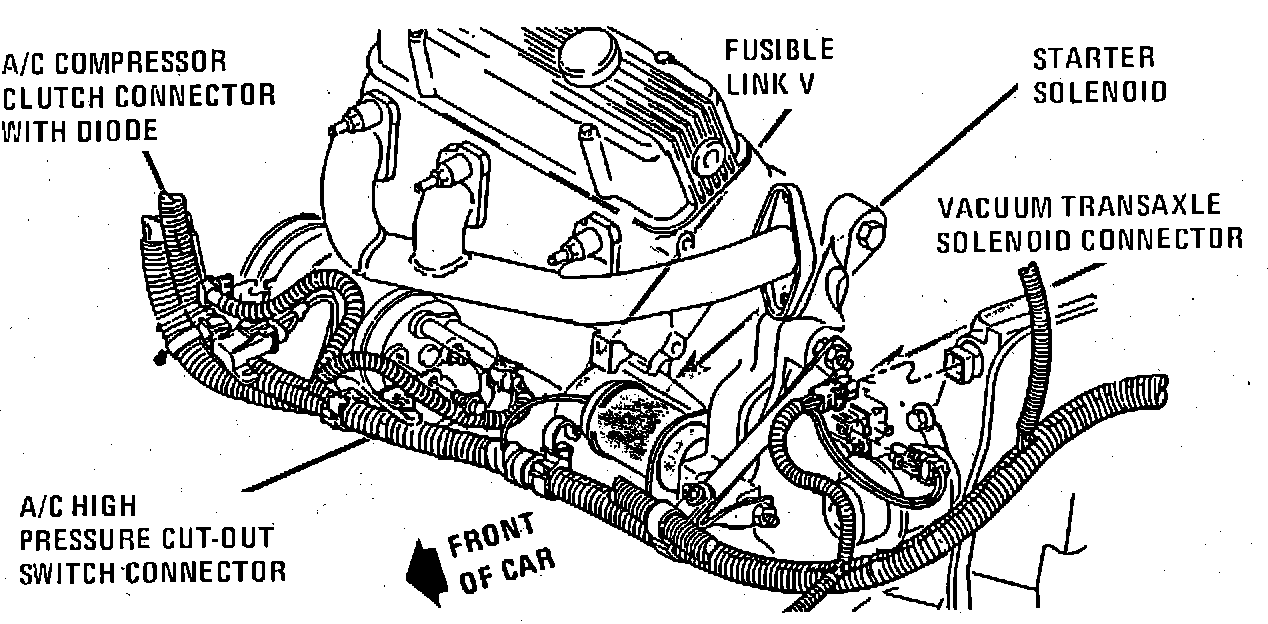

LH Front Of Engine.:

LH Front Of Engine

Applicable to: Electra & 98 w/3.0L Engine
