Home
>>
Oldsmobile
>>
1985
>>
Firenza L4-121 2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Idle Speed Control & Vehicle Data Sensors
Idle Speed Control & Vehicle Data Sensors

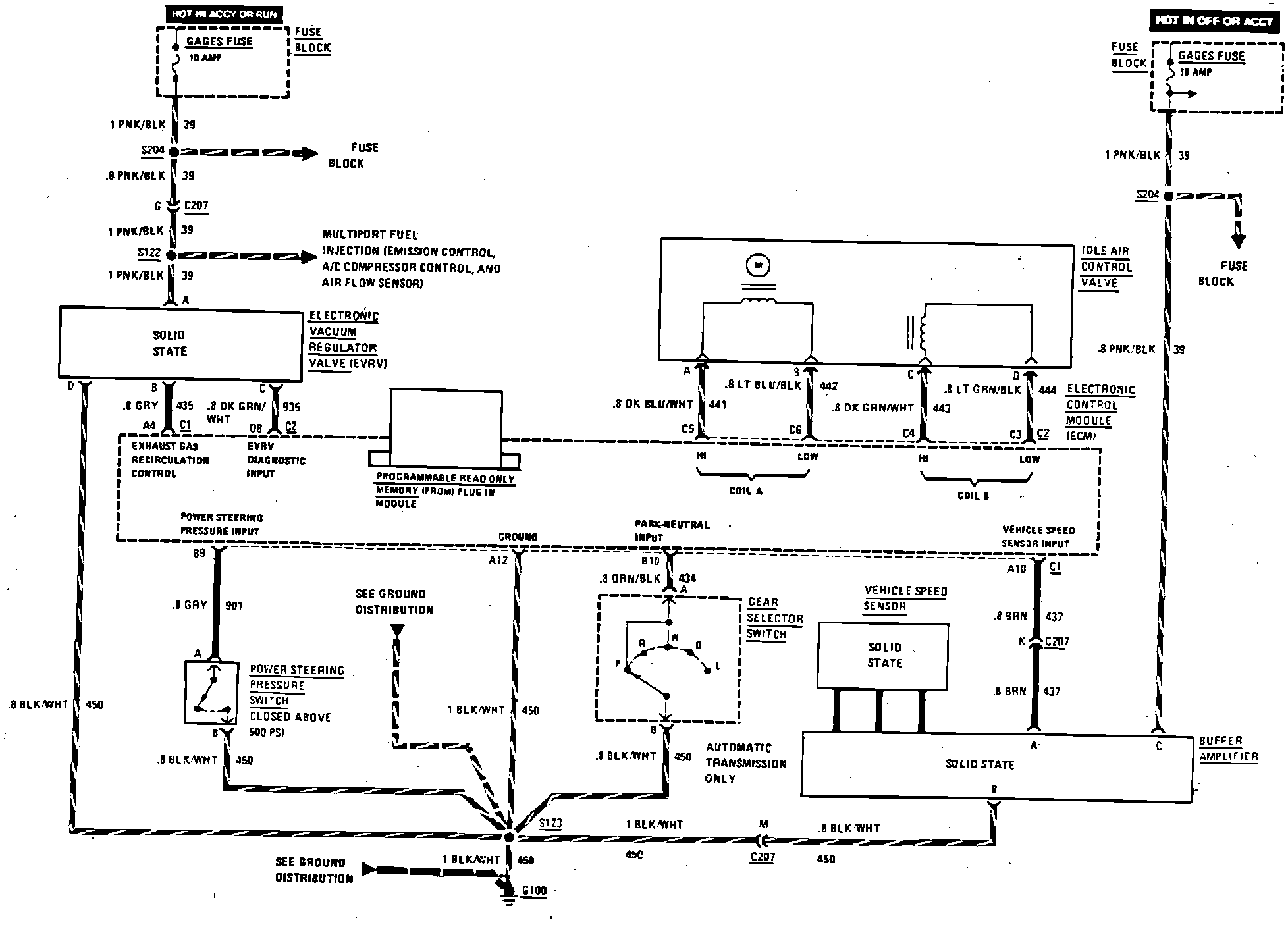

Multiport Fuel Injection (Idle Speed Control & Vehicle Data Sensors) Wiring Circuit:
