A/C - Broken Compressor Discharge Pipe
SUBJECT BROKEN AIR CONDITIONING COMPRESSOR NUMBER: 86-T-43DISCHARGE PIPE
DATE: June 20,1986
MODELS/YEARS 1985-86 FIRENZA MODELS WITH 2.0L ENGINE
SECTION: 1B

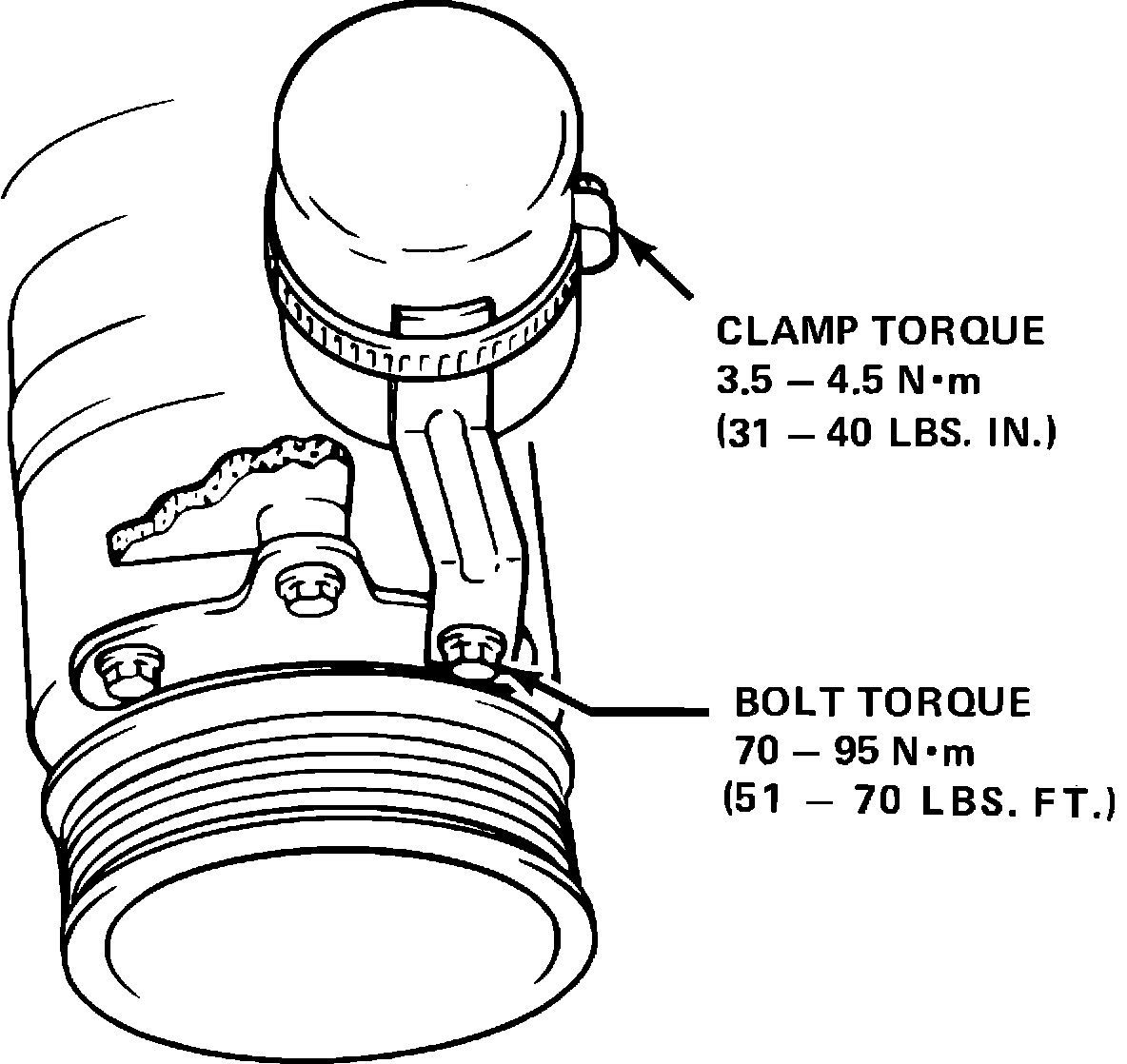

FIGURE 1:
Some 1985-86 Firenza models with 2.0L engines may experience a broken air conditioning compressor discharge pipe.. If this occurs, a bracket and clamp to support the muffler is now available to prevent reoccurence of the failure. Bracket and clamp support kit, part number 22535625, is now available from WDDGM and should be installed. The bracket can be installed by removing the compressor to bracket bolt and installing the bracket and clamp as shown in Figure 1.
Warranty Information
Labor Operation T4092
Labor Time .6 hrs.
Trouble Code 92
